10-B
Central Electronics transmitter 10-B. Production year: 1954.
Supplementary photos
Specifications


20-A

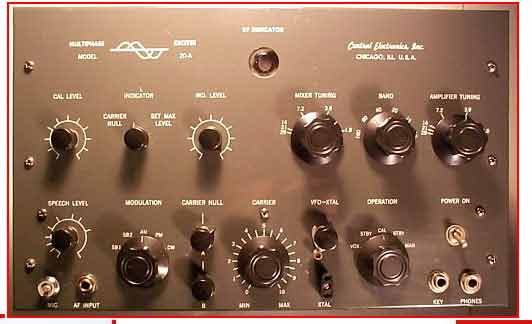

Central Electronics transmitter 20-A. The Central Electronics 20A was one of the first commercial transmitters produced for the amateur market, and helped to spur the use of SSB on the ham bands. Operates from 160M-10M, SSB/AM/CW/PM. Weight is approx. 35 lbs.
Supplementary photos


100V
Central Electronics 100V Transmitter provides SSB/DBS/CW/PM and AM/MCW/FSK operation. The broadband exciter covers 80-10 meters and operates at 100 watts.
Supplementary photos


200V
This is a Central Electronics 200V Ham Radio CW/SSB/FSK/DSB transmitter, it resembles Collins radio equpiment. This set was unique for the day, it requires no tuning of the final or other controls to use (broadband tuning). It has a built in 2" oscilloscope for monitoring various functions. Two sets of "set and forget controls" on the front panel, behind two drop down doors. Has a PTO inside, and a drum dial with fine vernier type tuning. Has VOX/PTT etc. Uses phasing method of sideband. Production year 1961. Photo Copyright 2005, Joe Veras, K9OCO. All Rights Reserved. Used With Permission. See also his web-page: http://k9oco.com
Supplementary photos


600L
Central Electronics 600L Broadband HF Linear Amplifier (extremely rare). The matching amplifier for other Central electronics or similar transmitters like the 100V and 200V or 20A, etc. Basic frequency coverage 160 meters thru 10 meters. Nominal ratings; SSB 600 watts input, CW 500 watts input, AM 300 watts. Approx. 8 watts drive required for 500 watts input. 813 final tube. Shipping weight approx. 100lbs.
Supplementary photos


DQ

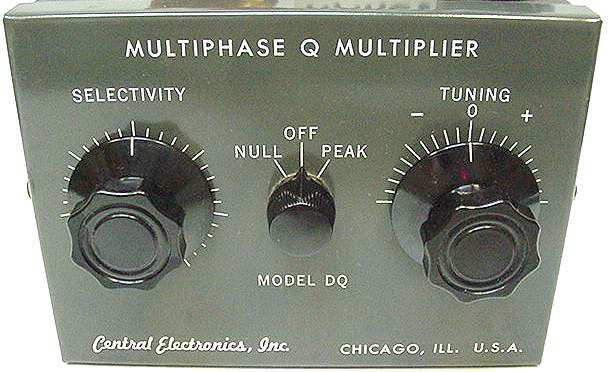

Central Electronics "DQ" Q-multiplier. This is the same Q-multiplier network that CE built into their model B Sideband slicer.
Supplementary photos
Specifications


MM-2
Central Electronics MM-2 Multiphase RF Analyzer *With “RM Adapter” installed which allows monitoring the IF envelope of a received signal. *Has internal 1KC oscillator which can sync with the display. It contains (2)-5Y3GTs, (2)-12AT7s, (2)-6AL5s, (1)-6AU6, (1)6AN8, (1)-6X4, and (1)-6EA8. *Dimensions: 14 ¼” long, 8 ¾” high, 6 ¼” wide. Weight 18 lbs. Production year 1961.
Supplementary photos


QT-1
Central Electronics QT-1 Anti Trip unit.
Specifications


458 VFO

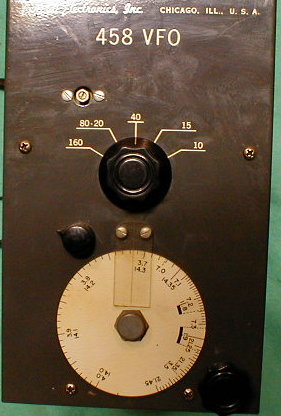

458 - Ham band VFO 160 - 10 mtr. Production year 1961.
Supplementary photos


Signal Slicer A
Central Electronics Signal Slicer model A, SSB adapter for the CE AM transmitter.
Supplementary photos
Specifications


Signal Slicer B
Central Electronics Model B Sideband slicer is the same as the model A but has a built in Q-Multiplier.
