CRX - receivers

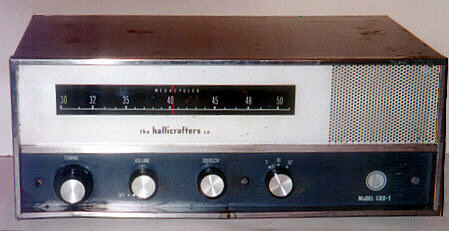

CRX-1

CRX-1 Low band dual conversion FM receiver, tunes from 30 to 50 megahertz. 9 tubes. Production Year 1962-63.

Supplementary photos qa


CRX-2

CRX-2 dual conversion FM receiver 151MHz-174MHz. IF 455kHz and 10.7MHz. 10 tubes. Production Year 1962-63. qa

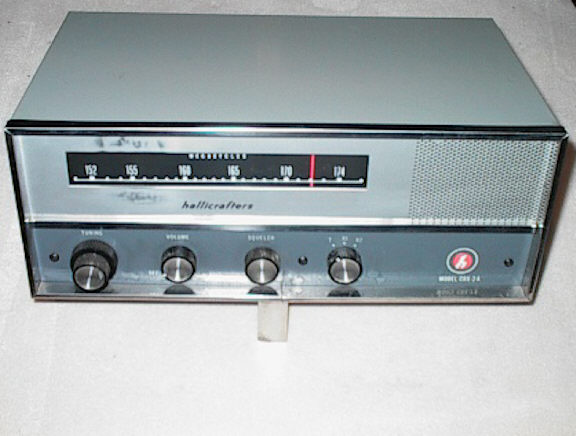

CRX-2A

CRX-2A Same features as CRX-2 but different tube setting. Production Year 1963-64.
Supplementary photos qa

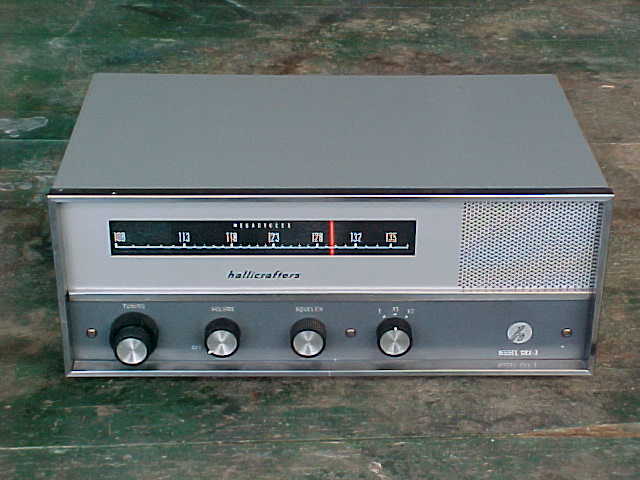

CRX-3

CRX-3 Covers the 108-136 mHz aviation band with 7 tubes.Front panel controls include illuminated slide rule dial with coarse and fine tuning, on-off volume and squelch controls and provision for two crystal-controlled frequencies. Rear chassis apron includes a slide switch and screw terminals for an external speaker. Cabinet 13½"w x 6"h x 8"d. Production Year 1962-63.
Supplementary photos qa

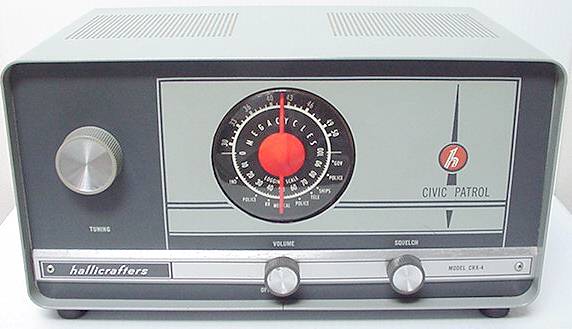

CRX-4

CRX-4 Civic Patrol FM receiver, 30-50MHz, 7 tubes. IF 10.7MHz. Production Year 1964.
Supplementary photos qa


CRX-5

CRX-5 Civic Patrol FM receiver, 152-174MHz, 8 tubes. IF 10.7MHz. Production Year 1964. qa

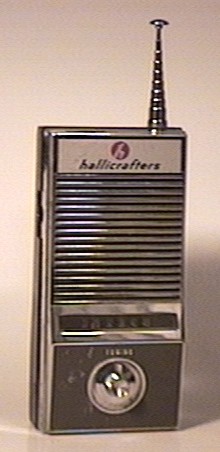

CRX-100

Hallicrafters CRX-100 Portamon, a compact hand-held solid state AM monitor receiver that covers 27 - 50 MHz band. 9 transistors. Power source is a 9 volt battery. These units were built from 1967 to 1969.

CRX-100, 101 and 102 have the same design and specifications except AM/FM mode and frequency range. qa

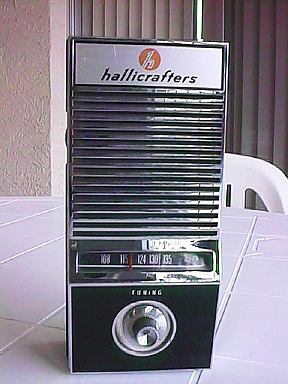

CRX-101

Hallicrafters CRX-101 Portamon, a compact hand-held solid state AM monitor receiver that covers the VHF aircraft band (108 to 135 MHz). 9 transistors. Power source is a 9 volt battery. These units were built from 1967 to 1969. qa


CRX-102

Hallicrafters CRX-102 Portamon, a compact hand-held solid state FM monitor receiver that covers 144 to 174 MHz. 9 transistors. Power source is a 9 volt battery. These units were built from 1967 to 1969. qa

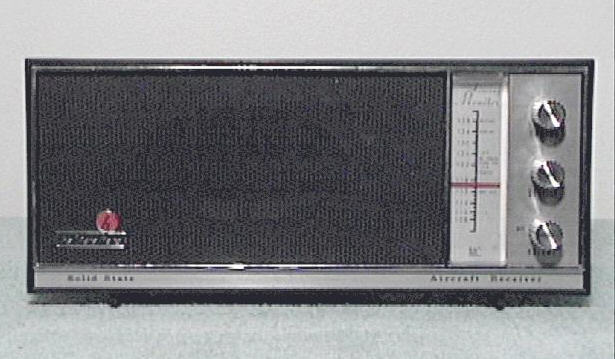

CRX-104

CRX-104 Solid state 11 transistor AM receiver "Civic Monitor", used for monitoring Civil Defense, Police, Fire and other emergency frequencies - 108-138MHz. Production Year 1967-69. qa


CRX-105

CRX-105 Solid state 11 transistor FM receiver "Civic Monitor", used for monitoring Civil Defense, Police, Fire and other emergency frequencies - 150-174MHz. Made in Japan. Production Year 1967-69. qa

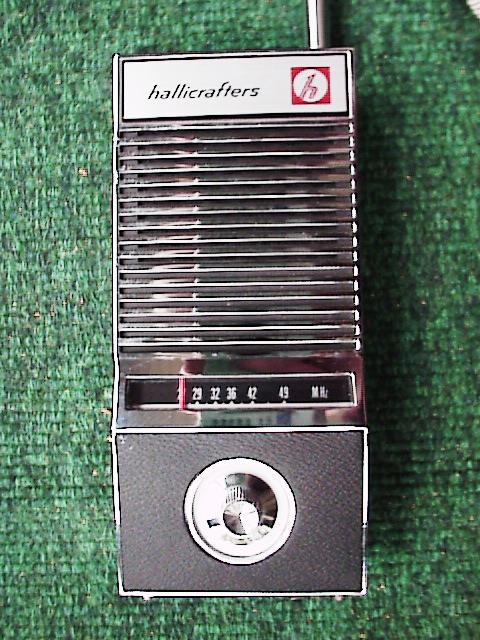

CRX-106

CRX-106 Solid state 12 transistor AM receiver "Portamon". 27-50MHz. Made in Japan. Production Year 1969-70. qa


CRX-107

CRX-107 Solid state 12 transistor FM receiver "Portamon". 144 - 174MHz. Made in Japan. Production Year 1969-70. qa
