CHANGE DISPLAY COLOR

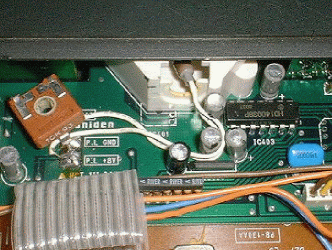

Remove top cover of the radio. Locate the 2 white wires running into the display light housing. Remove the light and remove the green cover on the light. Put the light back into the housing, you can wedge the wires in between the 3 electrolytic capacitors to hold the light in place. Reassemble the radio and now your radio will have a light brown display like the big rigs.






ADD VOX


The VOX circuit can be obtained from RASON.org You can wire the TX/RX switch on the front of the radio to 12 volts to turn the VOX on and off.


Microphone wiring



Microphone connector on radio



Pin 1 - Microphone input

* Pin 2 - Push to talk

* Pin 3 - Scan down

* Pin 4 - Scan up

Pin 5 - 8 Volts

Pin 6 - Audio out

Pin 7 - Microphone Ground

Pin 8 - Ground



* NOTE - Connect these pins to ground for function to work
