OPEN THE RIT

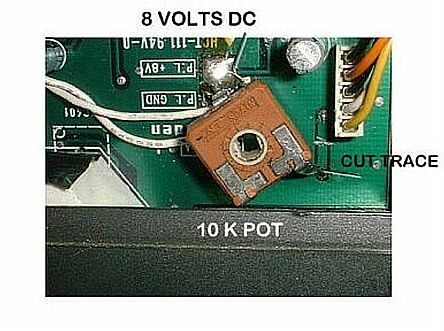

THIS MOD WILL ALLOW THE RIT TO WORK ON TRANSMIT AS WELL AS RECEIVE AT THE SAME TIME.Remove top cover of the radio. Locate 2 white wires comeing from the display light houseing going down to the circuit board. Locate the solder pad marked +8 Volts. Now look to the right and you will see a white plastic wire plug in socket. Next to the socket you will find a 1 inch trace with solder points on each end that runs front to back direction of the radio. Hook up a DC voltmeter to this trace and write down the reading. Now turn the radio off and cut the trace in half. Obtain a 10K potentiometer and solder one leg to the solder pad marked +8 volts. Solder the center leg of the pot to the part of the trace closest to the front of the radio. Turn the radio on, hook up your voltmeter, positive lead on the leg soldered to the cut trace and negative to ground. Adjust the pot for the same volt reading you wrote down earlier. This puts the radio back on frequency. Reassemble the radio and your RIT will now tune 1 1/2 KHZ to each side and track the frequency on transmit.
