NEC2 plot of 2mModGndP.sum

MHz	ohms		mw	SWR
144.000	51.8	-0.3i	9.648	1:1.04
145.000	53.0	+5.6i	9.337	1:1.13
146.000	54.1	+11.5i	8.833	1:1.26
147.000	55.3	+16.9i	8.265	1:1.40
148.000	56.6	+22.9i	7.592	1:1.56
432.000	39.4	-87.4i	2.141	1:5.76
434.000	39.6	-76.1i	2.691	1:4.77
436.000	40.0	-64.7i	3.455	1:3.89
438.000	40.6	-53.3i	4.521	1:3.12
440.000	41.4	-41.9i	5.970	1:2.48
442.000	42.4	-30.4i	7.790	1:1.95
444.000	43.6	-18.9i	9.660	1:1.53
446.000	45.0	-7.3i	10.829	1:1.20
448.000	46.6	+4.4i	10.629	1:1.12
450.000	48.5	+16.1i	9.288	1:1.39

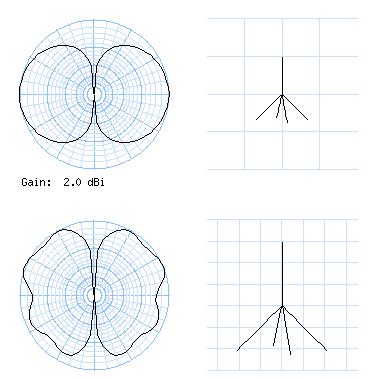

MHz dBi dBd F/B ohms
146.000 1.96 -0.18 - 54.1+11.5i

445.000 1.77 -0.37 - 44.3-13.1i

CM
CM           2M Quarter-wave Ground-plane
CM		 (2m/440 compromise)
CM
CE345678-1-2345678-2-2345678-3-2345678-4-2345678-5-2345678-6-2345678-7-2345678-8
GW  1   16    0.      0.         0.0       0.        0.0      19.25     .00808
GW  2    8    0.      0.         0.0      13.594     0.0     -13.600    .00808
GW  3    8    0.      0.         0.0       0.0     -13.594   -13.600    .00808
GW  4    8    0.      0.         0.0     -13.594     0.0     -13.600    .00808
GW  5    8    0.      0.         0.0       0.0      13.594   -13.600    .00808
GS  0    0  0.0258
GE
EX  5    0    1    0  1.
FR  0    5    0    0  144.      1.0
XQ
FR  0   10    0    0  432.      2.0
XQ
FR  0    1    0    0  146.      1.0
RP  0   73    1  111  0.        0.        5.        90.
FR  0    1    0    0  445.      1.0
RP  0   73    1  111  0.        0.        5.        90.
EN
