|Ham Radio and related projects - Click on thumbnails for larger image|
|KM5PO/r activates 4 grids in First Annual HSCW contest. Click for details.||View from above KM5PO/4 during the SVHF Technical Conference in Atlanta, GA. April 3/4. Click for details.|

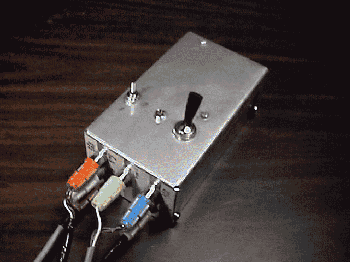

|HSCW Portable operation March 15, 1998 from EM32. Click here for details and many more photos.||HSCW Interface box. Adds VOX simulation to your transciever. Pulls the PTT line whenever audio is present at mike jack input!|
|HSCW Portable KM5PO/5 March 28, 1998 from EM33. Click here for details and many more photos.||Inside the VOX box. Series caps, 9V batt, Perf board for VOX circuit. Schematic available: Part 1 and Part2|

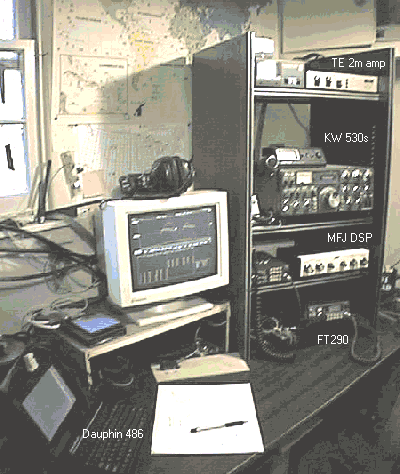

|The Radio room in it's usual cluttered mess.||Antennas. Some HF antennas not shown.|
|Hamcomm unit. Interfaces transceiver I/O audio to computer via serial port.||Use Hamcomm for RTTY, AMTOR, SSTV, Long term recording. Has CW decode.|

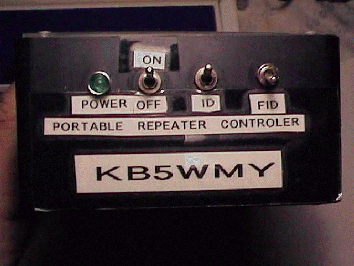

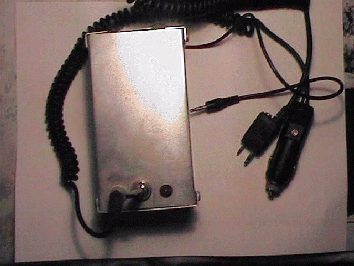

|KB5WMY HT repeater controller. Very low cost. Very cool.||Early KB5WMY repeater. Uses strictly audio and two HT's.|

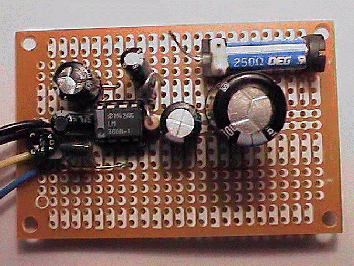

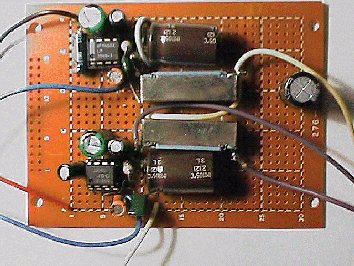

|One VOX/repeater controller.See above for schematic.||A twin VOX/repeater controller. FULL REMOTE LINK via UHF to your shack.|
|KM5PO Personal page and photo gallery|
