R-2000
Instruction Manual
Kenwood R-2000
Instruction Manual
This
is a 4.3 Meg pdf File. If you don't have the Adobe Acrobat
Reader, you won't be able to view this file. Download the
Adobe
Acrobat Reader Here.
Alternative Option:
Individual Pages in jpg
Format

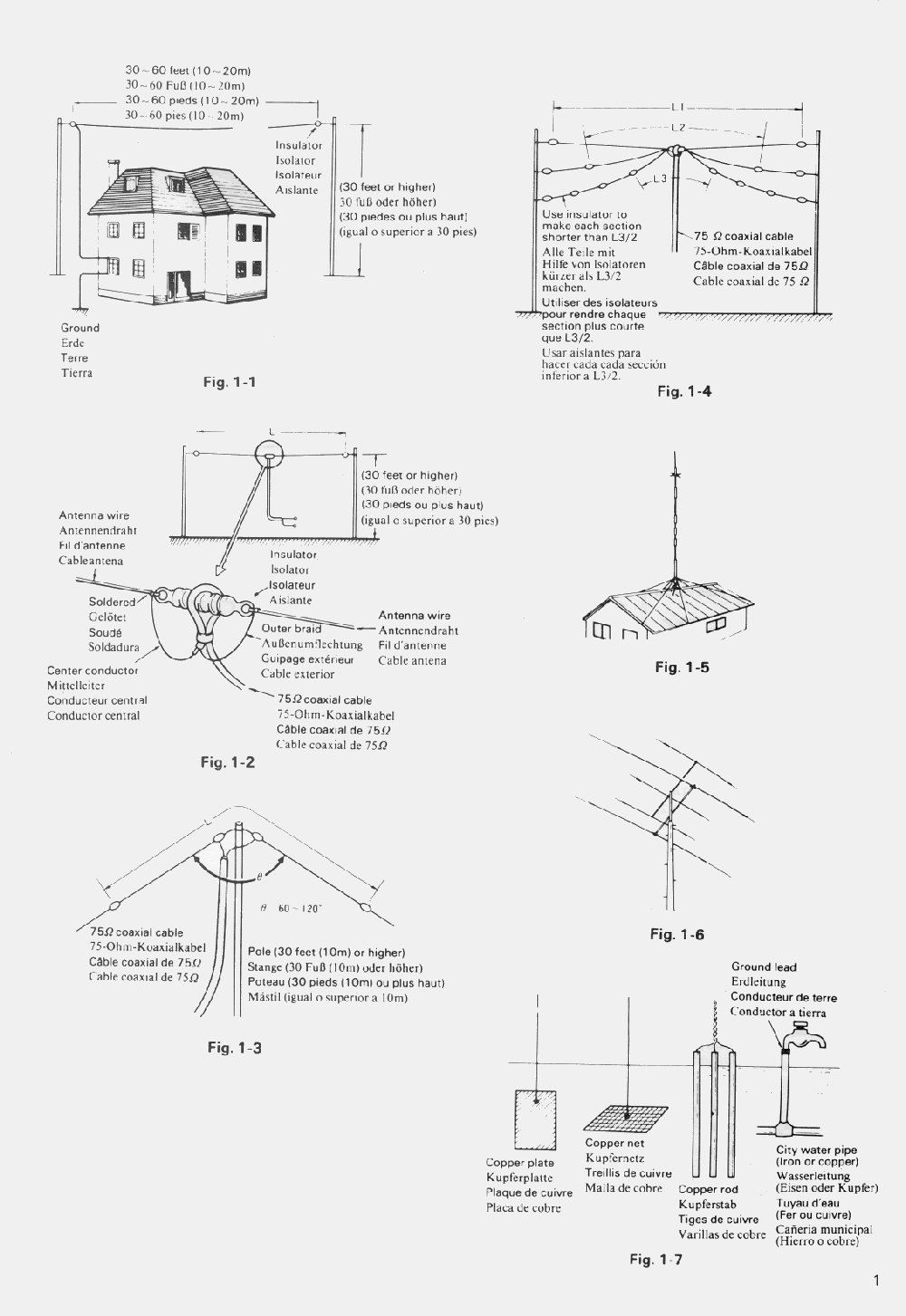

Antenna
and Grounding Configurations
Figures 1-1, 1-2, 1-3,
1-4, 1-5, 1-6 and 1-7
Interconnections
Figure 1-8

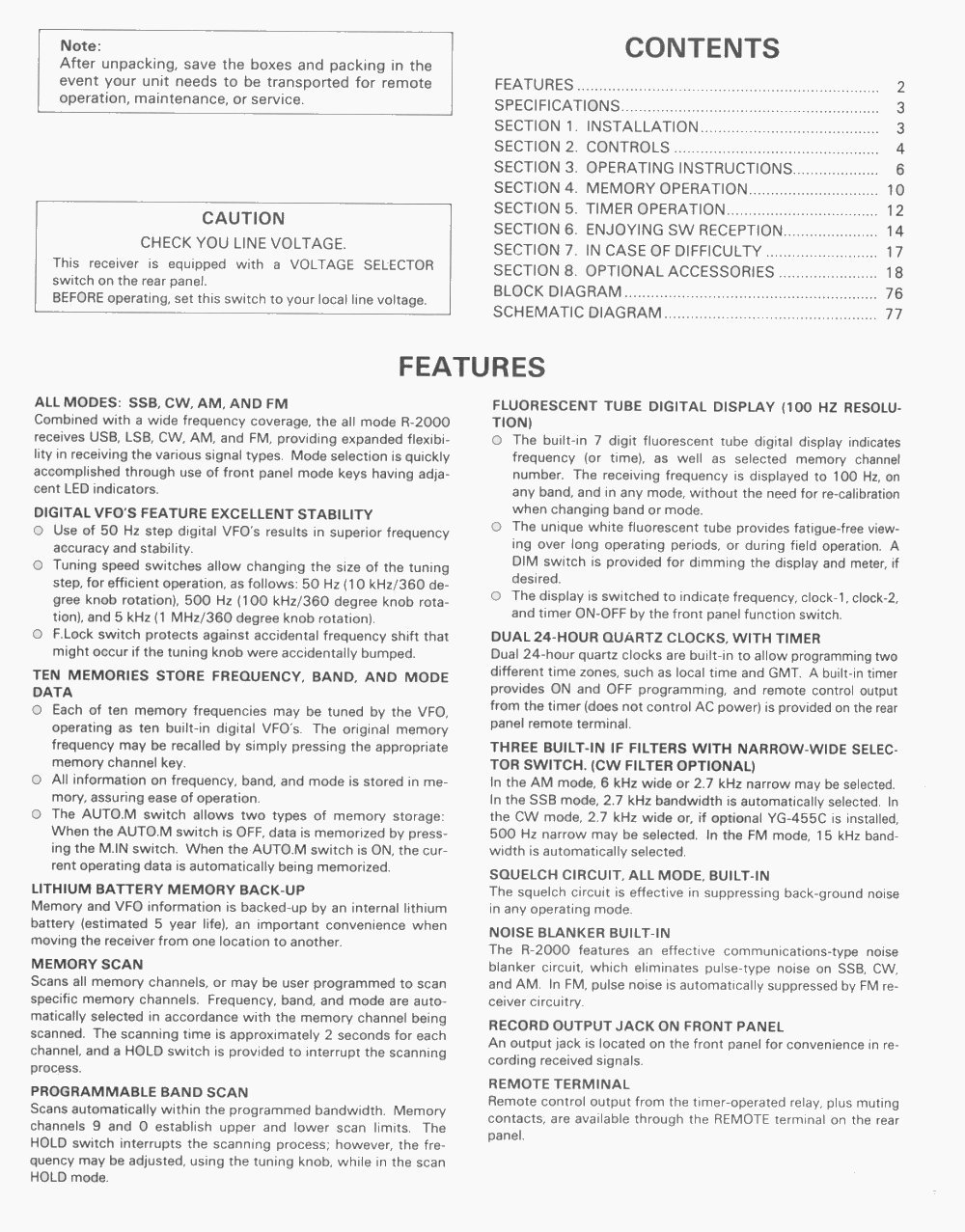

Contents
and Features
All Modes: SSB, CW, AM
and FM/Digital VFOs/Ten Memories/Lithium Battery/Memory
Scan/Programmable
Scan/Fluorescent Display/Dual 24 Hour Clocks/Three IF
Filters/Squelch/Noise
Blanker/Record Output/Remote Terminal

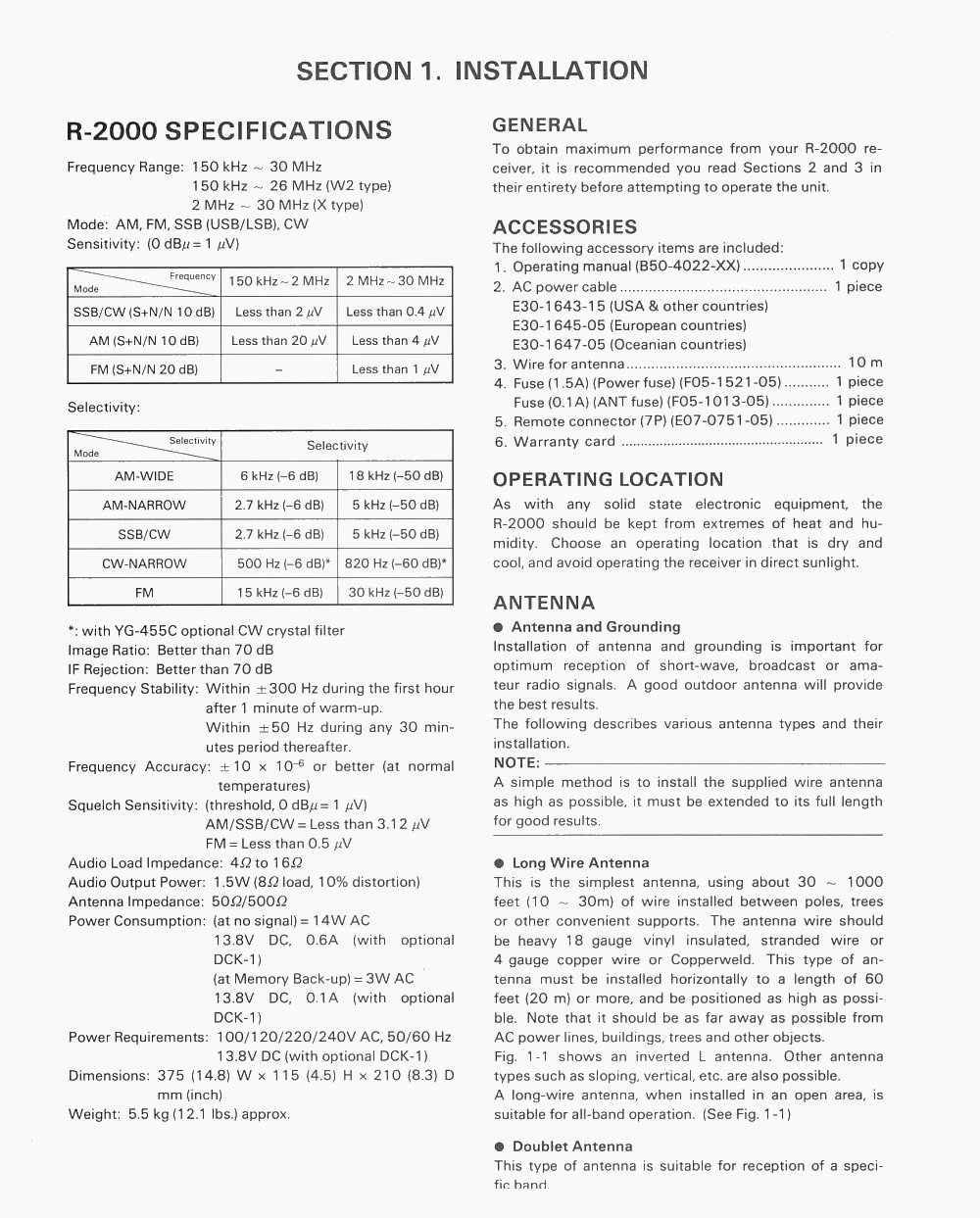

SECTION 1 - INSTALLATION
Specifications
1
General/Accessories/Operating
Location/Antenna
Specifications
2

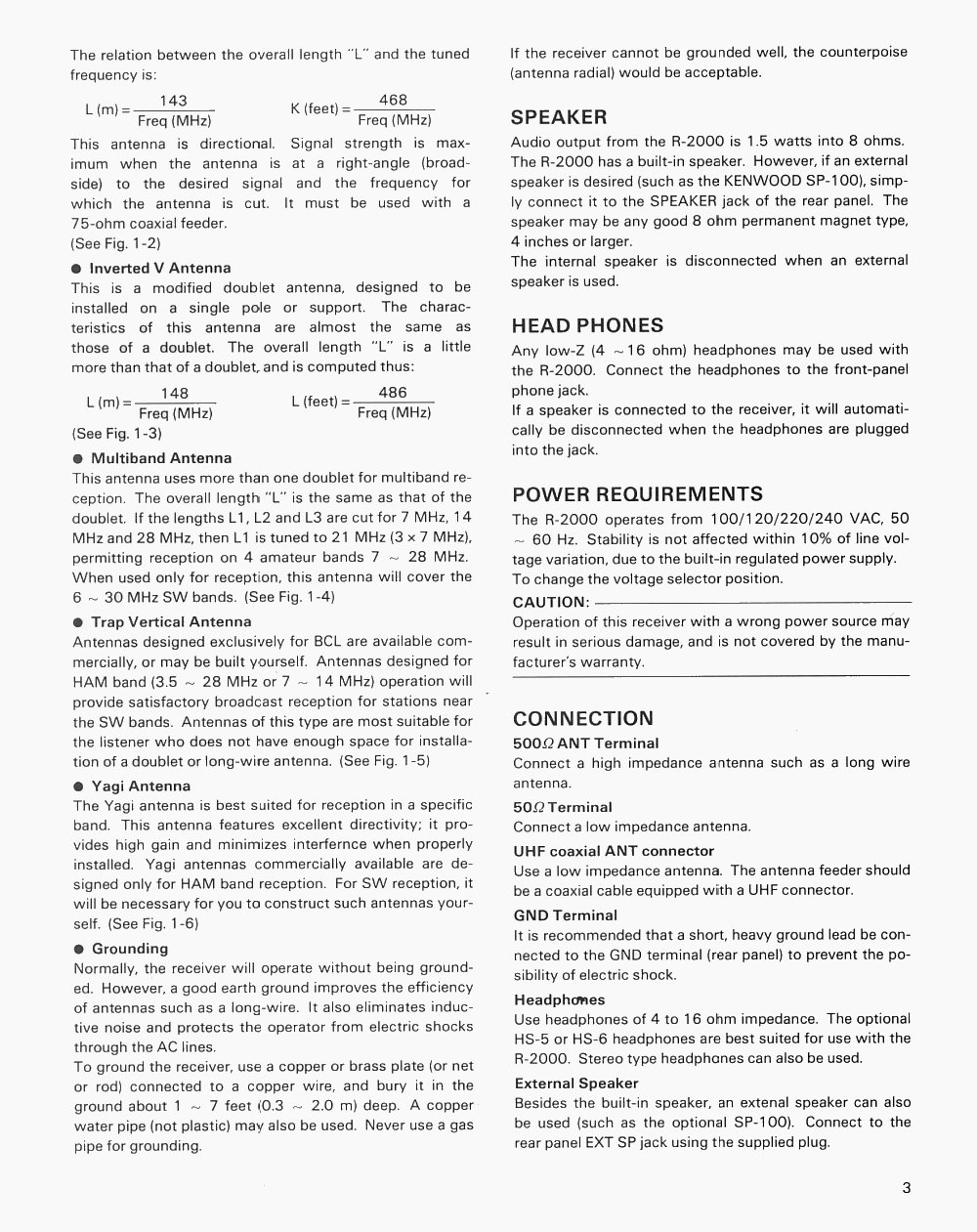

Speaker/Headphones/Power
Requirements/Connection

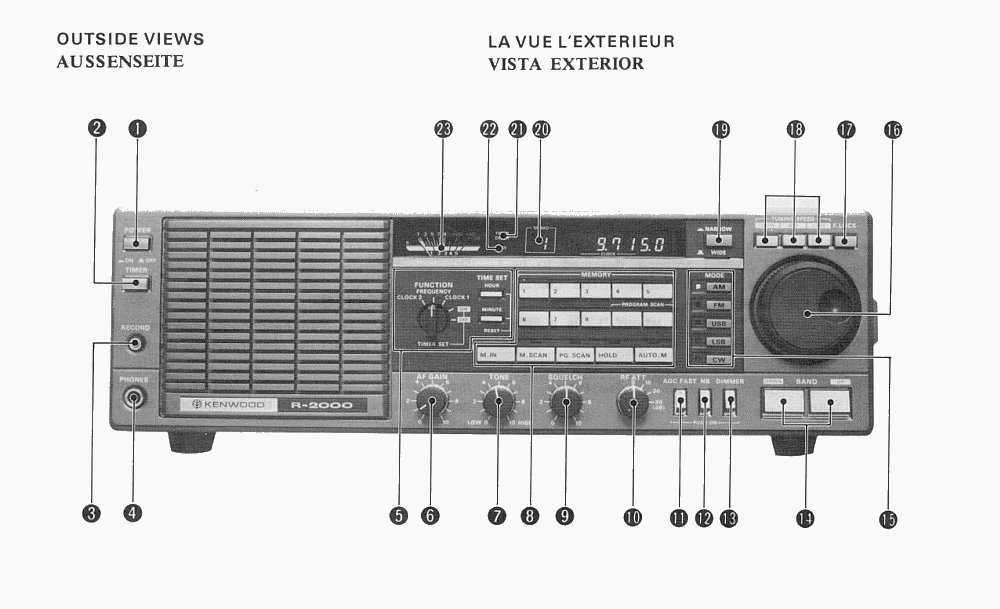

SECTION 2 - CONTROLS
Controls
1
Descriptions
Controls
2
Descriptions Cont./Beep
Level Setting

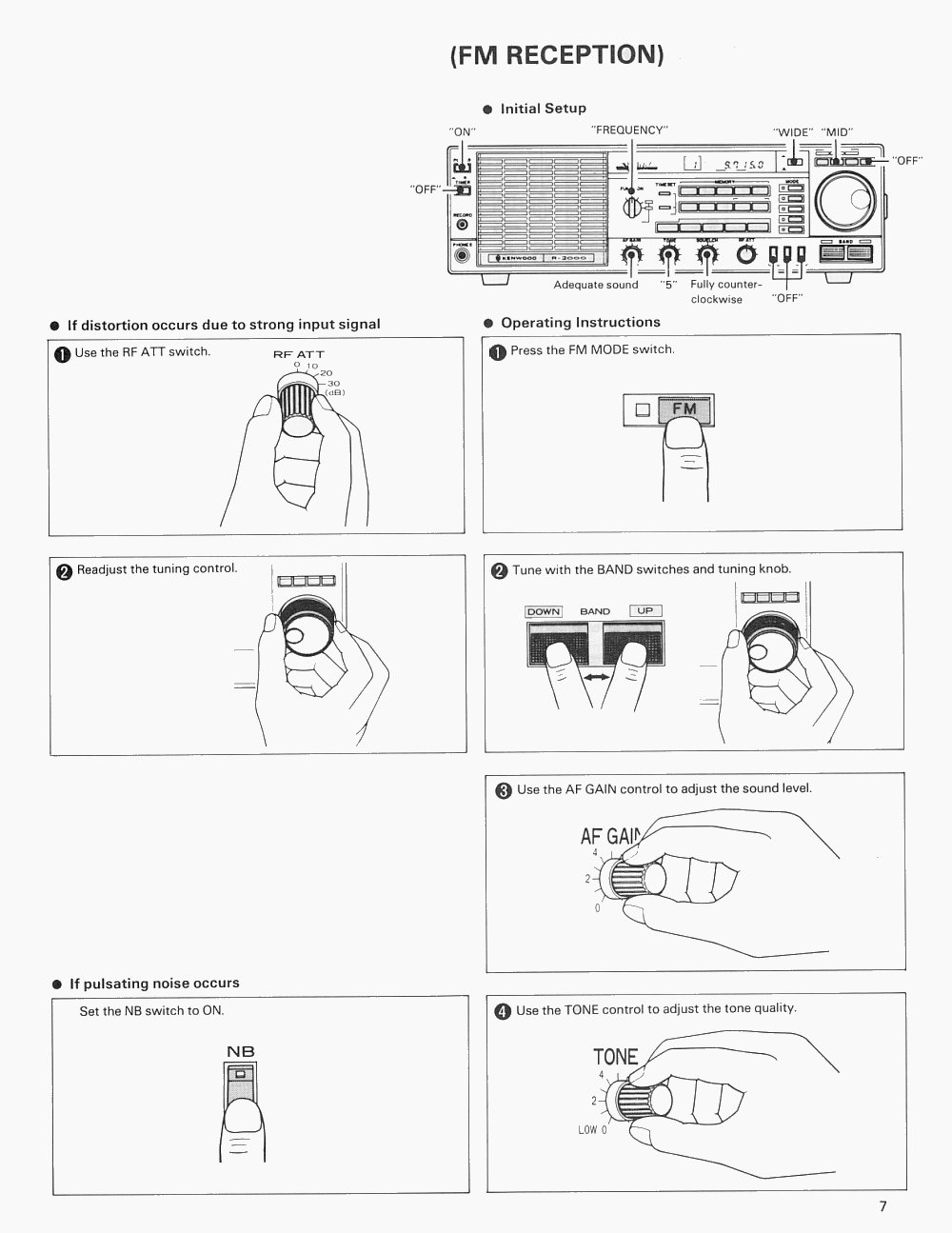

SECTION 3 - OPERATING INSTRUCTION

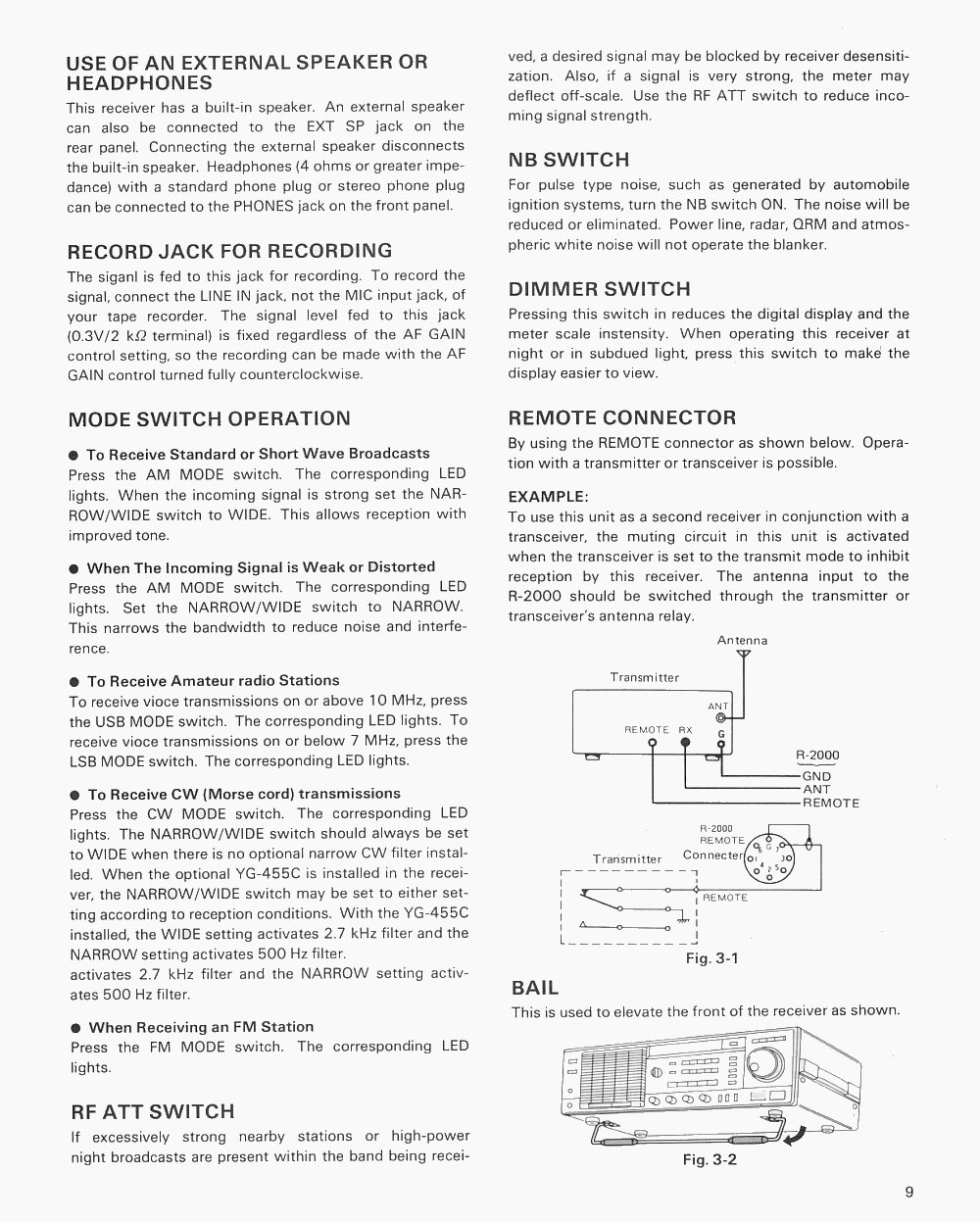

Single Sideband/Carrier Wave Reception
SSB/CW
Continued
Use of Ext Speakers or
Headphones/Record Jack/Mode Switch/RF ATT Switch/NB Switch/Dimmer
Switch/Remote
Connector: Figure 3-1 and 3-2

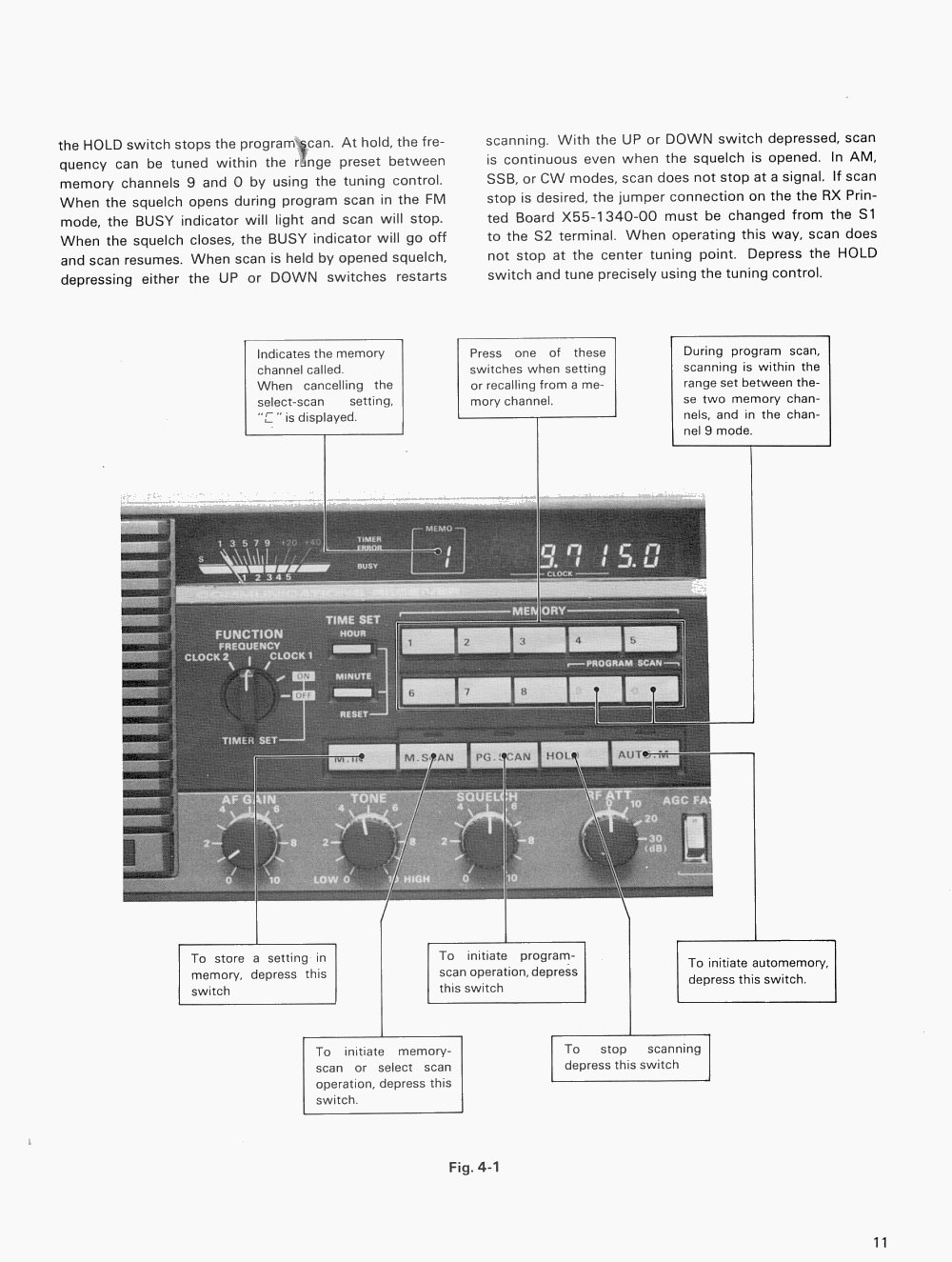

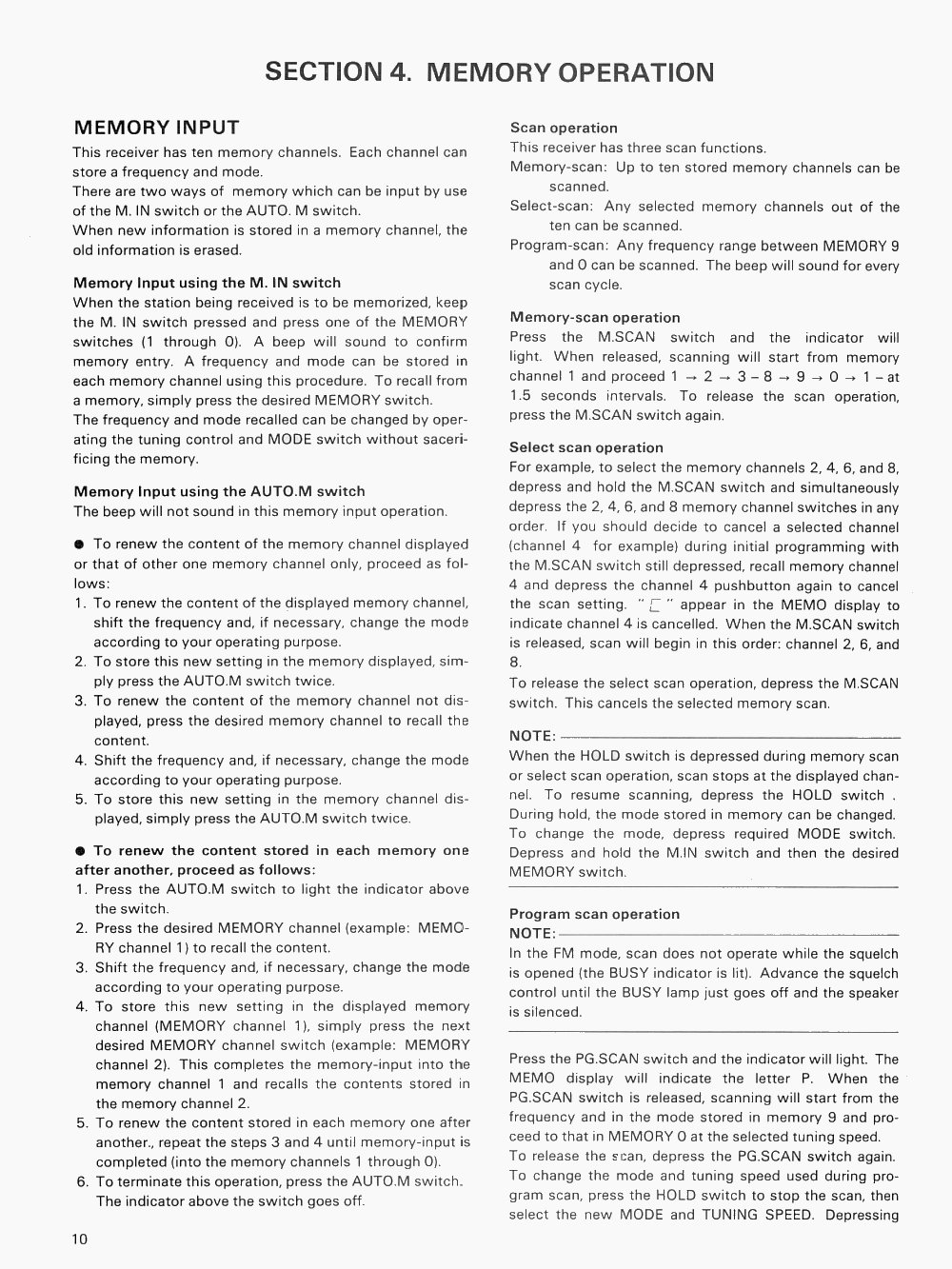

SECTION 4 - MEMORY OPERATION
Memory
Input 2
Figure 4-1

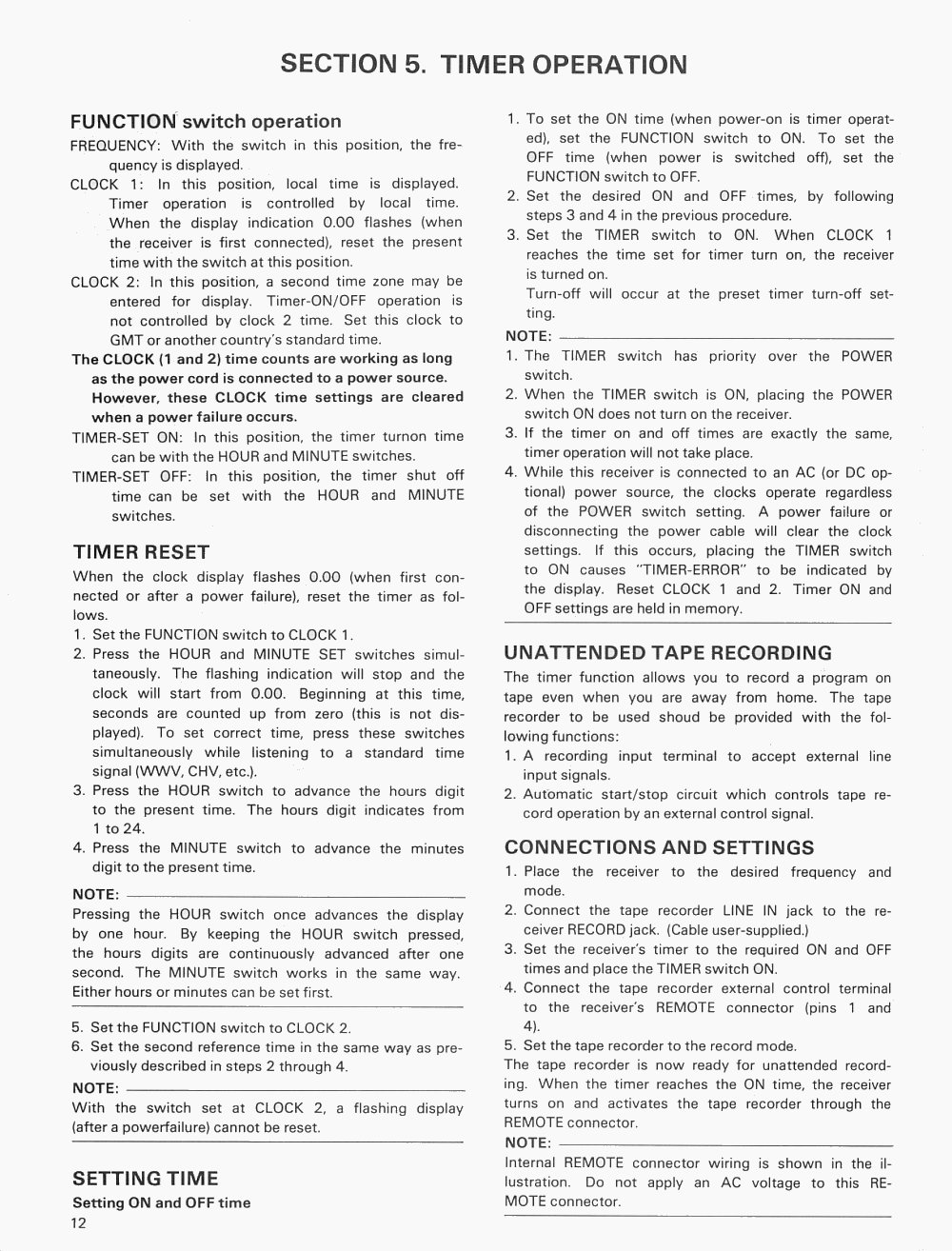

SECTION 5 - TIMER OPERATION
Page
1
Function Switch
Operation/Timer
Reset/Setting Time/Unattended Tape Recording/Connections and Settings
Page
2
Figures 5-1 and 5-2
SECTION 6 - ENJOYING SW RECEPTION
Page
1
Propagation/Freq
Distribution
in the Broadcast and Amateur Bands
Page
2
Figure 6-1: Radio Wave
Propagation Chart
Page
3
Figure 6-2: Radio
Frequency

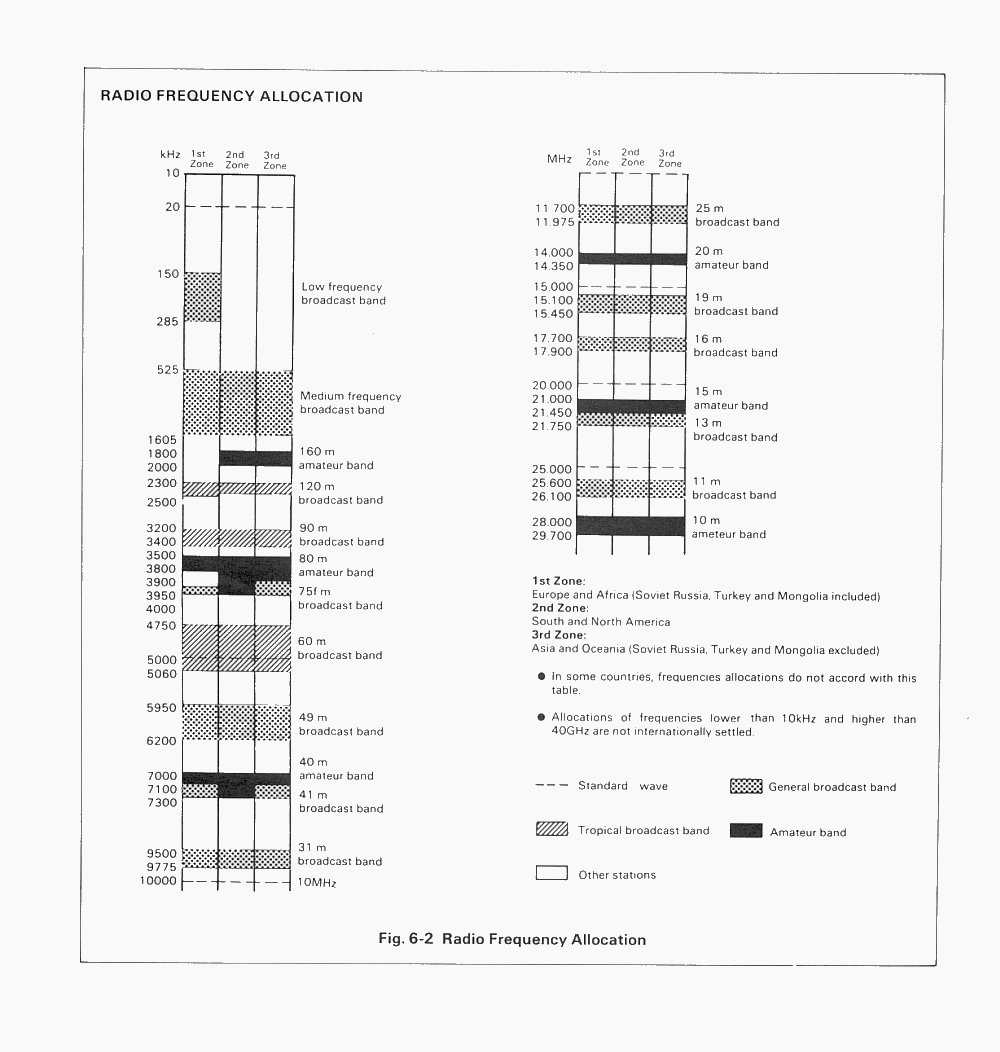

Allocation Chart

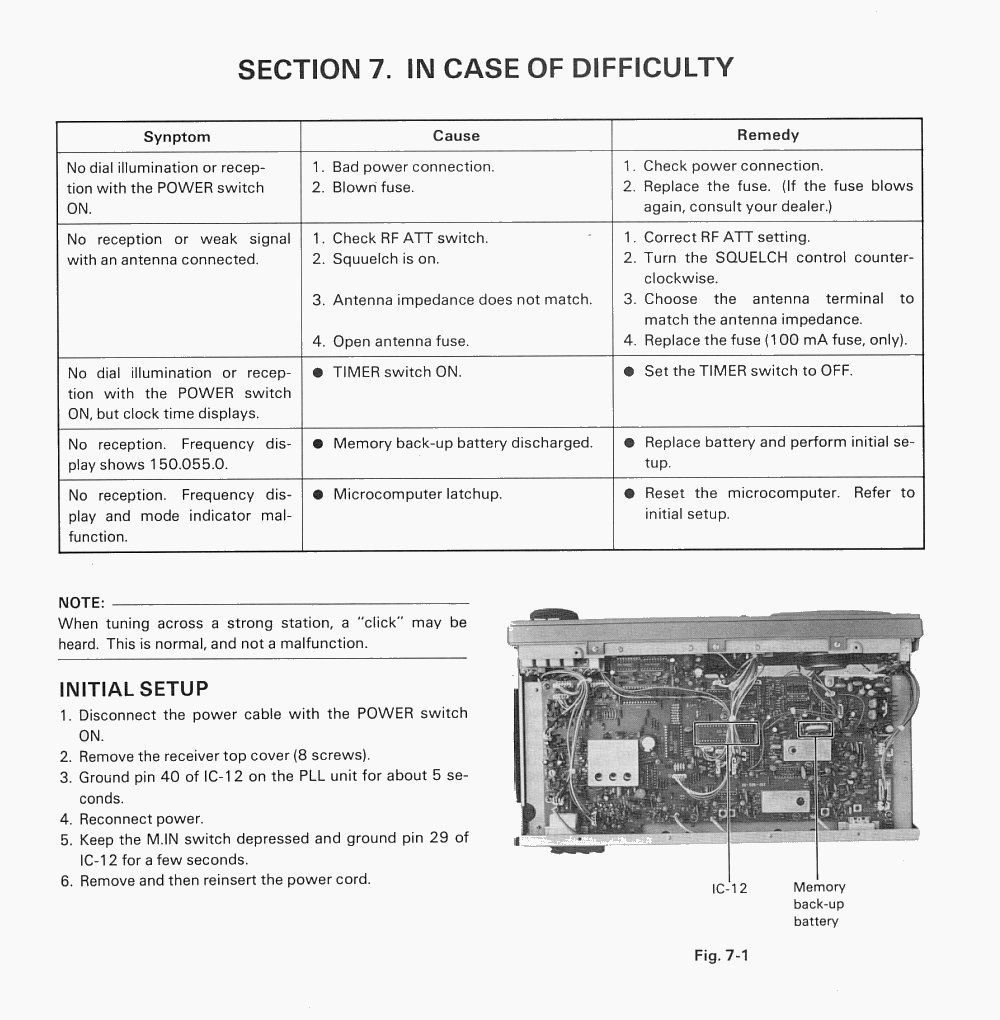

SECTION 7 - IN CASE OF DIFFICULTY
Page
1
Troubleshooting
Chart/Figure
7-1: Initial Setup

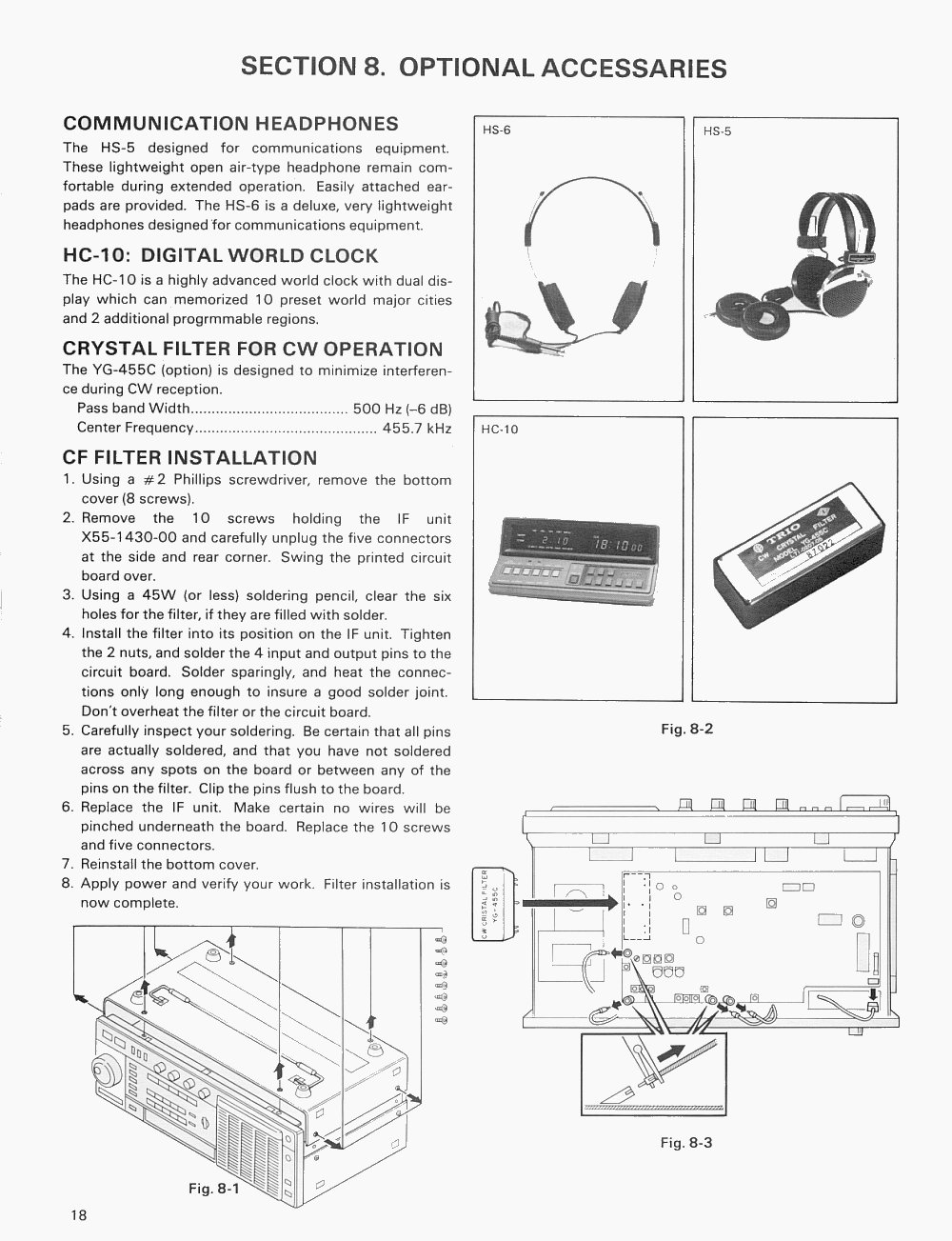

SECTION 8 - OPTIONAL ACCESSORIES
Page
1
Communication
Headphones/HC-10:
Digital World Clock/Crystal Filter for CW Operation/CF Filter
Installation/Figures
8-1, 8-2 and 8-3
