ELEMENT LENGTH (in.) SPAC. TO REF. (in.) ELE. DIA. (in.) Reflector 6.6875 0 0.25000 Driven 6.3125 2.5000 0.25000 Director 1 5.9375 5.0000 0.25000

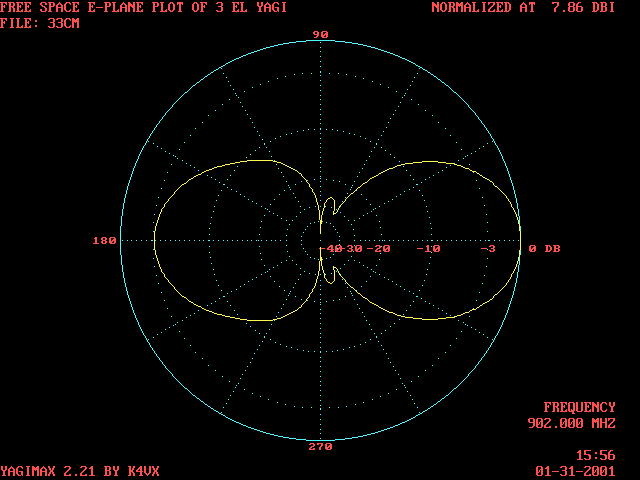

FREQ (mHz) GAIN (dBi) F/B (dB) IMPEDANCE (ohms) VSWR 902.000 7.86 3.14 11.5+j68.77 1.00 902.591 7.81 3.07 11.62+j69.48 1.06 903.182 7.75 3.00 11.74+j70.19 1.12 903.773 7.69 2.93 11.86+j70.90 1.19 904.364 7.64 2.86 11.99+j71.61 1.26 904.955 7.58 2.79 12.12+j72.31 1.33 905.546 7.52 2.72 12.25+j73.03 1.40 906.137 7.47 2.65 12.39+j73.75 1.48 906.728 7.41 2.59 12.52+j74.45 1.56 907.319 7.35 2.52 12.67+j75.17 1.64 907.910 7.29 2.46 12.81+j75.89 1.73 908.501 7.23 2.39 12.96+j76.59 1.82 909.092 7.18 2.33 13.11+j77.31 1.91 909.683 7.12 2.27 13.26+j78.03 2.01 910.274 7.06 2.20 13.42+j78.73 2.10 910.865 7.00 2.14 13.58+j79.45 2.20 911.456 6.94 2.08 13.74+j80.17 2.30 912.047 6.88 2.02 13.9+j80.89 2.41 912.638 6.82 1.96 14.07+j81.59 2.51 913.229 6.76 1.91 14.24+j82.31 2.62 913.820 6.71 1.85 14.42+j83.04 2.73 914.411 6.65 1.79 14.6+j83.75 2.84 915.002 6.59 1.73 14.78+j84.47 2.96 915.593 6.53 1.68 14.96+j85.19 3.07 916.184 6.47 1.62 15.14+j85.90 3.19 916.775 6.41 1.57 15.33+j86.62 3.31 917.366 6.36 1.52 15.53+j87.33 3.43 917.957 6.30 1.46 15.72+j88.05 3.55 918.548 6.24 1.41 15.92+j88.77 3.68 919.139 6.18 1.36 16.12+j89.48 3.80 919.730 6.13 1.31 16.32+j90.2 3.93 920.321 6.07 1.26 16.53+j90.91 4.05 920.912 6.01 1.21 16.74+j91.63 4.18 921.503 5.96 1.16 16.95+j92.34 4.31 922.094 5.90 1.11 17.16+j93.06 4.43 922.685 5.84 1.07 17.38+j93.77 4.56 923.276 5.79 1.02 17.6+j94.48 4.69 923.867 5.73 0.97 17.83+j95.2 4.82 924.458 5.68 0.93 18.05+j95.92 4.95 925.049 5.62 0.88 18.28+j96.63 5.08 925.640 5.57 0.84 18.51+j97.34 5.22 926.231 5.52 0.79 18.75+j98.06 5.35 926.822 5.46 0.75 18.99+j98.77 5.48 927.413 5.41 0.71 19.23+j99.48 5.61 928.004 5.36 0.67 19.47+j100.19 5.74
