ELEMENT LENGTH (in.) SPAC. TO REF. (in.) ELE. DIA. (in.) Reflector 5.6563 0 0.25000 Driven 4.4063 1.7500 0.25000 Director 1 4.1250 3.5000 0.25000

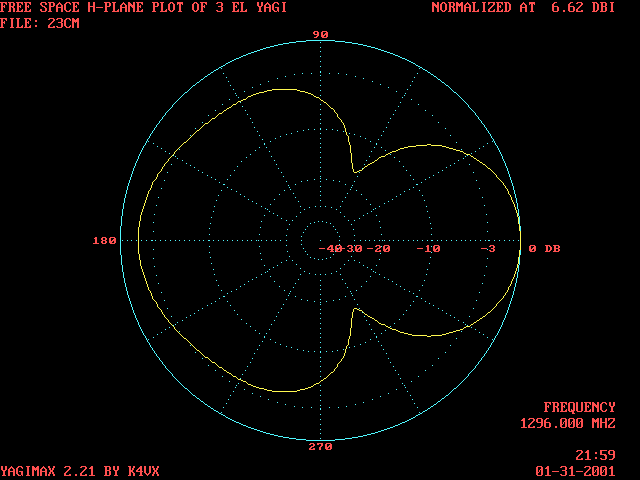

FREQ (mHz) GAIN (dBi) F/B (dB) IMPEDANCE (ohms) VSWR 1240.000 8.75 5.76 12.39+j32.09 9.77 1241.364 8.72 5.63 12.37+j32.96 9.44 1242.728 8.70 5.51 12.36+j33.84 9.10 1244.092 8.67 5.39 12.35+j34.72 8.77 1245.456 8.65 5.27 12.35+j35.61 8.45 1246.820 8.62 5.15 12.35+j36.5 8.12 1248.184 8.59 5.03 12.36+j37.39 7.80 1249.548 8.56 4.91 12.37+j38.29 7.48 1250.912 8.52 4.80 12.39+j39.19 7.17 1252.276 8.48 4.68 12.42+j40.09 6.86 1253.640 8.45 4.57 12.45+j41.00 6.56 1255.004 8.41 4.45 12.48+j41.91 6.26 1256.368 8.37 4.34 12.52+j42.82 5.97 1257.732 8.32 4.23 12.56+j43.74 5.69 1259.096 8.28 4.12 12.61+j44.66 5.41 1260.460 8.23 4.01 12.67+j45.58 5.14 1261.824 8.19 3.90 12.73+j46.5 4.88 1263.188 8.14 3.80 12.8+j47.43 4.62 1264.552 8.09 3.69 12.87+j48.36 4.37 1265.916 8.04 3.59 12.94+j49.29 4.14 1267.280 7.98 3.48 13.03+j50.22 3.91 1268.644 7.93 3.38 13.12+j51.16 3.69 1270.008 7.87 3.28 13.21+j52.09 3.47 1271.372 7.81 3.18 13.31+j53.03 3.27 1272.736 7.75 3.08 13.41+j53.98 3.07 1274.100 7.69 2.98 13.52+j54.92 2.89 1275.464 7.63 2.88 13.64+j55.86 2.71 1276.828 7.57 2.79 13.76+j56.81 2.54 1278.192 7.51 2.69 13.89+j57.76 2.38 1279.556 7.44 2.60 14.02+j58.71 2.23 1280.920 7.38 2.51 14.16+j59.66 2.09 1282.284 7.31 2.42 14.31+j60.61 1.96 1283.648 7.25 2.33 14.46+j61.57 1.83 1285.012 7.18 2.24 14.61+j62.52 1.71 1286.376 7.11 2.15 14.77+j63.48 1.60 1287.740 7.04 2.06 14.94+j64.44 1.49 1289.104 6.97 1.98 15.11+j65.40 1.40 1290.468 6.90 1.90 15.29+j66.34 1.31 1291.832 6.83 1.81 15.47+j67.31 1.22 1293.196 6.76 1.73 15.66+j68.28 1.14 1294.560 6.69 1.65 15.85+j69.23 1.07 1295.924 6.62 1.57 16.05+j70.2 1.00 1297.288 6.55 1.49 16.26+j71.16 1.06 1298.652 6.48 1.42 16.47+j72.13 1.12 1300.016 6.40 1.34 16.69+j73.09 1.18
