MY CITADEL INSTALLATION



Here you can see a 386 Type 1 installed in KC5JGV's van. Note the Kenwood TM-D700A control head placed on top of the system. In the background you can see the Garmin GPS-III+ and a standard keyboard in the front.



This s a close-up of the 386T1 installation. Note that the screen is very visible during the daylight hours and from and angle. The screen is an electroluminous system. It is very bright during the day and night!

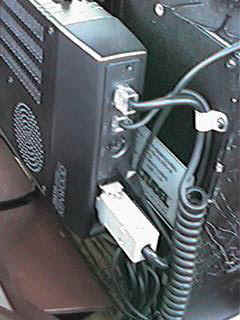

The TM-D700A in installed directly to the back of the 386T1 Computer.



And finally, here you can see the installation at night. During the night hours, KC5JGV turns off the computer and runs APRS on the TM-D700A.
