THE ST. LOUIS VERTICAL
By Dave Gauding, NF0R




The St. Louis Vertical (SLV) offers portable enthusiasts an easy-to-build,

MATERIALS

20' Collapsible Fiberglass fishing Pole
SouthBend Model SD-20

12" of 1/25" Hardwood Dowel

10" Heavy duty Gutter Spike

Vinyl Plastic Electrical Tape

5 Small Alligator Clips

1 Small Solder Lug

1 Small Hollow rubber Ball

1 Medium Fishing Swivel

12" Light Monofilament Fishing Line

10" #8 Bare Copper Wire

300 ohm In-line Plug and Socket Set
(RS15-1198)

130' of 300 Ohm Twinlead (RS 15-004)

The St. Louis Vertical (SLV) offers portable enthusiasts an easy-to-build, easy-to-use antenna which:

  • Covers 10-40M via a balanced line tuner
    (Lots of Bands for the Bucks)

  • Installs independently of external supports
    (Trees are not required)

  • Is inexpensive
    (About $40)

  • Is lightweight
    (45 oz. for antenna, mount and radials)

  • Is really portable
    (Car, canoe, backpack, bike, etc.)

  • Installs pronto

How It Works

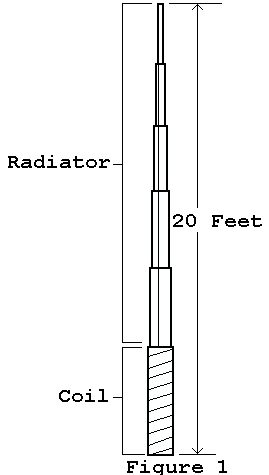

About 51' of twinlead is coiled on the 4' bottom section of a 20" collapsible fiberglass fishing pole. An additional 16' of twinlead in the clear serves as a vertical radiator. See Figure 1.
