Yaesu FT-2400


Features
  • 31 Memories
  • 50/25/5 Watts Output
  • Die-cast Heat sink
  • Backlit DTMF Mic
  • DTMF Calling
  • CTCSS Built In
  • Call Channels
  • Scanning
  • Alphanumeric Display
  • MIL-810D Rating
The Yaesu FT-2400H is a robustly built 2 meter mobile transceiver. The heavy heat sink allows output at 50, 25 or 5 watts without a fan. Transmit is from 144-148 and receive is 140-174 MHz. A 38 tone CTCSS encode board is built-in. You can selectively call up channels to display by frequency or six character alphanumeric name. Five scanning methods and 31 memories are available. The FT-2400H comes with mobile mounting bracket, DC cord and MH-27A8J backlit DTMF hand mic. The FT2400H and FT-7400H meet the stringent MIL STD-810 rating for shock and vibration. This radio requires 13.8VDC at 12 amps. (160 x 50 x 180mm 1.5kg)

The Yaesu FT-7400H is the same as the FT-2400H, but operates on the 440 MHz band instead of 2 meters with 35/15/5 watts. Frequency coverage is 430-450 MHz.


Item Description
FRC-4 DTMF Pager Unit.
FTS-17A CTCSS Decode Board (tone squelch).
MH-26G8J DTMF Hand Microphone (keys on back of mic).
MH-27A8J DTMF Hand Microphone (keys on front of mic).

SP-7 Mobile speaker with cable, plug and mounting bracket.


Type:

Amateur VHF transceiver
Frequency range: TX: 144-146 MHz (Europe)
TX: 144-148 MHz (USA)
RX: 140-174 MHz
Mode: FM
RF Power output: Hi: 50 W
Mid: 25 W
Lo: 5 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current drain: RX: Max 1 A
TX: Max 12 A
Impedance: 50 ohms, SO-239
Dimensions (W*H*D): 160*50*180 mm
Weight: 1.5 Kg
Manufactured: 1990-199x
Other: 31 memories
New price 1993 in the US: $350.00
Related documents: Operations Manual

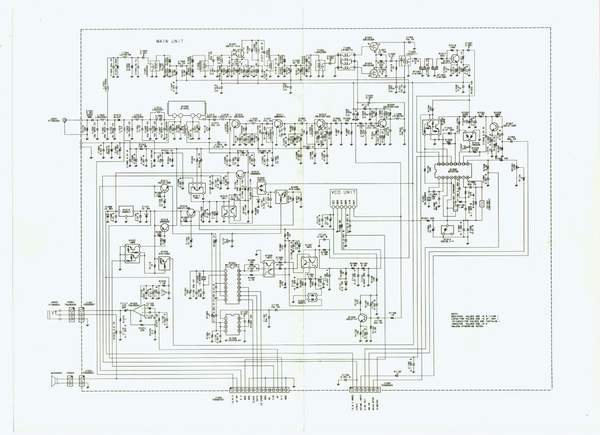

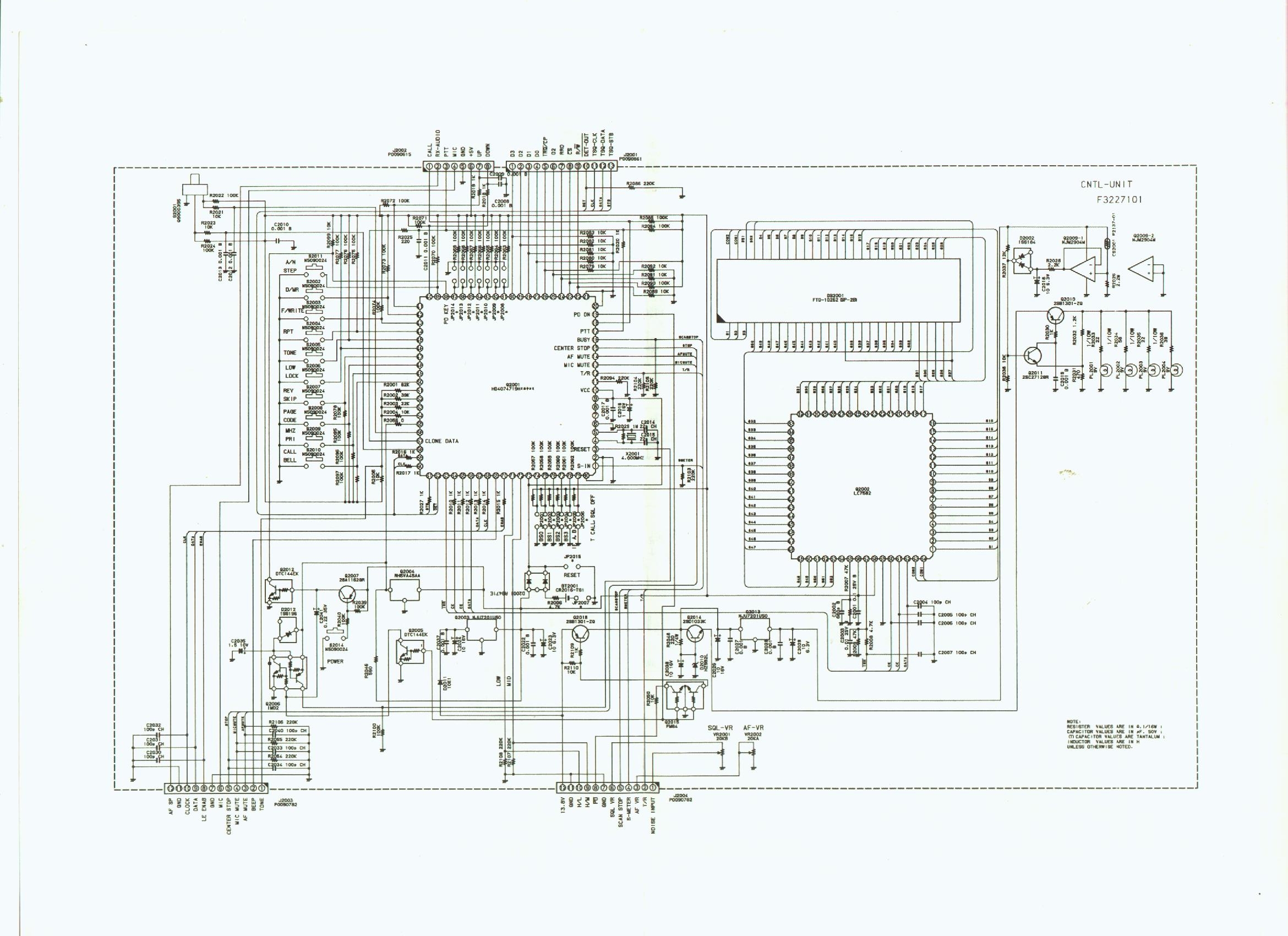

Schematics
