Model and Serial Number : See Below
Power in watts : 100
Band : VHF (146 - 174 Mcs.)

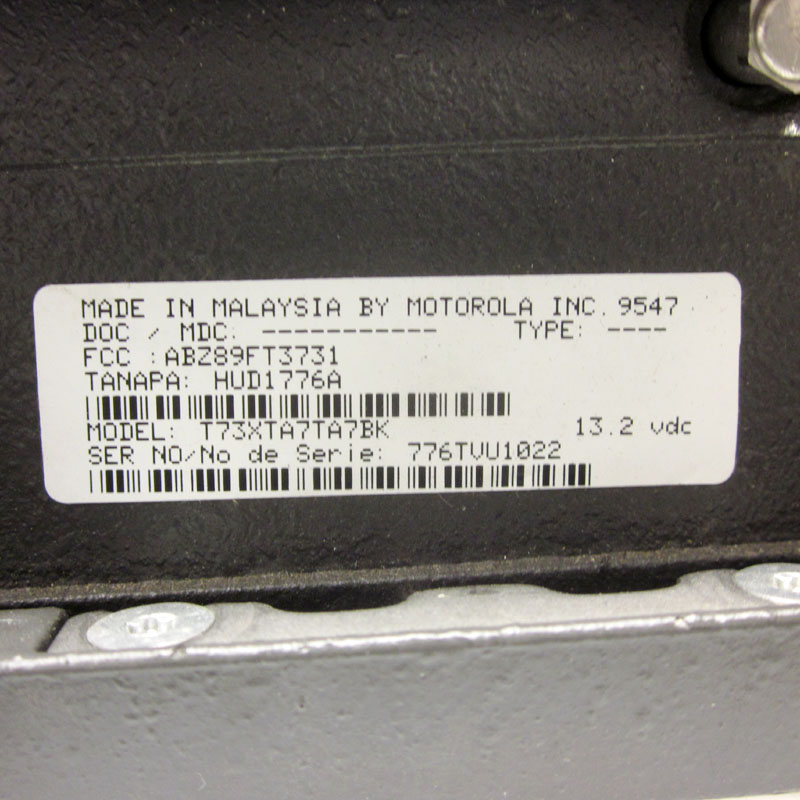

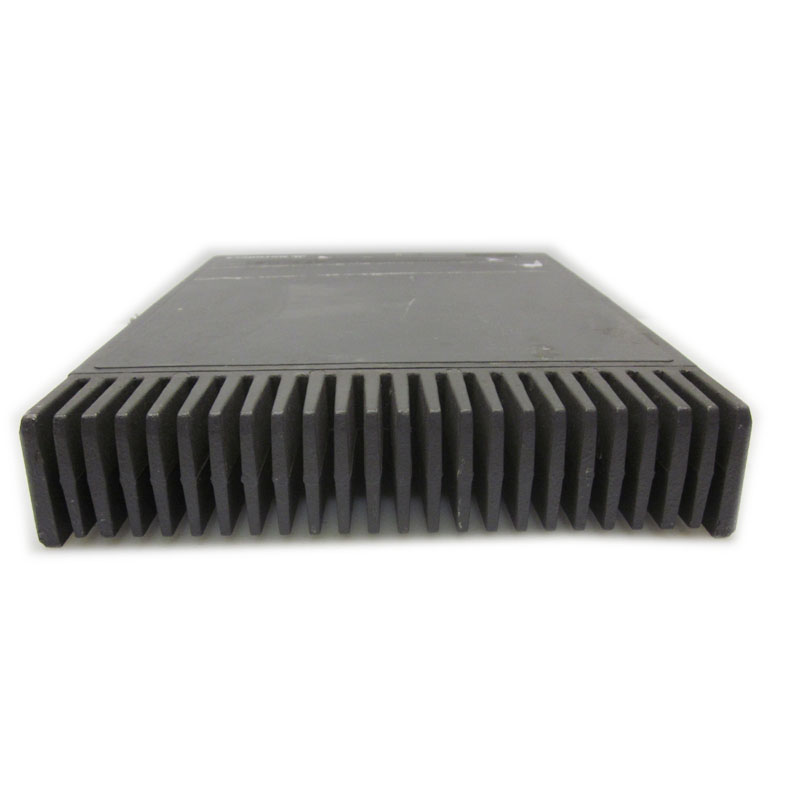

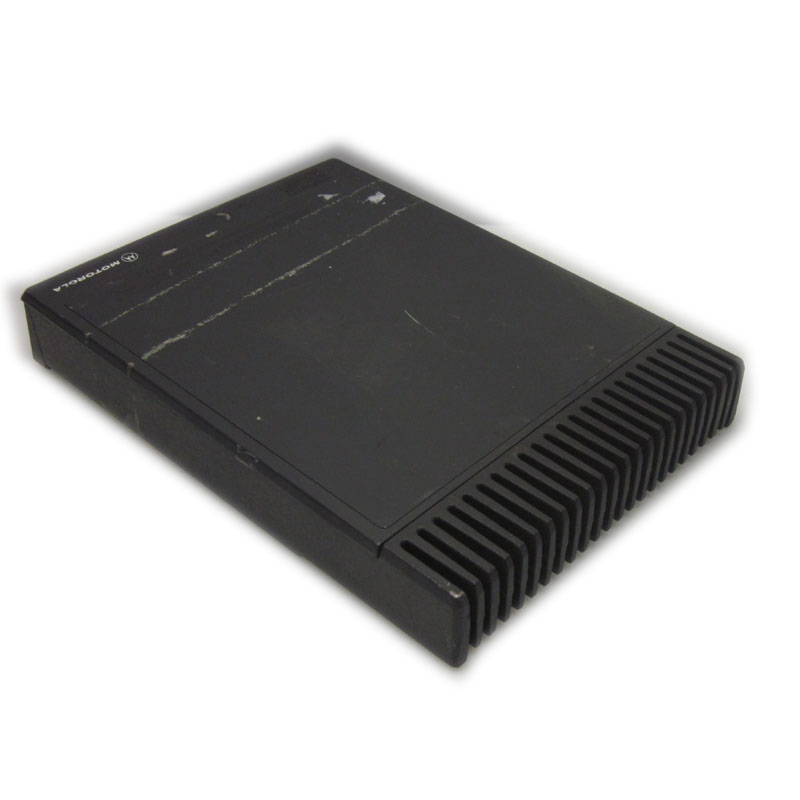

Note
about the photos below :
They are from the internet.
I have no good way of photographing the
radios.
|
|
My Models and Serial
Numbers are :
|
My
ID
Number
|
Model
Number
|
Serial
Number
|
Number
of Channels
|
201312-001
|
T73XTA7TA7BK
|
776TAJ1661
|
99
|
201312-002
|
T73XTA7TA7BK |
776TWL0677
|
99
|
201312-003
|
T73XTA7DA2BK
|
776ASA0568
|
16
|
201312-004
|
T73XTA7DA2BK |
776AQU1602
|
16
|
201312-005
|
T73XTA7DA2BK |
776ASL1517
|
16
|
|
|
|
|
|
|
Control Heads I Have
|
The "Clam Shell" head
Has two zones of 8 modes each.
|
The A7 Head.
I think I can interface with it for remote
controlling the up/Down modes.
I did notice that the front circuit board is the same as
a Syntor X's control head.
When tested the pads where the DTMF numbers are suposed to be, I did get
the MaraTrac to send DTMF tones. Next test is to get a Syntor X head
and remove the front face plate with the DTMF buttons and try it for usage. If successful, I will show how later on here and post to Repeater Builder group..
|
