Tektronix 7000 Series Plug-Ins

Model/DescriptionPicture

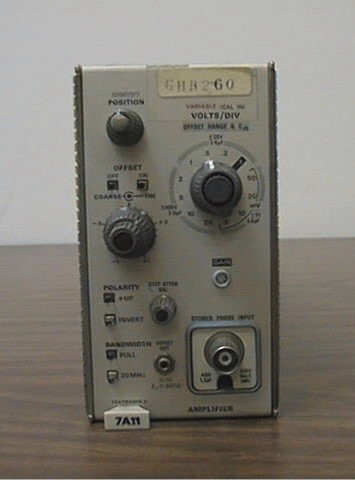

7A11 Amplifier
250 mHz bandwidth

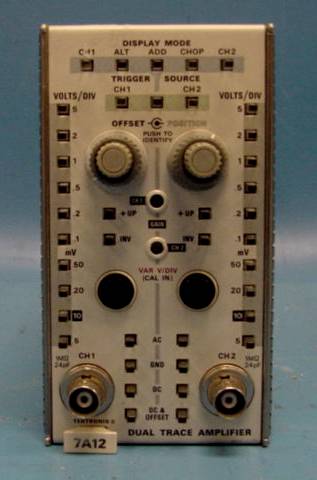

7A12 Dual Trace Amplifier
Constant bandwidth for all deflection factors, 5 operating modes, trigger source selectivity, trace OFFSET with +1000 div range, color-keyed control grouping, and a trace IDENTIFY function. Bandwidth: DC to 105MHz Deflection Factor: 5 mV/div to 5 V/div Input R and C: 1 Mohm within 2%; 24 pF within 1 pF for all deflection factors
7A13 Differential Comparator
DC to 105MHz badwidth with vertical sensitivities of 1mv/div to 5v/div and 1 Mohm input impedence. As a comparator the 7A13 will provide an accurate (0.1%) positive or negative internal offsetting voltage of up to +- 10v.Other features include:20,000:1 CMRR, 4 digit readout,and 10,000 cm effective screen eight.

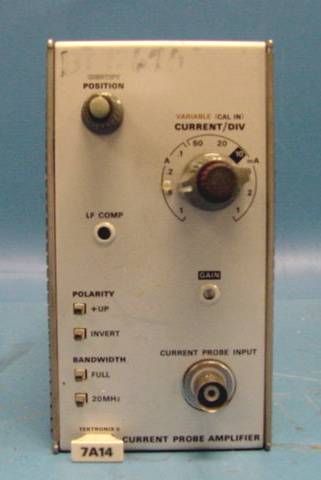

7A14 Current Probe Amplifier

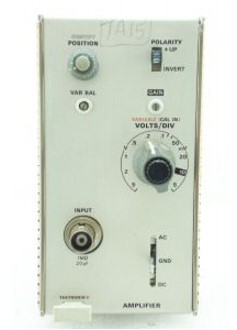

7A15 80MHz Amplifier
  • features a X10 magnifier to increase sensitivity to 500 µV/div with 10MHz and width
  • constant bandwidth at all deflection factors in the X1 setting
  • polarity of display is selectable

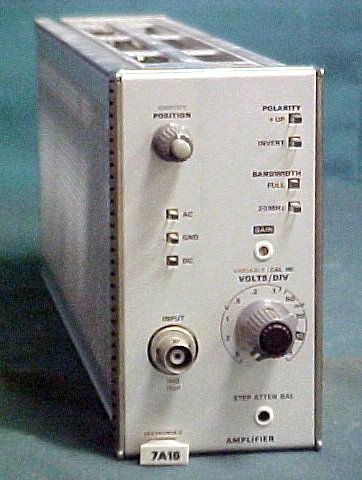

  • 7A16 Amplifier
    7A16A 225MHZ Amplifier

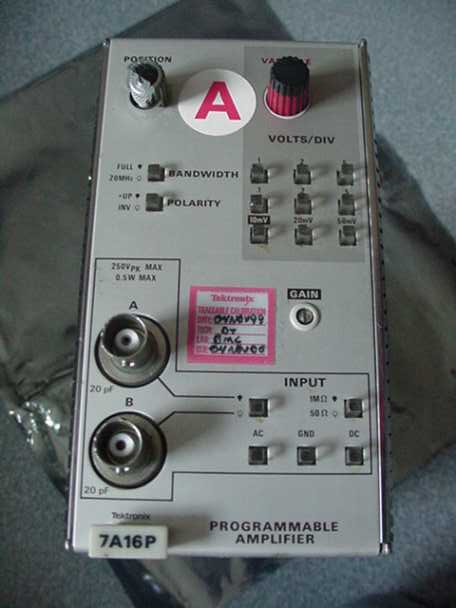

    7A16P Programmable Amplifier
  • 10 mV/div to 5 V/div deflection factors
  • 225 MHz bandwidth
  • Selectable 50 ohm or 1 M-ohm input impedance.
    For Tektronix 7912AD or 7612D Digitizers.
  • 7A17 Single-Channel 150MHz Amplifier
  • provision for addition of user-developed circuitry for special unique applications

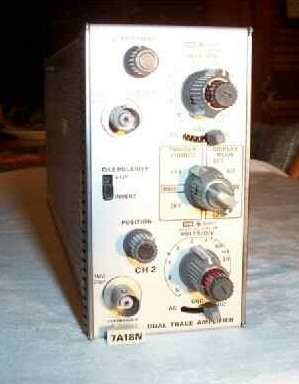

  • 7A18N Dual Trace Amplifier
  • Bandwidth DC-to-75 MHz
  • Sensitivity 5 mV/DIV to 5V/DIV
  • 7A19 Single-trace wideband amplifier
  • constant bandwidth of 600 Mhz for all deflection factors (10mV to 1V) / div
  • Bandwidth 600 MHz
  • Number of Channels 1 ch
  • Simultaneous Channels 1 ch
  • Min. Vertical Sensitivity 10 mV/div
  • Maximum Vertical Sensitivity 1 V/div
  • Rise time 0.6 ns
  • Input Impedance 50 Ohm
  • Input Coupling AC,DC,GND
  • Maximum Input Voltage 100 Vrms

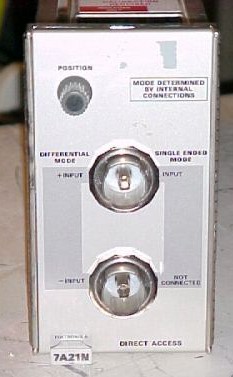

  • 7A21 Direct Access

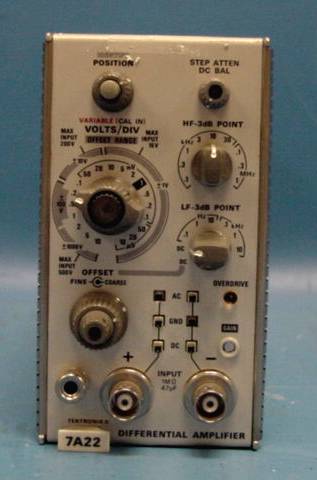

    7A22 Differential Amplifier
  • bandwidth from DC to 1MHz with calibrated ranges from 10 V to 10 V/div
  • selectable upper and lower -3 dB points
  • 100,000:1 CMRR
  • adjustable DC offset control

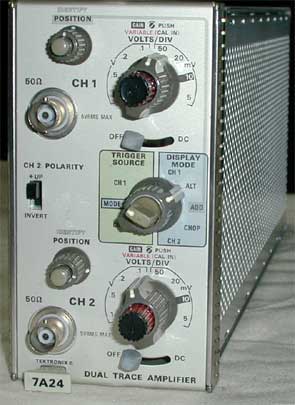

  • 7A24 Dual Trace Amplifier
  • Bandwidth: DC to 400 MHz
  • Deflection Factor: 5 mV to 1 V/div
  • Accuracy: 2%
  • Input Impedance: 50 ohms
  • CH2 invert and identify function

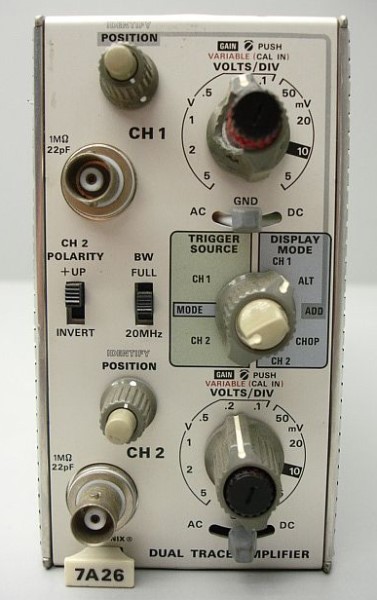

  • 7A26 Dual Trace Amplifier
  • Bandwidth: DC to 200MHz
  • Vertical sensitivity 5 mV/div to 5 V/div
  • 5 operating modes
  • trigger-source selectability
  • 20MHz bandwidth limit switch
  • trace identify
  • 7A29 DC to 1GHz Bandwidth Single-Trace Amplifier
  • 10mV/div to 1V/div Deflection Factors
  • 50 Ohm Input
  • option for variable delay plus and minus 0.5nS

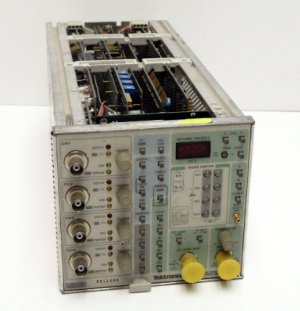

  • 7A42 Logic Triggered Vertical Amplifier
    7B10 Time-Base
  • Triggering to 1GHz
  • Variable Trigger Holdoff
  • Peak-to-Peak Auto Triggering
  • 0.2ns/div to 0.5/div Time Base

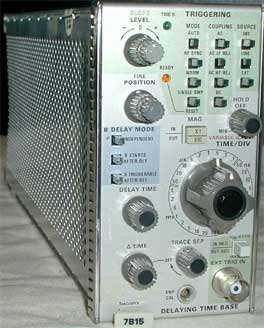

  • 7B15 Delaying Time Base
  • Triggering to 1 GHZ
  • 0.2ns/div to 0.2s/div Calibrated Time Bases
  • Variable Trigger Holdoff
  • Peak to Peak Auto Triggering
  • Delta Time Measurements with CRT Readout
  • Delayed Time Measurements with CRT Readout
  • Vertical Trace Separation between Two Delayed Sweeps
  • operates as a Delaying Time Base when used with Delayed Time Base (7B10) provides Delta Time measurement (via CRT readout)

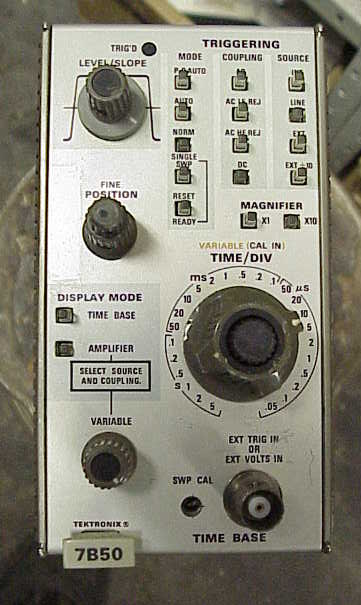

  • 7B50 150MHZ Time base

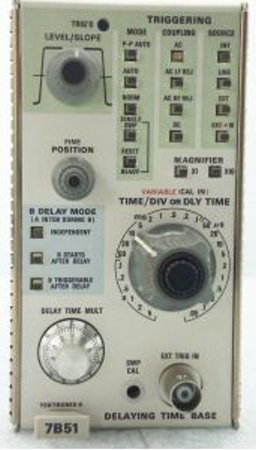

    7B51 Delaying Time base

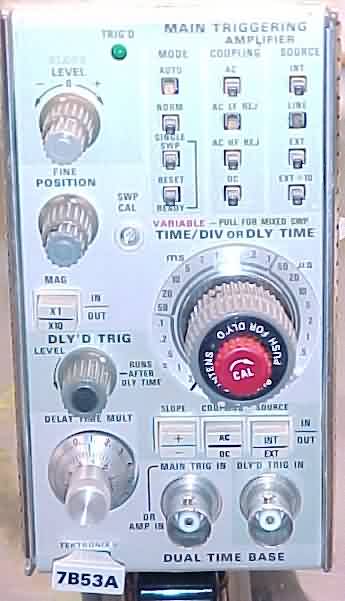

    7B53 Dual Time Base
  • triggers to 100MHz
  • has normal, intensified delaying, delayed, and mixed sweep modes
  • Delaying sweep speeds are 50 ns to 5 s/div in 25 steps
  • X10 MAG, INT. and EXT. (main & delayed) trigger inputs
  • single sweep
  • front-panel Cal and fine/coarse position controls
  • Slope adjust switch (-/0/+)
  • TRIG'D Light Indicator
  • Main Triggering Amplifier [Mode/Coupling/Source][Mode:Auto/Norm/Single SWP/Reset][Coupling:AC/AC LF REJ/AC HF REJ/DC][Single:INT/Line/EXT/EXT div 10]
  • TIME/DIV or DLY TIME Channel Select Variable Adj.
  • Slope/Coupling/Source Select IN/OUT
  • Main Trig/Dly'd Trig INPUT
  • Delay Time Mult Precision Adj.
  • DLY'D TRIG Adj.
  • MAG x1/x10 Switch
  • SWP CAL Adj.
  • Fine Position Fine/Coarse Adj.
  • 7B70 Delayed Time-Base
  • Triggering to 200MHz 2nS to 5S/div
  • 7B71 Delaying Time Base
  • Bandwidth: DC to 200MHz
  • Delayed Sweep
  • time/div range 2 ns/div to 5 s/div
  • 7B80 400MHZ Delayed Time Base
  • Time Base: 1 ns to 5 s/div with 1.5% accuracy (50 ns to 0.5 s/div)
  • Variable Trigger Holdoff
  • Peak-to-peak Auto Triggering

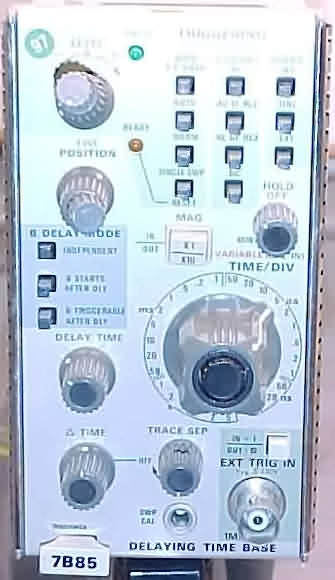

  • 7B85 Delaying Time Base
  • Slope Level (-/0+) Adj.
  • Trigger Light Indicator
  • Ready Light Indicator
  • Lighted MODE[p-p auto/auto/norm/sing
    • swp]/COUPLING[ac/ac lf rej/ac rf
    • rej/dc]/SOURCE[int/line/ext] Select Switch
  • Hold Off Adj.
  • MAG X1/X10 Select Switch
  • TIME/DIV Channel Select w/ CAL Adj.
  • EXT TRIG IN
  • EXT TRIG [div 1/div10] Select Switch
  • TRACE SEP Adj.
  • Time Differential Adj.
  • Delay Time Adj.
  • B Delay Mode Select [Independent/B Starts After DLY/B Triggerable After DLY]
  • Fine Position Knob Fine/Coarse Adj.
  • SWP CAL Adj.
  • 7B87 400MHz Dual Time Base

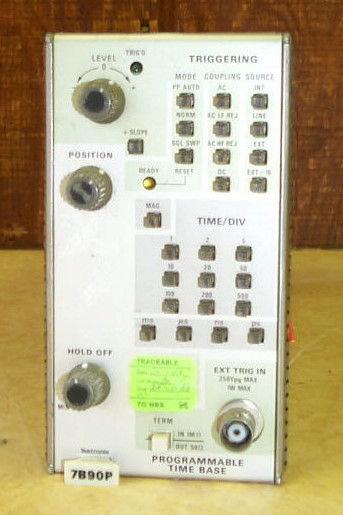

    7B90P Programmable Time Base

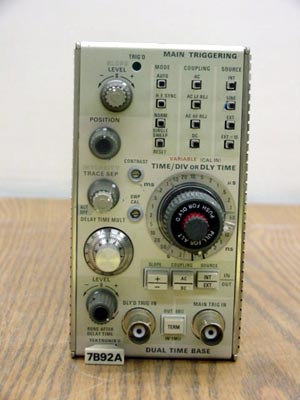

    7B92A 500MHZ Dual Time Base
  • 0.5ns/div to 0.2s/div Calibrated Time Base
  • Triggering to 500mhz
  • alternate display of intensified delaying and delayed sweeps
  • contrast regulation between delaying and delayed sweeps
  • four display modes Normal Sweep-Intensified Delaying Sweep-Delayed Sweep-Alternate Sweep
  • selectable 1meg or 50 ohm external trigger input

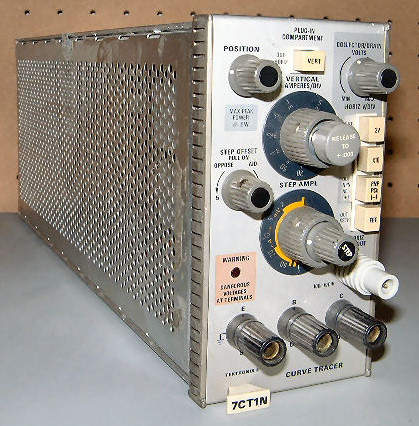

  • 7CT1N Curve Tracer
  • displays characteristics of small signal devices to power levels up to 0.5W
  • Series Resistance:
     Automatically selected with horizontal V/div switches.
  • STEP GENERATOR- Transistor Mode:
     1uA-1mA/step amplitude range
  • FET Mode:
     1uV-1mV/step amplitude range.
  • Impedance 1Kohm +/-1%
  • 7D01 Logic Analyzer
  • 16 stored channels
  • up to 1024 words deep
  • state or timing
  • up to 100 MHz sample rate

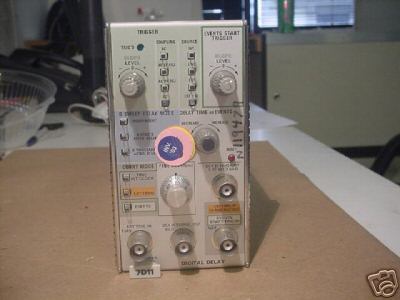

  • 7D11 Digital Delay
  • Provides means of accurate and stable delayed triggers for measurements requiring low jitter and precision time delays
  • unit provides a variety of outputs
  • Digital Delay Readout: To 7 1/2 Digits
  • Delay by Time or Events
  • Delay Time: 100ns to 1s
  • Resolution: 1ns Less Than 2.2ns Accuracy: 0.5 ppm (±2 nS)

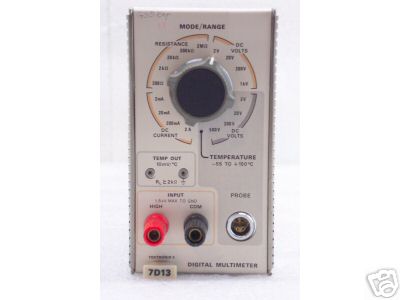

  • 7D13 Digital Multimeter
  • DC volts
  • DC current and resistance
  • temperature measuring capability provided by a temperature sensor on the tip of the voltage / temperature probe
  • 3 1/2 digit CRT Readout
  • 0 to 1000 VDC (4 ranges)
  • ±(0.1% of reading + 1 count)
  • 0 to 2A (4 ranges)
  • 0 to 2 Mohms (5 ranges)

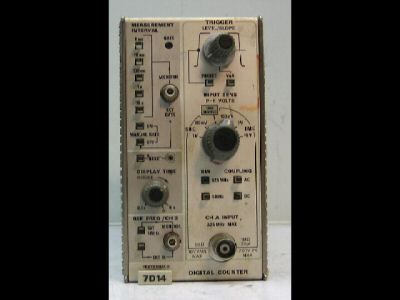

  • 7D14 Digital Counter

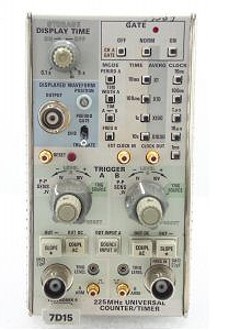

    7D15 225MHz Universal Counter/Timer
  • resolution is 0.1Hz
  • Period and Multi-Period Mode: 10 ns to 10E+05 s with selected averaging of 1 to 1000 events in decade steps, 10 ps max resolution
  • Time Interval (TI) and TI Average Mode: 6 ns to 10 s with selected averaging times of 1 to 1000 in decade steps, 0.1 ns resolution
  • Frequency Ratio, CH B/Ext. Clock: 10E-07 to 10E+04
  • Manual Stop Watch: 0 to 10E+05 s
  • Totalize, CH B: 0 to 10E+08 counts

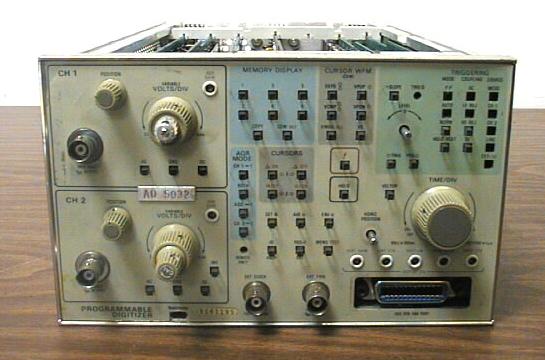

  • 7D20 Programmable Digitizer
  • has GPIB
  • fully programmable
  • digitizing oscilloscope
  • measure the amplitude of a 50 ns wide transient event
  • 70MHz bandwidth for repetitive signals
  • 10MHz Single-Shot bandwidth Dual channel simultaneous acquisition

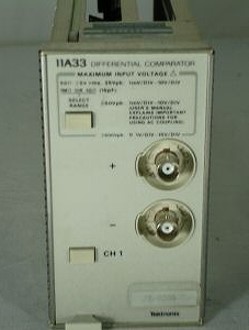

  • 11A33 Differential Comparator
