Space Filling 1



Space Filling 2

Space Filling Fractals (3)

This model diverges from other designs in that it contains 64 feet of wire. This was done to bring some harmonics into the window below.

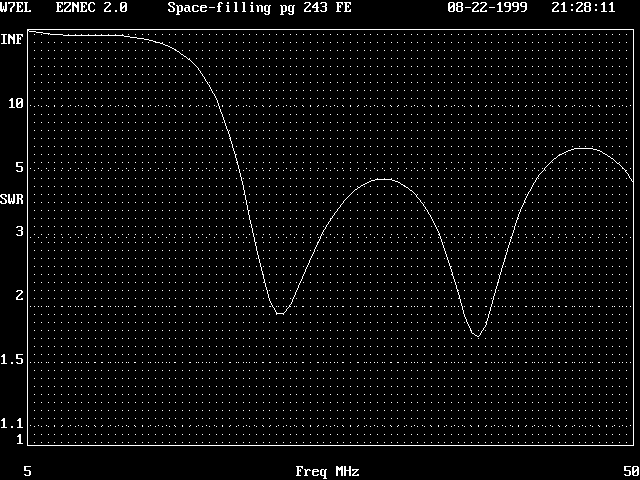

This shows how high Z some of the fractal designs can be. This SWR is for Z0 of 450 Ohms. The Nulls are actually 200 Ohm resonances, I went to 450 Ohms to hi-lite the broadness of the nulls.
