The following is a graphical representation of 9 MHz vs. 455 kHz filtering.

This is a sample of a raw, unfiltered white noise.

This is a sample filtered at 8.83MHz with a 500Hz filter.

This is a sample filtered at 455kHz with a 500Hz filter.

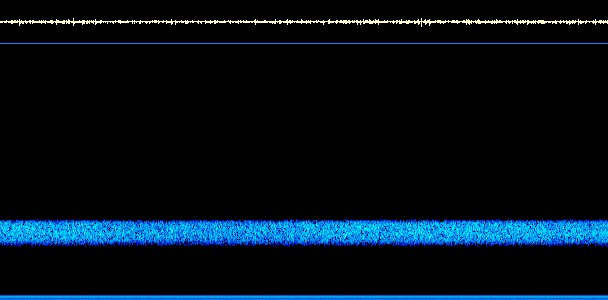

This is a sample filtered with both 500Hz filters.
