This
page contains pictures of the famous K6KCP/KB6IQL repeater system. It started out as
two separate systems, then (at the recommendation of several friends) we combined our
equipment to make a really cool UHF repeater system. It covers the greater
Sacramento, CA valley. We use a Linkcomm CLUB controller at the Hub site, and
a Linkcomm RLC-1 at the transmit site. Currently, we have three receiver voting
sites. This will be expanded as more sites become available. We currently have
enough equipment to add two more receive sites. It currently covers most of the
Sacramento Valley with a handheld running 2 watts. I run 1/2w on my HT at home, but
I'm only a few miles from one of the receiver sites. Feel free to listen and use the
system if you are in the area. We only require that you have an open mind and that
you aren't boring. :) The repeater transmits on 440.350 with a tone of 179.9,
and the receive frequency is 5 Mhz up from that. |
Click on an image below for a larger image
|
|

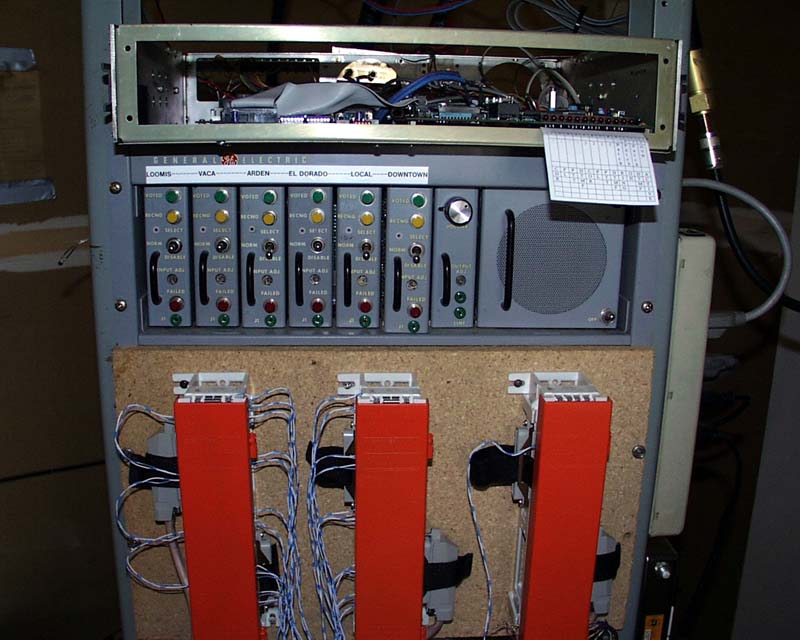

CLUB controller, GE Voter and 66 blocks

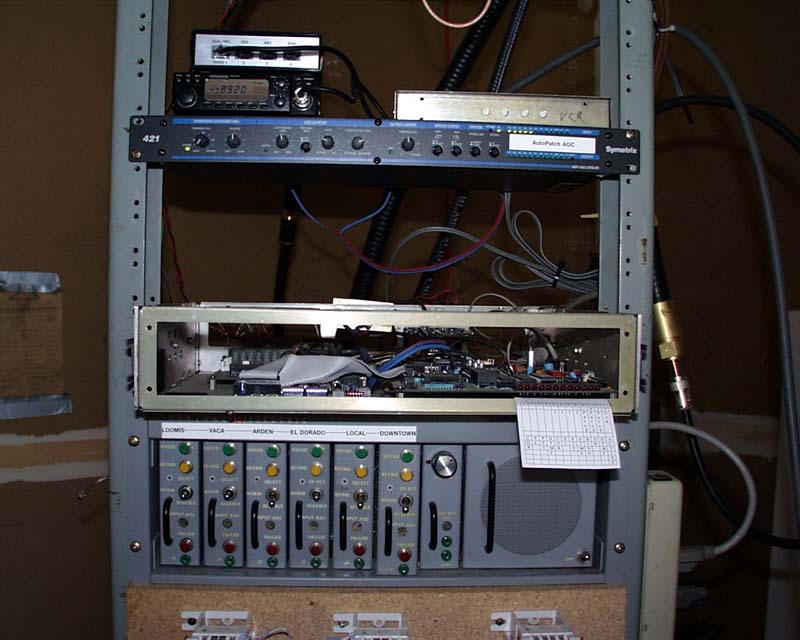

Dual-band remote, Phone line AGC visable near top |

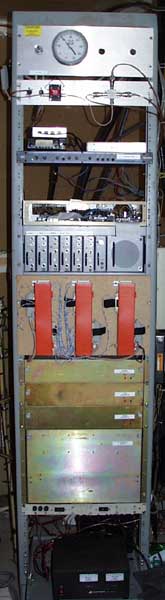

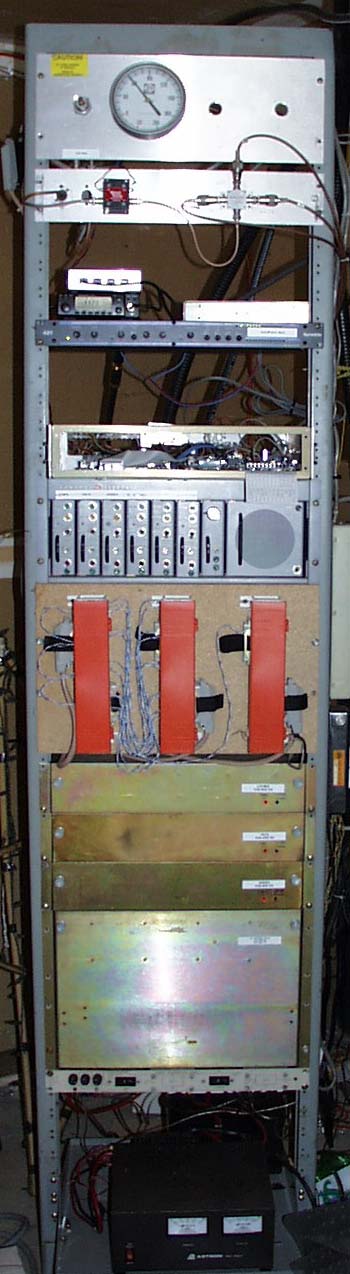

Front view of HUB rack
with link receivers |
|
|
|
|
|

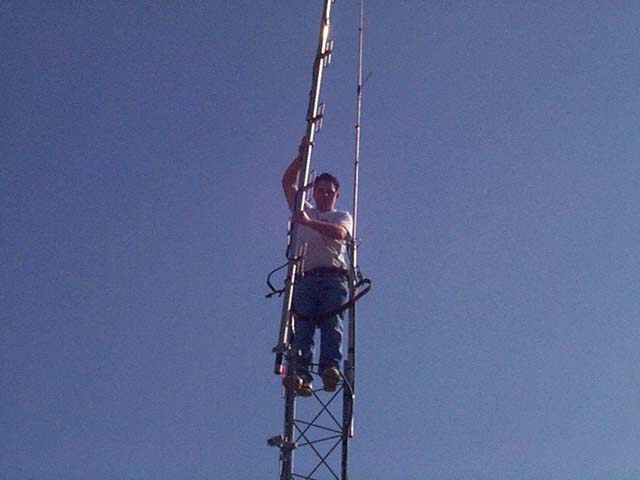

Chris (KB6IQL)
mounting a DB Products UHF eight-dipole array. Our group has had excellent results
with this antenna. We use it exclusively at all our sites. |
You too can grow up to
be a radio amateur! |
|
|
|
|

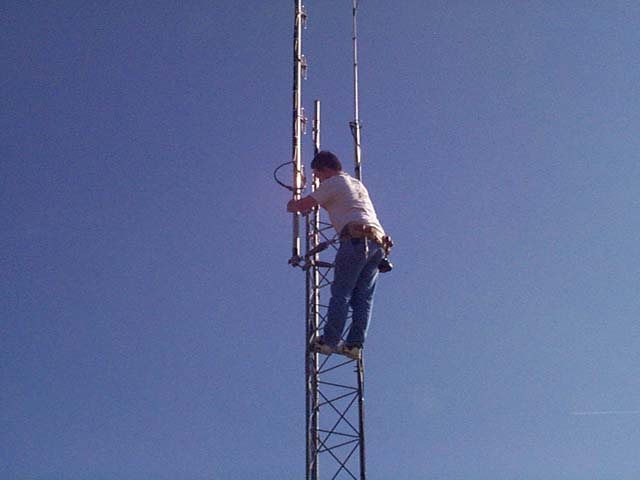

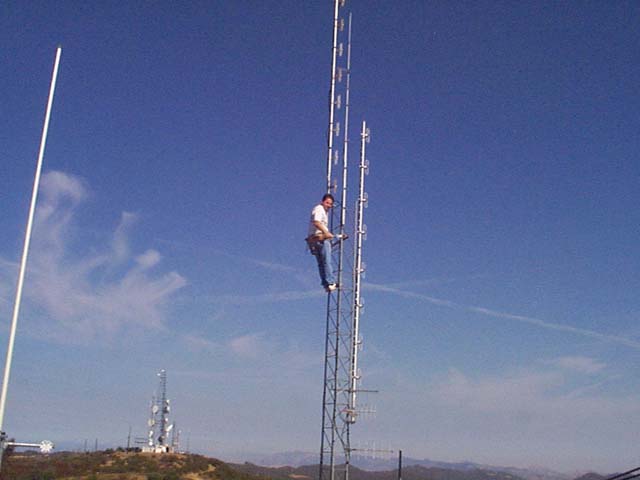

Chris mounting an
8-dipole array on a 45G tower |

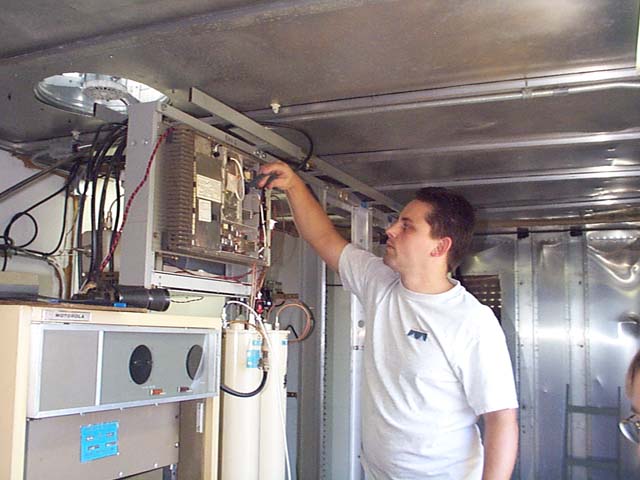

Chris setting squelch
on a MII. |
|
|
|
|

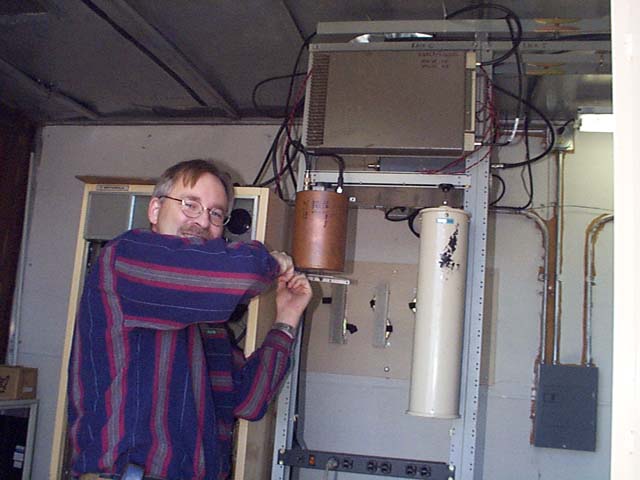

Jim mounting a UHF
cavity at the Mt. Vaca site |
Jim conferring with
Chris on how to modify a GE Master II mobile for slow squelch action. |
|

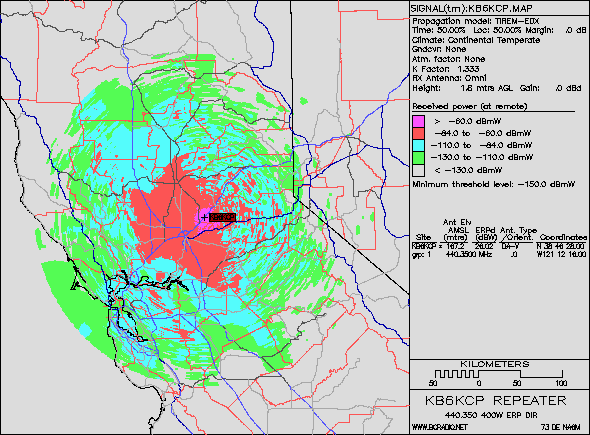

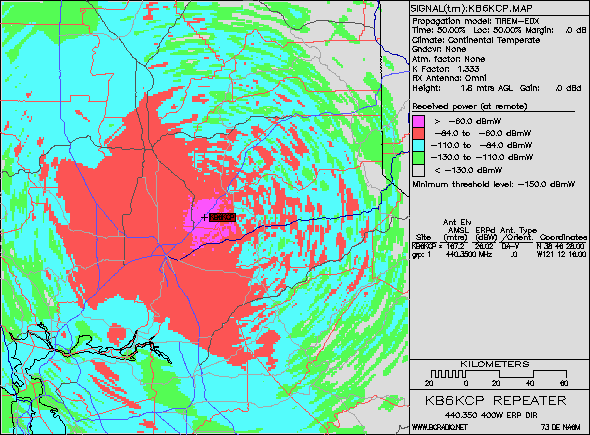

Here are
a couple of coverage maps. Click on them for a larger version. |
|
|
I've also got a
repeater near Downtown Sacramento on 441.850 (PL=179.9), and yet another repeater near the
town of Zamora (approx. 20 miles north of downtown Sac) on 441.850 (PL=156.7) that covers North to Chico, East to
Nevada City, and South to Sacramento. All of these repeaters are listed as
"closed", but you are free to use them as long as you are licensed for operation
on these frequencies. |
