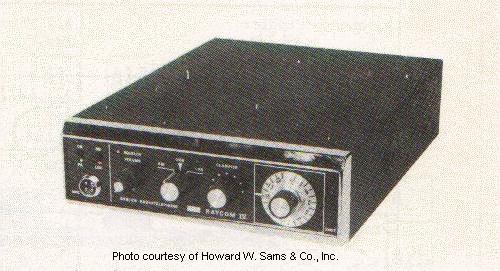

Raycom IV


Description 23 channel AM/SSB mobile transceiver
Years made 1968 - 1971
Original price (unknown)
Circuit 35 transistors, 1 integrated circuit
Transmitter Crystal synthesis, 5 Watts input AM, 12 Watts PEP input SSB
Receiver Crystal synthesis, dual conversion, first i-f 7.8 Mc, second i-f 455 kc
Power supply 12 VDC
Sams Photofacts Volume CB-36, page 65
Advertising Haven't found any yet
Magazine articles Haven't found any yet
Other printed matter Haven't found any yet

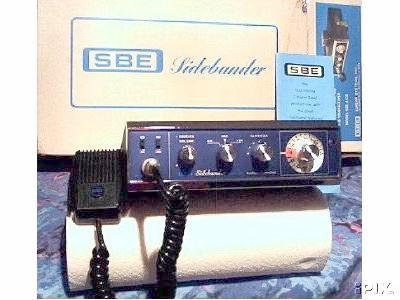

SBE Sidebander, model SBE-6-CB:

This is the same radio, with an SBE label instead of a Raytheon label:


Photo credit: UNKNOWN (captured off the internet)
