GE Logo Rangr
Note:  The "DRAWING" text designators are links to scanned images from THE MANUAL.
DRAWINGS:
DRAWING A:                                                     _____
                                                              |  |  | <-so-239 (Antenna Conn.)
              ------------------------------------------------|-----|------
              ------|                           ______|--------------|__  |
              ------|                           |                o     |  |
              ------|                           |    xxxxxxxxxxxxxxxx  |  |
              ------|                           |   o                  |  |
              ------|                           |__              ______|  |
              ------|                              |__   _       |        |
              ------|                                 |_| |______|        |
              ------|                                                     |
              ------|                                                     |
Heat Sink --> ------|                                                     |
              ------|                                                     |
              ------|   o <CD-711                                         |
              ------|     |----------|                                    |
              ------|     |----------|                                    |
              ------|                                                     |
              ------|                                                     |
              ------|                                                     |
              ------|                                                     |
              ------|                                                     |
              ------|_____________________________________________________|

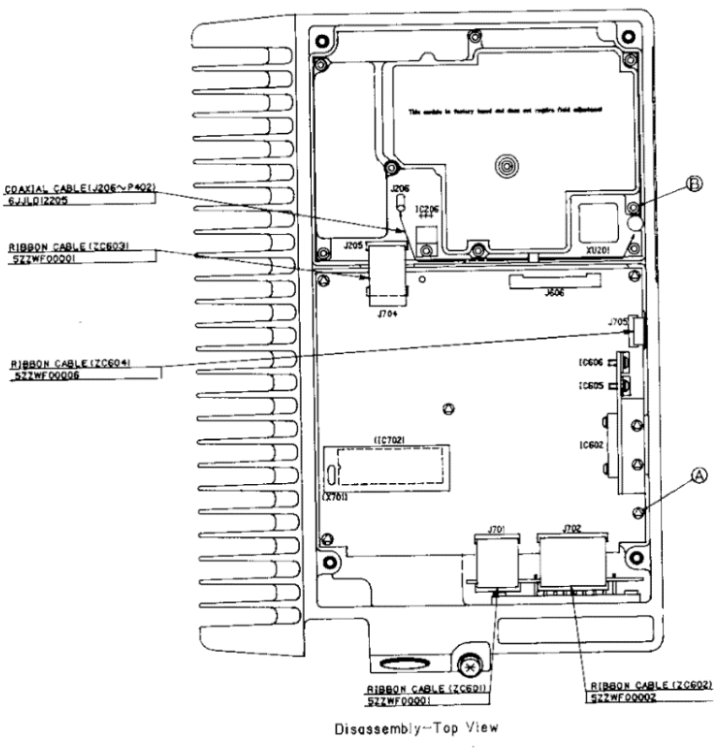

rangrtop.gif (89902 bytes)<-Click here to view a scanned image of the top of the radio without the cover.

************************************************************************
DRAWING B:
                                                |----------------------------------|
     -------------------------------------------|                                  |--------|
     |                                                               CV-202-> O             |
     |                                                          (TX VCO adjust)             |
     |                                                                                      |
     |      "This module is factory tuned and does not require field adjustment"            |
     |                                                                                      |
     |                                                                                      |
     |                                                                                      |
     |                   O <-CV-201 (RX VCO adjust)                                         |
     |---------------|                                                        --------------|
                     |                                                        |
                     |                                                        |
                     |                                                        |
                     |___      _____                                    ______|
                         |____|     |___________________________________|
rangrvco.gif (17521 bytes)<-Click here to view a scanned image of the VCO adjustment points.
************************************************************************
DRAWING C:
                    _____
                   |  |  | <-so-239 (Antenna connector)
             ------|-----|-------------------------------------
             |                   |                     |-------
             |                   |                     |-------
             |                   |                     |-------
             |                   |                     |-------
             |                   |                     |-------
             |                   |                     |-------
             |                   |                     |-------
             |                   |                     |-------
             |                   | O <RV-1 TX pwr adj. |-------
             |                  =|= <-J4               |-------
             |                   |                     |-------
             |                   |                     |-------
             |                   |                     |-------
             |                   |                     |-------
             |                   |                     |-------
             |                   |                     |-------
             |                   |                     |-------
             |___________________|_____________________|_______

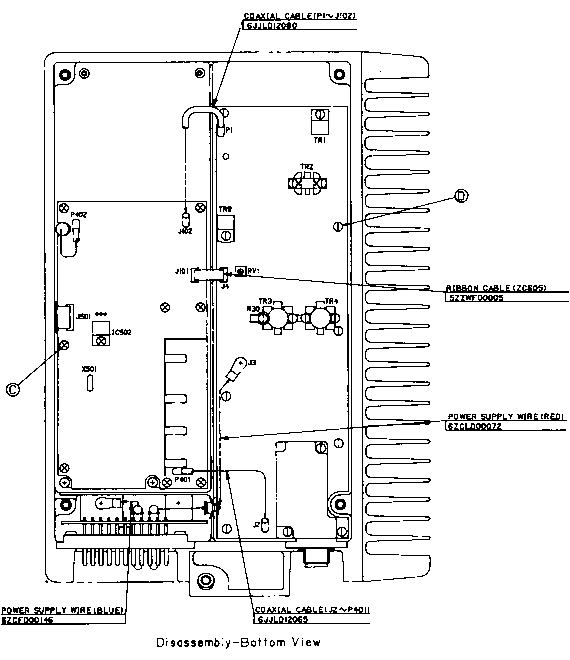

rangrbot.gif (13439 bytes)<-Click here to view a scanned image of the TX power adjustment point on the bottom of the radio.



Suggest you print this then go back to the main menu (or use your browsers BACK button).
