May 9 Rooftop Polyphaser Party

 at National Weather Service, Boulder, CO

by wb5yoe-richard  & k0co-jack



On a 38 degree, rainy, Saturday, WB5YOE and K0CO returned to NWS (National Weather Service)at Boulder to install Polyphasers on each of 4 antenna feed lines to improve lightning protection.  This radio installation is used by area SKYWARN weather spotters to communicate with the NWS weather forecasters to report severe weather including tornado activity, large hail and flooding.

When finished, the radios were checked for operation;  The 146.94 Icom could hit the Squaw Mountain repeater directly and full quieting when using the beam antenna selector switch position, the Icom on the  Broomfield UHF 449.825 link to the 146.94 repeater operated correctly, and the HF Kenwood could hear the 14.336 mhz CHN net Q5 with low SWR.

See the full slide picture set by clicking here:  Pictures

Image of IS-B50HU-C1-MA Polyphaser (http://www.polyphaser.com)

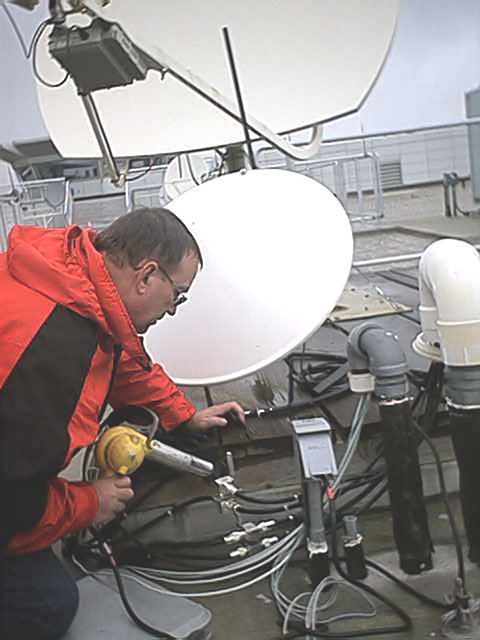

wb5yoe & k0co               Richard-Soldering





Weatherproofing      Jack-Ground Cable Bonding





Finished Project                                NWS-Boulder
