#27 Audio Amp

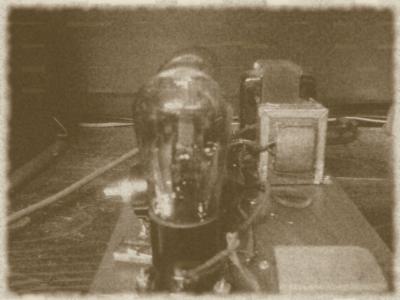

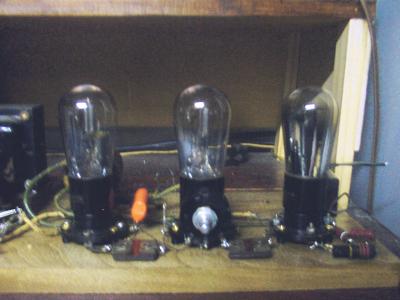

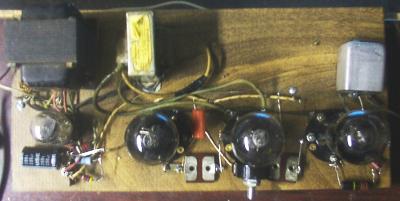

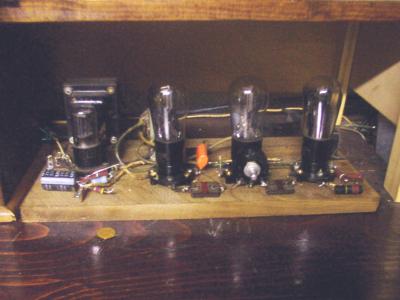

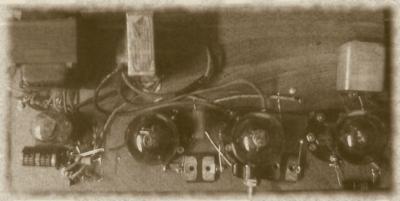

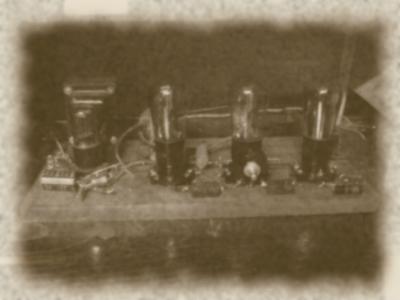

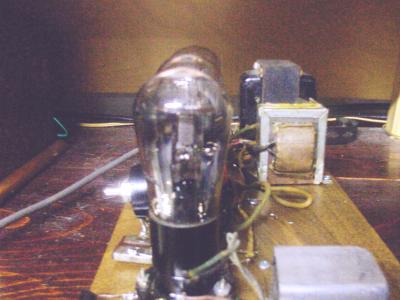

This is a 3 stage resistance coupled amplifier of my own design. I built it so that I can have loudspeaker output from about any regenerative receiver I build.Although not entirely finished at this point, I plan to put a front panel on this amp and add phone jacks to take audio from different points in the circuit for headphone output.



The somewhat modern power supply will be enclosed as well. Will most likely build a black plexiglass sub-chassis that will hide many of the components and leave the tube glass visable.



For full color images, click on the picture.
