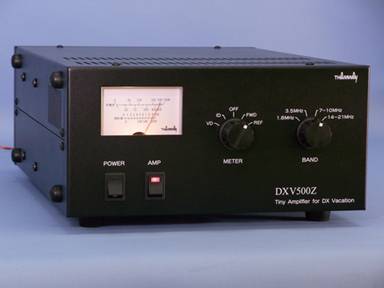

The superb liner amplifier DXV500Z

Manufactured and distributed Thamway Japan.



Ham radio equipment

RF product



Thamway DXV500Z is well developed as the world No1 DXpedition liner amplifier. If you have any concern about a liner amp, that’s the solution.

Source voltage?

Wide range source voltage/ 100 to 230VAC

Bring it by air plane?

Light weight just 18lbs including the power supply

2nd or 3rd amp?

Affordable



DXV500Z brings ANYONE ANYWHERE to DXpedition.




Technical literature

                        <From Thamway’s web site>



Part Number

DXV500Z

Source voltage

100- 230VAC

Weight

8.3kg/ 18.3lbs

Frequencies

160M

1.800 to 2.000Mhz

80M

3.500 to 4.000Mhz

40 and 30M

7.000 to 10.150Mhz

20, 17, and 15M

14.000 to 21.450Mhz

Band switch on front panel

Output

160, 80, and 40M

500W

30, 20, and 17M

>350W

 15M

>300W

Harmonic distortion

Less than equal -50dB on each band when specified power was outputted to 50ohm loading

RF input

25 to 50W on each band when specified power was outputted

Final

6x 2SK2482 (3x parallels x push-pull)

RF Connectors

PL-259

QSK

Semi break-in applicable

ALC

0 to -4V adjustable



See detail http://www.thamway.co.jp/ham/hamequipment.html . Please note the web sites are in Japanese only currently.
