MQA
mono - quad - ant : fast and easy mounting , + 2dB over a dipole- no spreaders - good for portable operationquad a singolo quadro ,costruita senza ricorrere a crociere,basta un unico palo telescopico.2db meglio del dipolo,ideale per una pronta installazione

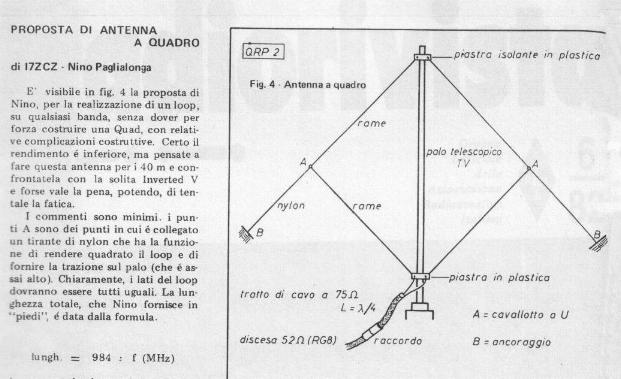

notes: single (TV) mast,use two nylon ropes to model the square loop and fix the mast.Insulate the top and lower angle of the loopTotal lenght (feet) : 984 / f (mhz) ; matching stub: lambda/4*cv (cv:0.66 for standard RG59 -75 ohm cable-) . Line feed = 50 ohm
