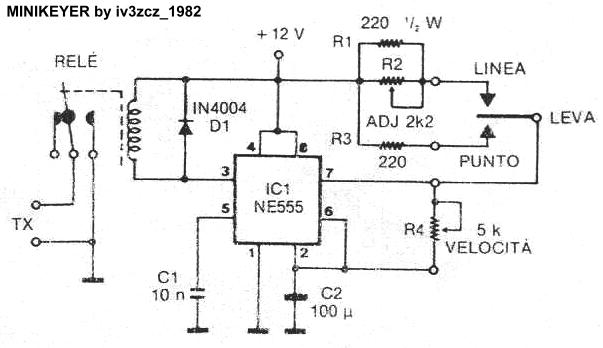

mini - keyer | |
by Nino Paglialonga _1982 | |
manipolatore cw compatto | compact cw keyer |
caratteristiche : velocità = 20 - 200 caratteri al minuto rapporto punto linea = regolabile uscita = adatta per qualsiasi Tx , sia manipolazione con tensione positiva che negativa o con terminali isolati da massa alimentazione : 9 / 14v cc suggerimenti : è preferibile che il condensatore da 100 microF sia al tantalio per le sue ottime doti di stabilità nel tempo. trimmer 2k2ohm NON miniatura . Relè = tipo " reed "
hanno contatti dorati e posti in ampollina di vetro sotto
vuoto o in atmosfera inerte e se surplus , di poco costo
sopportano poche centinaia di mA. Taratura : usare un tester analogico predisposto su ohm x 10 sull'uscita Tx e inviare una serie di punti variando la velocità fino a portare la lancetta a metà scala. Inviare , ora , una serie di linee, regolando il trimmer ADJ con movimento leggero e continuo fino a che la lancetta si posiziona intorno al 75 % del quadrante . E' tutto . Il rapporto punto / linea può essere leggermente alterato . Una goccia di smalto bloccherà il trimmer. TLC555 = versione C - mos , basso consumo . | speed : 20 to 200 cpm dot / dash ratio : variable output : suitable for any TX, ( negative or positive keying ) pwr : 9 / 14 vcc Hints : 100microF tantaliyum ( for high stability ) 2k2 trimmer , NO miniature enclosure Relay : " reed "type , high speed and golden contacts in a glass enclosure_ ( vacuum or inert athmosphere )_ surplus it is cheap and works fine Very high speed = don't use the 1n4004 diode. Check and adjustment:analog ohmeter ( ohm x 10 ) ,send dots and change the keyer speed until the needle of the meter is half scale . Now send dashes and with soft and continuous movement adjust " ADJ "until the needle reachs 75 % of the full scale . The dot / dash ratio may be lightly changed A drop of vernish will fix it. TLC555 = C-mos version , low current |
