test : 7 mhz,evening-time,same antenna -1-many stations can be heard on FTmod,only -2-rf attenuator (20db) on: now the FT standard can copy many stations,anyway the FTmod without rf attn is still better,and weak signals completely lost by the FT standard are easily received by FTmod. -3- severe condicions:attn on , on both radios many cross-mods sigs on the band,many signals can be heard on the FT mod only -4-FTmod:the needle of theS-meter follows signal force and reachs the rest position during pauses-on the FTstandard often the S-meter doesn't follow completely signal force and doesn't reach the rest position due to the (false)noise floor -5- noise test: antenna,50ohm dummy load-FTmod is more quiet-Antenna on,other bands:weak signals(S-meter= 0) signals are cleaner on the FTmod due to a better S/N and easy to detect. notice: before test FT mod and FTstandard have to be comparated :calibrator -on,same S-meter reading The sensitivity of the FT mod unit is unaffected by mixer mods. | test: 7mhz ,ore serali,stessa antenna -1- molte stazioni copiabili perfettamente con FT- mod non sono copiabili su FTstandard -2-attenuatore 20db inserito su FT standard.FT mod è ancora superiore,sono copiabili stazioni deboli perse dallo standard -3 -condizioni severe,segnali fortissimi: attenuatore inserito su entrambi- molte stazioni anche se disturbate (intermodulazione)sono ricevibili solo sul modificato -4-FT mod :S-meter segue il segnale e torna quasi a zero nelle pause.FTstandard segue poco e non torna a zero per il forte gorgoglio di fondo. -5-test rumore: attenuatore 50 ohm in antenna.FTmod è più silenzioso.Antenna inserita (altre bande) :FTmod -segnali molto deboli (S-meter = 0 )- segnali più chiari e copiabili per il miglior rapporto segnale rumore. nota: inizialmente comparati FT mod e FTstandard:calibratore on,stesso segnale S-meter. La sensibilità del FTmod resta inalterata con i nuovi mixer. |
the original fet-mixer now becomes a source follower adapting the impedance towards the new mixer.The local signal is amplified to 13 dbm for a strongest i.m. immunity.HP2800 are hot carrier diodes (not necessarily matched). | l'originale mixer a fet viene usato come emitter-follower per adattare l'impedenza verso il nuovo mixer.Il segnale locale è amplificato a 13 dbm per conferire maggior immunità all'intermodulazione.HP2800 sono diodi hot-carrier(non necessariamente accoppiati). |
the original mosfet mixer becomes an i.f. amplifier.The unit is located under the VFO.The 22k res on gate 2 of the original mixer can be varied to get almost 10 db ,but the whole unit after mods is equalized. | il mixer originale a mosfet diviene ora un amplificatore i.f. L'unità è allocata dietro il VFO.La resistenza da 22k sul gate 2 del mixer originale può essere variata per ottenere fino a 10 db,ma l'intera unità modificata è equalizzata. |

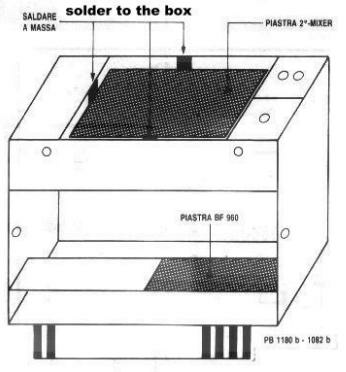

note: use double-face soft tape to fix the BF960 board | nota : usa nastro biadesivo spugnoso per fissare la piastrina del BF960 |
