IK3NWX/B
10,137.3  MHz


callsign

 IK3NWX/B
QRG    10,137.3 MHz
mode    A1
antenna    Dipole
QTF    East-West
power    2 W
QTH    Monselice (PD)
a.s.l.   25 mt
WWL    JN55VF
status    24 h

Hear the signal:    15 Km distance

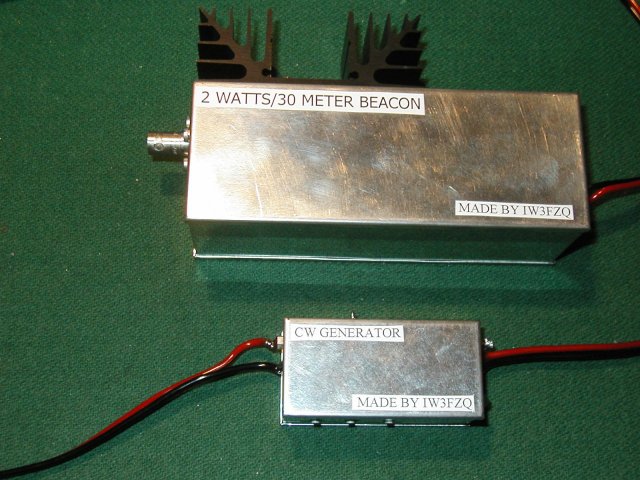

      1) The "two boxes". Above you can see the
      transmitter and under the CW generator.

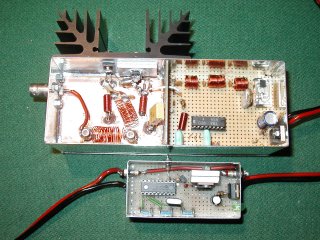

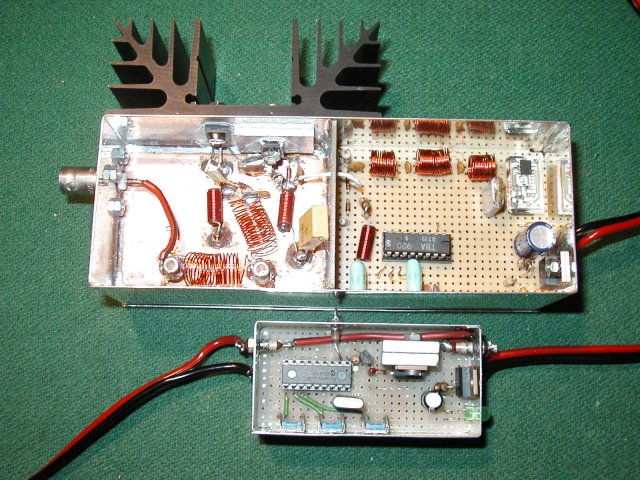

2) Internal view of  beacon.

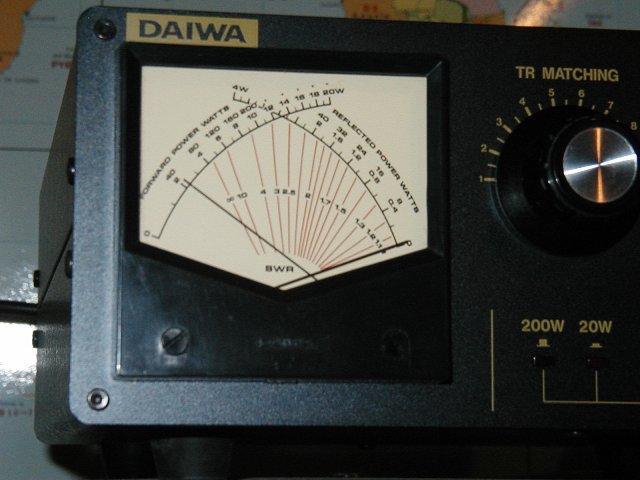

3) First test: 2W output, it's all OK.




4)  First time "on the air"!!!!

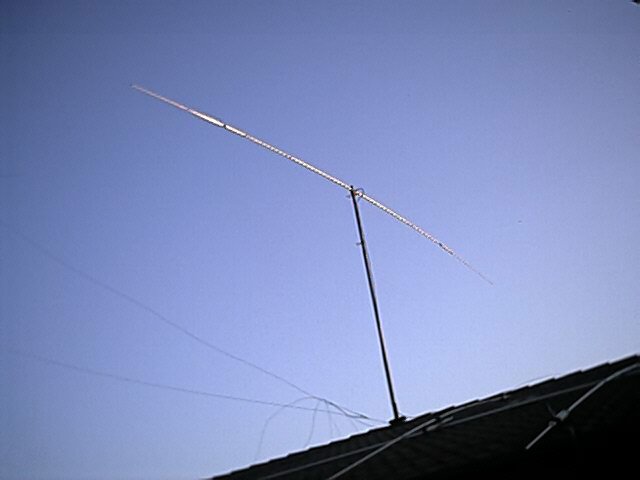

 5) View of the dipole antenna.
          At present the direction is East-West.




7) All the reports will be appreciated via
 bureau, e-mail ik3nwx@libero.it  or direct:
Silvano Zambon, Via D. Bramante 12
45100 Rovigo (Italy)
