AIR FORCE RADIO STATIONS

LAST MODIFIED : December 5th, 1999

Autotreno Radio

Radio Station. High power vehicular. Composed by "Motrice trasmittente" and "Rimorchio ricevente". See RT 1000

B 5

Radio Station. Designed to be installed on the aircrafts where initially were only receiver set or for space were no possibility tp install the B 30 set. Manufacturer Allocchio Bacchini.
Year : 1942
Frequency Range : 2.9 - 5.5 MHz. Xtal controlled. Single channel
Facilities : AM - Voice
Composition :
Receiver type rB 30
Transmitter type tB 5
PSU and Modulator contained in the tB 5
Control box, cables and accessories
RF Output : 5 W
Aerial : Wire
Power supply : 24 V Storage battery.

B 30

Radio Station. First RTX set installed like standard on Italian fighter. Early set no good results for frequency instability and sand infiltration on rotary PSU. Manufacturer Allocchio Bacchini.
Year : 1942
Frequency Range : 2.9 - 5.5 MHz.
Facilities : AM - Voice
Composition :
Receiver type rB 30
Transmitter type tB 30
PSU type alB 30
Modulator type mB 30
Control box, cables and accessories
RF Output : 16-27 W
Aerial : Wire
Power supply : 24 V Storage battery.

B 30T

Radio Station. Same as B 30 but with the possibility to use also CW. Used also like secondary station on multiengine aircraft. In this purpose it had 2 remote controll box.

B 30mT

Radio Station. Same as B30T but modified to solve the stability problem. Main modification was the use of 6T tube instead of EL2 like MO and adjusting accordingly the circuit.

B 30T bis

Radio Station. Further implementation of the B 30mT. Main difference was the introduction of the interphone possibility. The B 30Tbis was used specially on multiengine aircraft for communications among aircrafts

Biga

IMCA 0,4W

VHF Radio station. Borns like ground station experimentally installed with no good results on aircraft fighter during the italian attack to England. Later used like standard set for night fighter.
Year : 1940
Frequency Range : 59 - 64.5 MHz. Single channel Xtal controlled
Facilities : AM - Voice
Composition :
Receiver type IF 607
Transmitter type IF 602
PSU type IF 21S (only fixed installation)
RF Output : 0.4 W
Aerial : Dipole
Power supply : Bry batteries or propelled rotary generator.

IMCA 20W

VHF Radio station. Used like ground controll station for night fighter equipped with the IMCA 0.4W.
Year : 1940
Frequency Range : 59 - 64.5 MHz. Single channel Xtal controlled
Facilities : AM - Voice
Composition :
Receiver type IF 607
Receiver PSU IF 21S
Transmitter type SIM6020
AC Voltage regulator
RF Output : 20 W
Aerial : Vertical dipole
Power supply : By mains

RT 300

Radio station. Ground fixed or semifixed. Used for medium range communications. Year : 1936
Frequency Range : 277-416 kHz, 857-1500 kHz, 3259-6666 kHz
Facilities : RT, MCW, CW
Composition :
Receiver type AR 5
Receiver PSU IF 21S
Transmitter type A 300

RF Output : Around 300 W
Aerial : 3 wire systems. One for each band.
Power supply : By engine driven generator suppling all necessary voltages

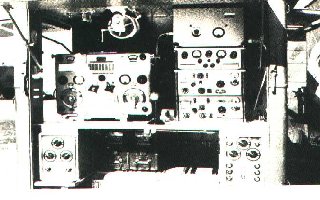

RT 310

Radio station. Ground fixed, semifixed or vehicular. Used for long and medium range communications. Installed on "Biga" were the standard set for ground controll or air support communications. Year : 1940
Frequency Range : 240-441 kHz, 1071-8570 kHz
Facilities : RT, MCW, CW
Composition :
Receiver for SW 850/A
Receiver for LW and MW 741/A

Transmitter type A 310

RF Output : Around 300 W
Aerial : wires system plus counterpoise nets.
Power supply : 12 V dc and a DC/DC rotary generator

RT 1000

Radio station. Also called "Autotreno Radio". High power. Vehicular. Composed by a " Motrice Ricevente" (Receiving truck) and a "Rimorchio Trasmittente" (Transmitting trailer). Used for long range communications

RT 1000 station - Receiving truck

RT 1000 station - Transmitting trailer

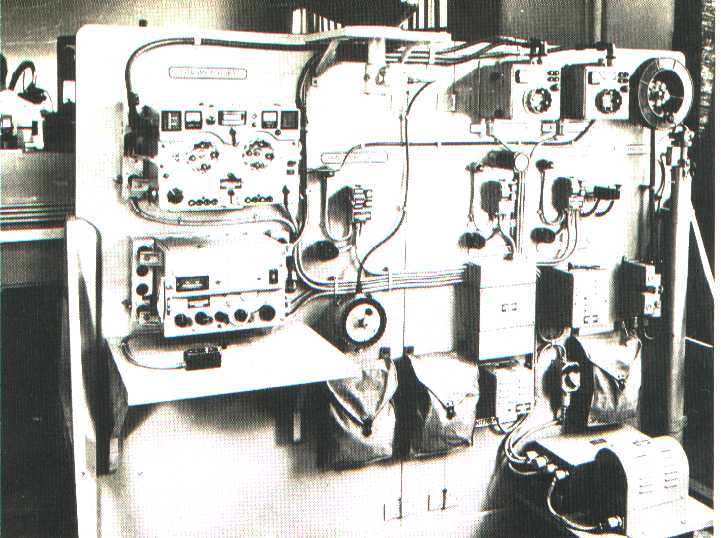

S 90

Radio station.

S 150

Radio station. Set designed to be used on long range bomber. Manufacturer SAFAR. Very modern set. Could be used in many solutions taking out some part.
Year : 1941
Frequency Range : 300 - 500 kHz and 2.0 - 8.6 MHz.
Facilities : CW, MCW, RT
Composition :
Receiver type rS 150
Transmitter type tS 150
Auxiliary receiver type riS 150
Interphone unit type aS 150
Control box, cables and accessories
RF Output : 140 W
Aerial : Wire
Power supply : 3 dynamotors supplies by board 24 V storage battery.
