The
20m Delta loop and the yagi on the background.
The
15m yagi telescopic pole and I2VXJ & IK4MTF.
The 15m
quad tower alone and the 4el 40m on the background.

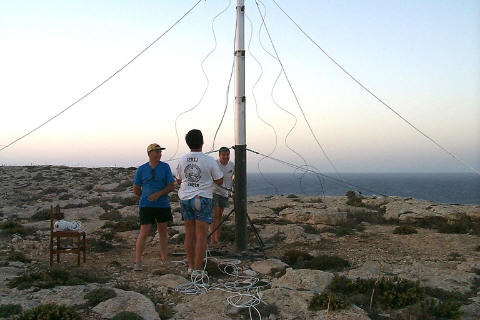

Lifting the 15m pole without antenna to prepare guy wires(I2EOW
I2VXJ IK4MTF).
The 15m
yagi is brought to his pole with a trunk-crane.

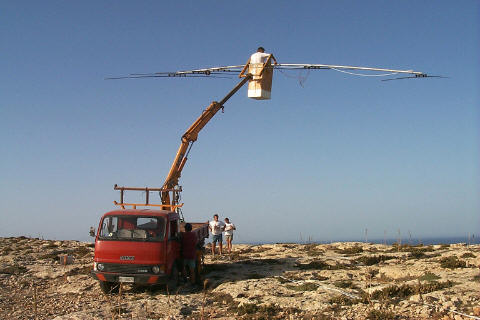

The 15m
yagi is brought to his pole with a crane
(IK4MTF
& I2VXJ are down, IV3TRK is up).
& .. landing.
down to the pole with the 15 antenna.
I2VXJ
wait the 15m antenna to help IV3TRK fixing on the mast.

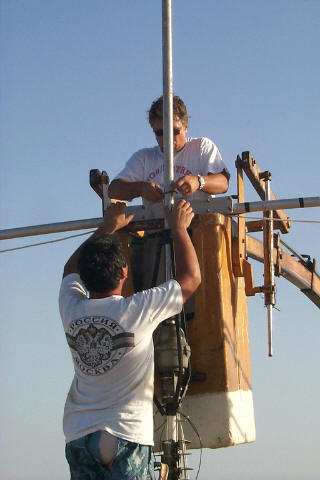

I2VXJ
help IV3TRK fixing the 15m yagi on his mast.
The big 15m yagi is finally installed on the top of the 12m
pole,just near the cliff drop. IK4MTF has an own way to describe
thistype of
installation.

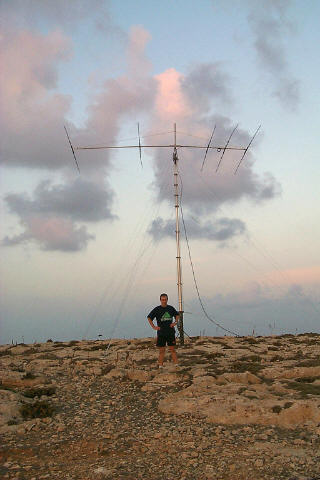

IK2QEI Steve below the big 15m yagi.

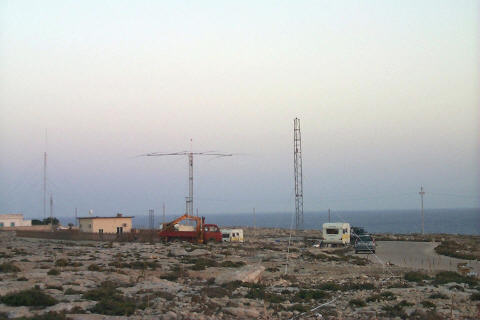

Rigth to left, the 15m yagi, the tower for the 15m quad, the
20mYagi,
the 80m vertical, the 20m delta loop.

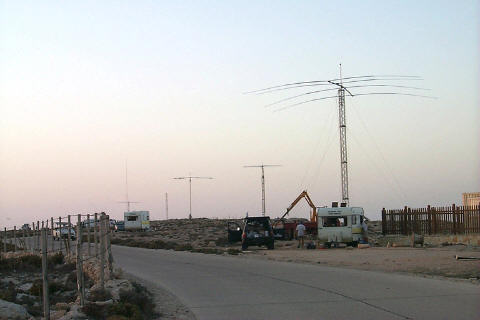

The 4 elements yagi for 40m has ben installed on the tower
withThe
trunc crane. Later, the tower will extended up to 20m.
The
huge vertical (near full size) for 160m.
Rigth
to left, the 40m yagi, the 10m yagi, the 15m yagi, the tower for the 15m quad,
the 20m Yagi, the 80m vertical, the 20m delta loop.
The 20m
Delta loop and the yagi on the background.
Right
to left the setups of 15m to 160m on the way to be installed.
The 20m
yagi finally dominating the sea at sunset.
The guys
of the 160m vertical are & ..a lot !

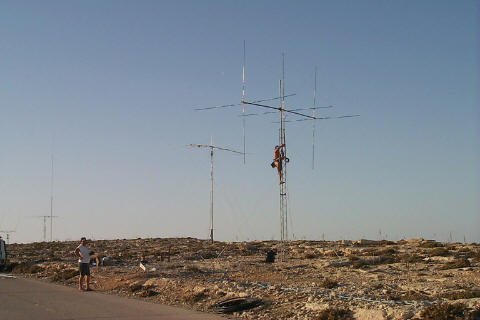

IK4MTF
(109Kg declared weight) climbs like a squirrel to install the 15m 3 elements
quad on the tower.
The
antennas for the 15m band are finally installed.
The 15m
yagi heading USA, on the background the 80m vertical and the 20m
antennas.
10
meters and 40 meters (extended tower), behind there is the 160m
vertical.

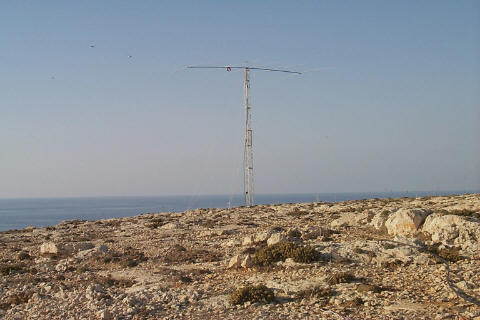

The 20m
yagi heading east.
The
IG9A stations seen from the 20m side.

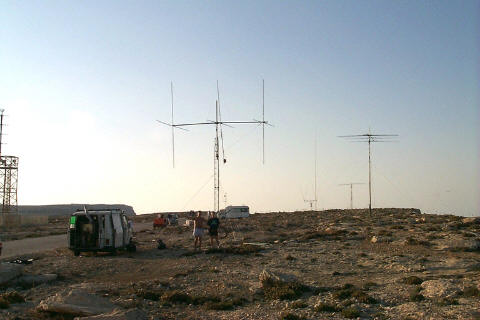

A view
of the 15m quad and the van uses as the shack.

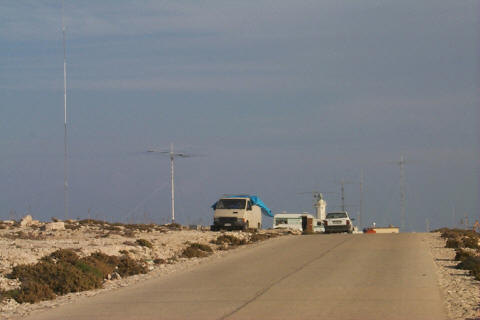

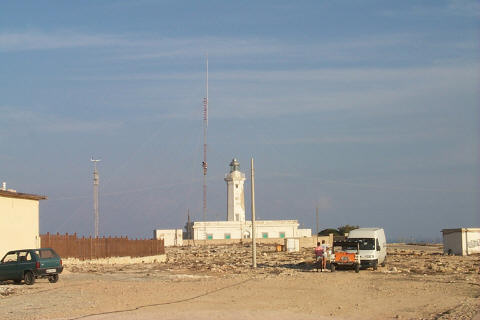

The
160m vertical and the van used as the shack.

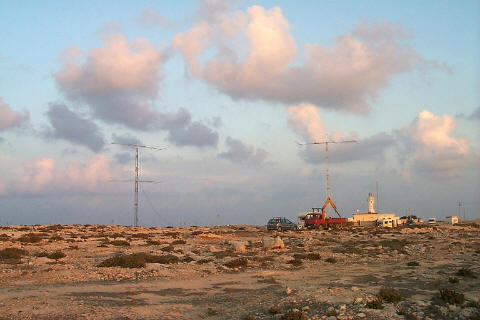

All the
antennas from one of the 160m guy base.
All the
antennas from one of the 160m guy base at sunset.

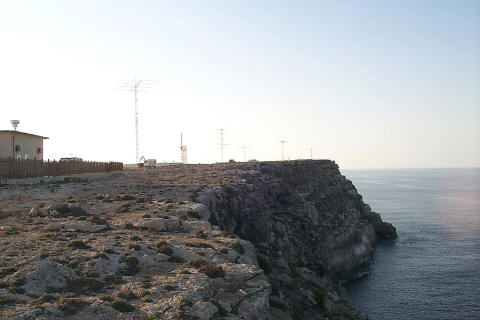

All the
setup is placed on a natural tower of about 60m.

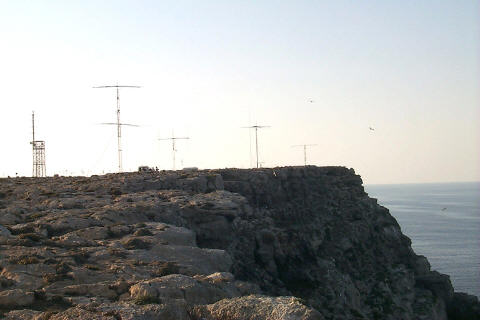

A view
of 10, 15 80 and 20 meter antennas.
The
160m vertical, something very close to a quarter wave full size radiator with
about 100 radials.
The
antennas and the shack of the 15 meters band.
The
antennas of 10 and 40 meters.
80
(right) and 20 meter setusps.
Left to
right, 10 40 & 160 meter antennas.
One of
the beverage grapes, not tasty but quite efficient.
The
"day after", all the antennas disappeared.
