HF Transceiver I6WJB & I6YPK


             The transceiver that you can see in the photo is the result of numerous workhours of Pierluigi (I6WJB) and myself (I6YPK). It has been built in two specimens. It is running since several years in our stations and has given us big satisfactions.

           The project of the complete RF part is made by Pierluigi while I was occupied on the digital part (micro,DDS and part of PLL)

        I6WJB has a long experience on the building of receivers and transmitters for all frequencies, but we have had the idea to build a RTX at three conversions like this one (the first UP Conversion) thanks to the availability of some professional  8 poles - 70 MHz Crystal Filters. Unfortunately, these filters are not easy available.

           The mechanical filters at 48 KHz have been  recovered on the surplus as well. They are a little wide (about 3 KHz) than the standard filters for SSB of 2,4 KHz since they are for telephonic use, but they have very steep sides and are almost free of charge!!


            Hereafter you can see the block diagram of the main characteristics of the RTX HF1. Of course, the characteristics of the RF part are very important but the digital part as well.
       Therefore, the presence of the microprocessor allows to do all those operations that are usually not possible on an RTX with analogic VFO, and therefore I have included a lot of commands like: double VFO, RIT, memories, possibility to operate SPLIT, bottom CW, ecc.






"HF1"  0 - 30 MHz  all mode transceiver

Features
=======
1 Hz Step Frequency Synthesizer
The Frequency Synthesizer is a combination of  DDS (AD7008 Analog Devices) and PLL

Wide Dynamic Range
The receiver employs double balanced diode mixer (designed by I6WJB)

Remote operation
Via RS232 Computer interface




Technical Specifications

GENERAL

Tx - Rx Frequency:                         100 KHz ~ 30 MHz
Emission modes :                          USB, LSB, CW, AFSK,  (AM only in Rx mode)
Tuning  steps :                                1 / 10 / 100 / 1000 Hz
Antenna impedance:                      50 ohms
Supply voltage:                               13,5 VDC
L.O. Phase Noise :                         -90 dBc at 1 KHz

RECEIVER

Circuit type:                                   Triple conversion
Intermediate frequencies:            70 MHz  crystal filter (15 KHz bandwidths)
                                                        2,5   MHz  crystal Filter
                                                        48 KHz  mechanical filter
Sensitivity (14 MHz) :                    SSB (3,1 KHz bandwidths)     0,7 uV x 12 dB S/N (pre off)
                                                         SSB (3,1 KHz bandwidths)    0,4 uV x 12 dB S/N (pre ON)
Noise Figure:                                 13 dB PRE-OFF  /  8 dB PRE-ON
AGC control:                                  Less than 3 dB rise in audio output for 120 dB signal increase from noise
                                                         floor  (PRE-OFF)
Audio power :                                3 watts into 8 ohms
Spurious Rejection :                      > 70 dB
3rd Order Intercept Pt. :                + 25 dBm
Dynamic range :                           120 dB (RF pre-amp OFF)


TRANSMITTER

Intermediate frequencies:           70 MHz  crystal filter (same of RX)
                                                       2,5   MHz  crystal Filter (same of RX)
Output Power :                             SSB / CW adjustable  10 Watts  (class A) into 50 ohms
Spurious, Harmonics :                at least 50 dB below peak output
SSB carrier suppression :          at least 40 dB below peak output



HF1 block diagram :


HF1_BLOC.DWG    (Circad 98 )


Some photos :

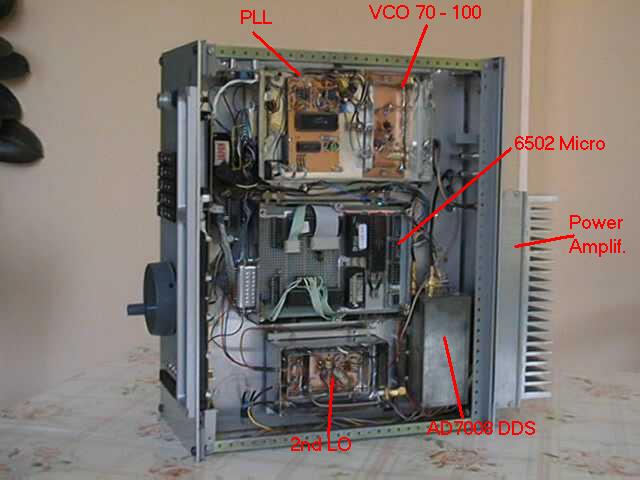

    Top view  "Low Resolution" 39K"  o "High Resolution" 117K"

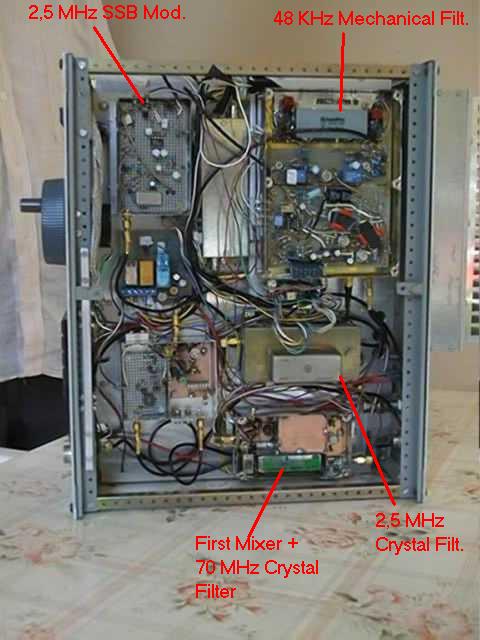

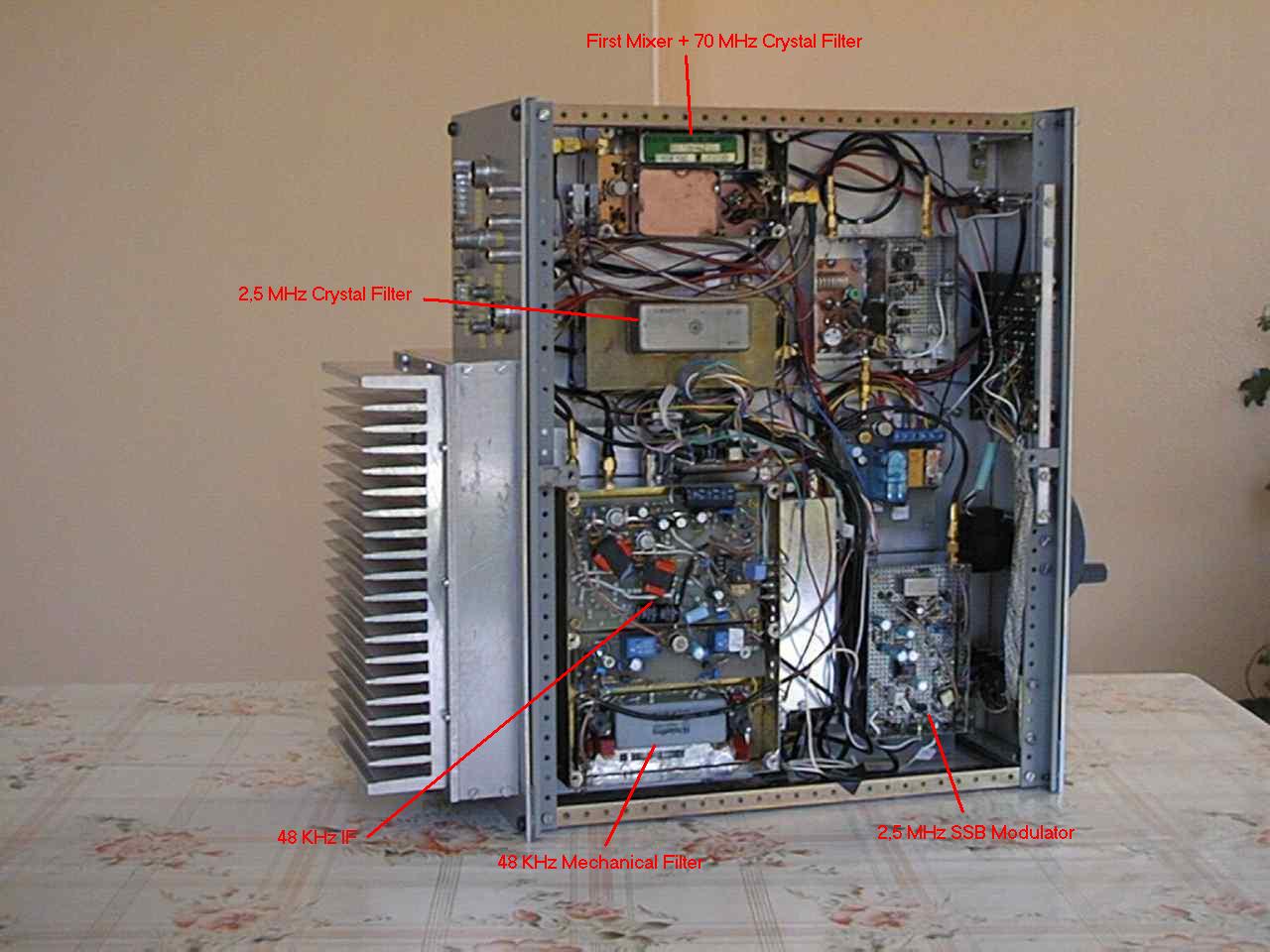

    Bottom view "Low resolution" 50K" o "High Resolution" 138K"

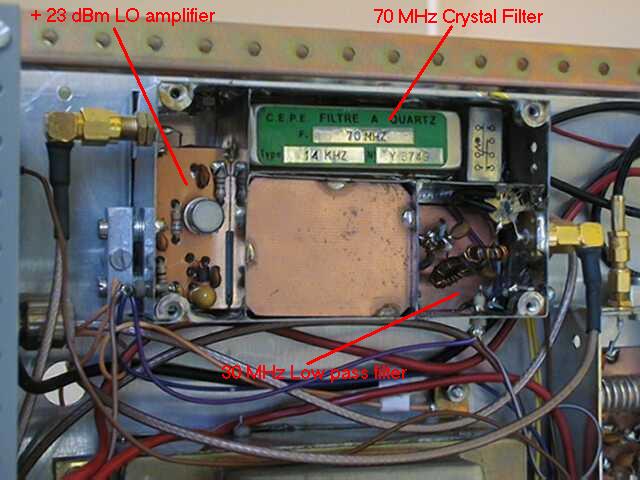

    First Mixer + 70 MHz Crystal Filter (53K)

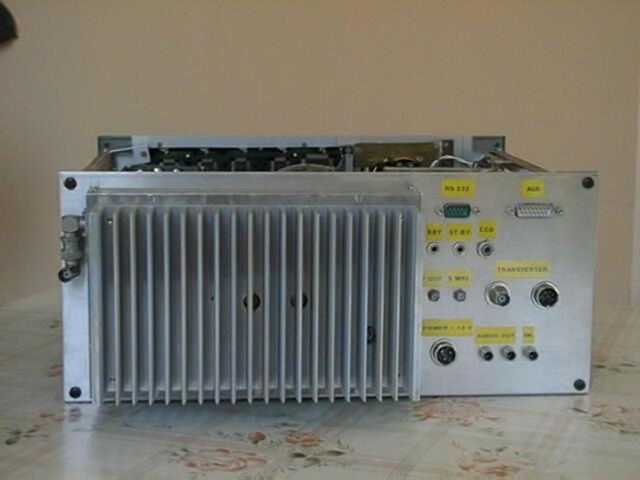

   Rear View (20K)

   Front View (25K)
