80m ANTENNAS AT I5JVA

e-mail: i5jva@qsl.net



I5JVA ,   New ( 2012 ) 3.8 antenna system at QRZ.com

all the antennas are build with the HFW2 wire

3.8 MHz system

On one tower 40 m ( 131.2 Ft ) high:

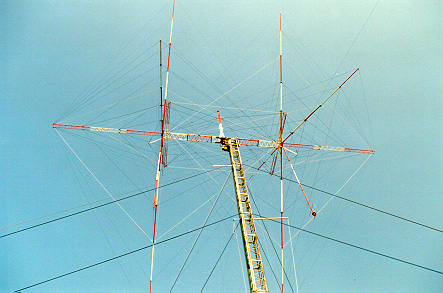

Giovannini 2- element quad Mod. C 280/2 Distance between radiator and reflector: 10 m ( 32.8 Ft ); Boom length with extensions: 28 m ( 91.86 Ft ); Weight of the only antenna:  660 Kos  ( 1465 lbs )

i5jva 3.8 quad.jpg (85373 byte)

Click on the image to enlarge it.

i5jva 3.8 quad boom.jpg (149380 byte)

Click on the image to enlarge it.


Click on the image to enlarge it.
