10 - 40m ANTENNAS AT I5JVA

e-mail: i5jva@qsl.net





28-24-21-18-14-7 MHz systems

On one tower 24 m ( 78.74 Ft ) high:

  Giovannini Quad Mod. C 240/35/2 with 2 elements in 7 MHz and 3 elements in the other waves of frequency. Boom of 9 m ( 29.5 Ft ) with the extensions; Weight of the only antenna:   89 Kos ( 197.5 lbs )

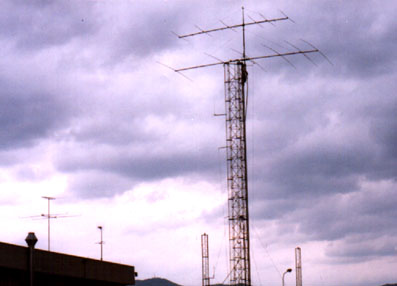

In the second positioning it is available one 30 m ( 98.42 Ft ) tower with the installation of 2 yagi antennas of 6 elements each for 14 and 28 MHz.

The antenna for 28 MHz is in a distance of 5 m ( 16.4 Ft ) compared with the one for 14 MHz. The antenna boom for 14 MHz is 18 m ( 59 Ft ) whereas the one for 28 MHz is 13 m ( 42.65 Ft ).

For 160-80 and 40 m there is  installed a  WV 160/80/40 , vertical wire antenna, which avails itself of 3 vertical radiators, 1/8 of wave in 160m , and of wave in 80 and 40 m. The radials are  8 m ( 26.24 Ft ) hightened from the ground, and sloped. 8 radials are 19 m ( 62.34 Ft ) long and 8 others are 10 m ( 32.81 Ft ) long .

Furthermore 4 receiving antennas of beverage type Mod. R/40 and one D2T

are installed.


Click on the image to enlarge it.



yagi uff.1 big.jpg (22730 byte)

Click on the image to enlarge it.

yagi uff 2 big.jpg (25534 byte)

Click on the image to enlarge it.
