The reception of OK1FIG, M0BMU and MM0ALM during
the transatlantic test of Friday, January 12,  2001
at the QTH of I2PHD (JN45SL) with a TS850
and the 14 MHz HF dipole as antenna...

The RX was tuned at 135.7 kHz USB, so add this value
the the frequencies displayed
(e.g. 300 Hz correspond to 136 kHz, etc.)

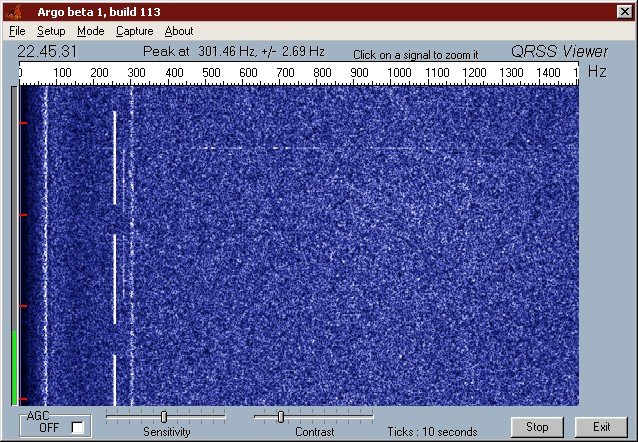

These are OK1FIG and MM0ALM in waterfall
mode

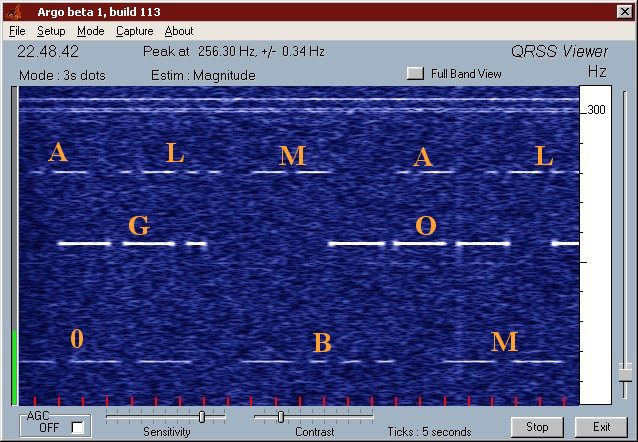

Here we have a pile up (sort of...) !
MM0ALM,  OK1FIG  and M0BMU

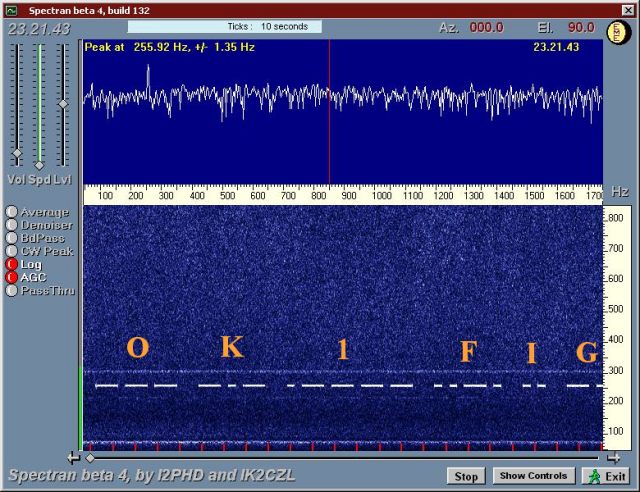

This is again OK1FIG (really strong...)
received with Spectran. The faint signal below it, is that of M0BMU

It was also possible to receive OK1FIG aurally, in all comfort
