Versatower BP60 - Baseplate/post dimensions for a standard BP60 (13M20) Versatower

September 2010 - Scroll down this page for some photos of a 6BP6 (Heavy duty) Versatower baseplate

Original (precise) Imperial dimensions are as shown below - metric dimensions are approximate equivalents.  Galvanising means all measurements are +/- 1mm










_________________________________________________

  Baseplate  (1)  (square)    12mm thick   36” square (914 x 914mm)

   4 sleeved holes in baseplate - centres 30” (762mm) centre-to-centre. Sleeves are 1.5” (38mm) long, ID 27mm, OD 33mm.

_________________________________________________

   Post (1)  72” (1830mm) high     5.125” (130mm) square tubing (estimate 10mm wall thickness)























_________________________________________________

Webs (4)       Front (2)    each   860 x 745 x 455mm

                        Rear (2)     each    510 x 295 x 455mm

                        each 3/8” thickness


_________________________________________________

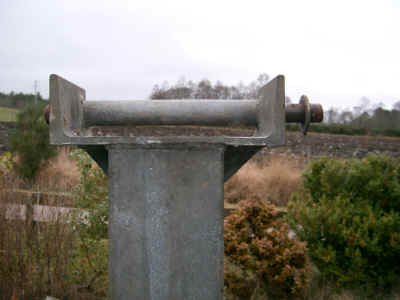

Top plate  (1)     Rectangular     255 x 140mm x 3/8” thick + tube  *


_________________________________________________

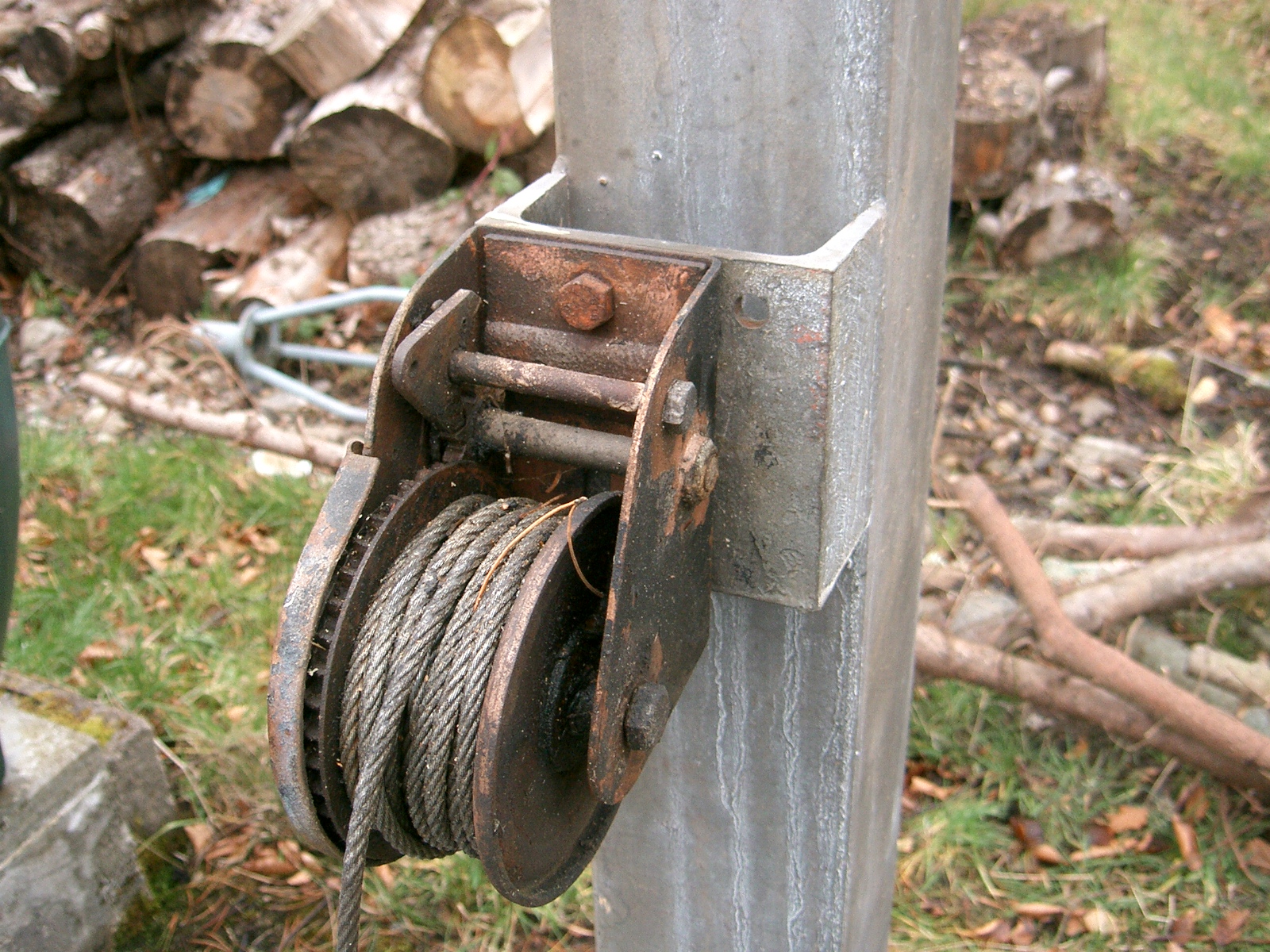

Winch mounting bracket  (1)   front is 128 x 128mm      *


_________________________________________________

Pulley mounting brackets (2 - one front, one rear)    *

_________________________________________________

Tilt rode (1)    *


* = more detailed information may be required for manufacture.

_________________________________________________

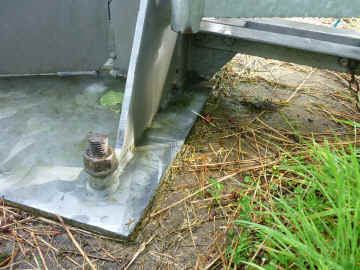

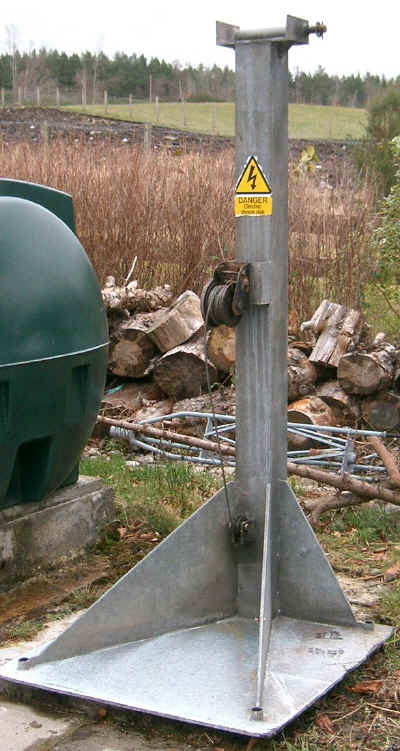

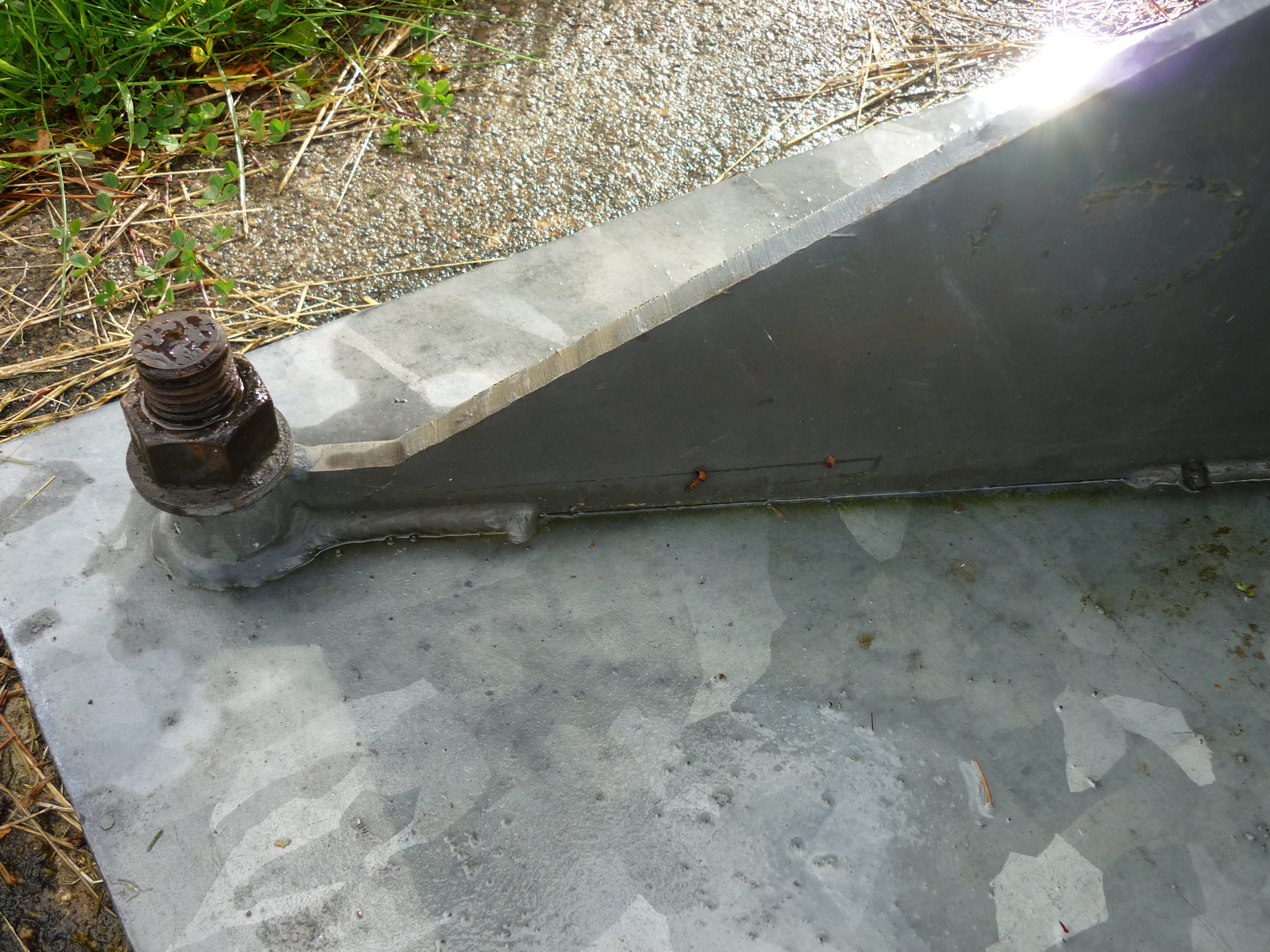

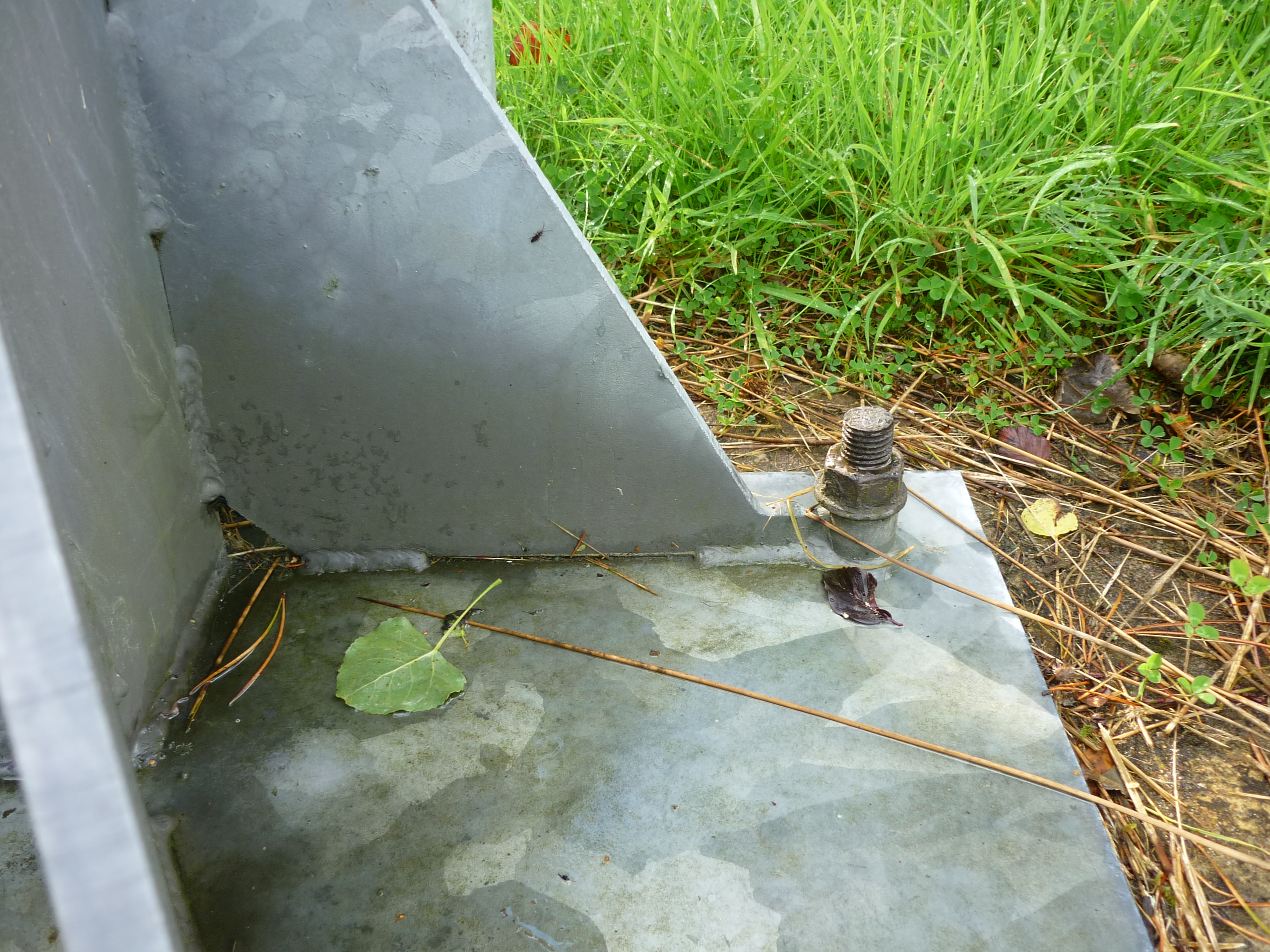

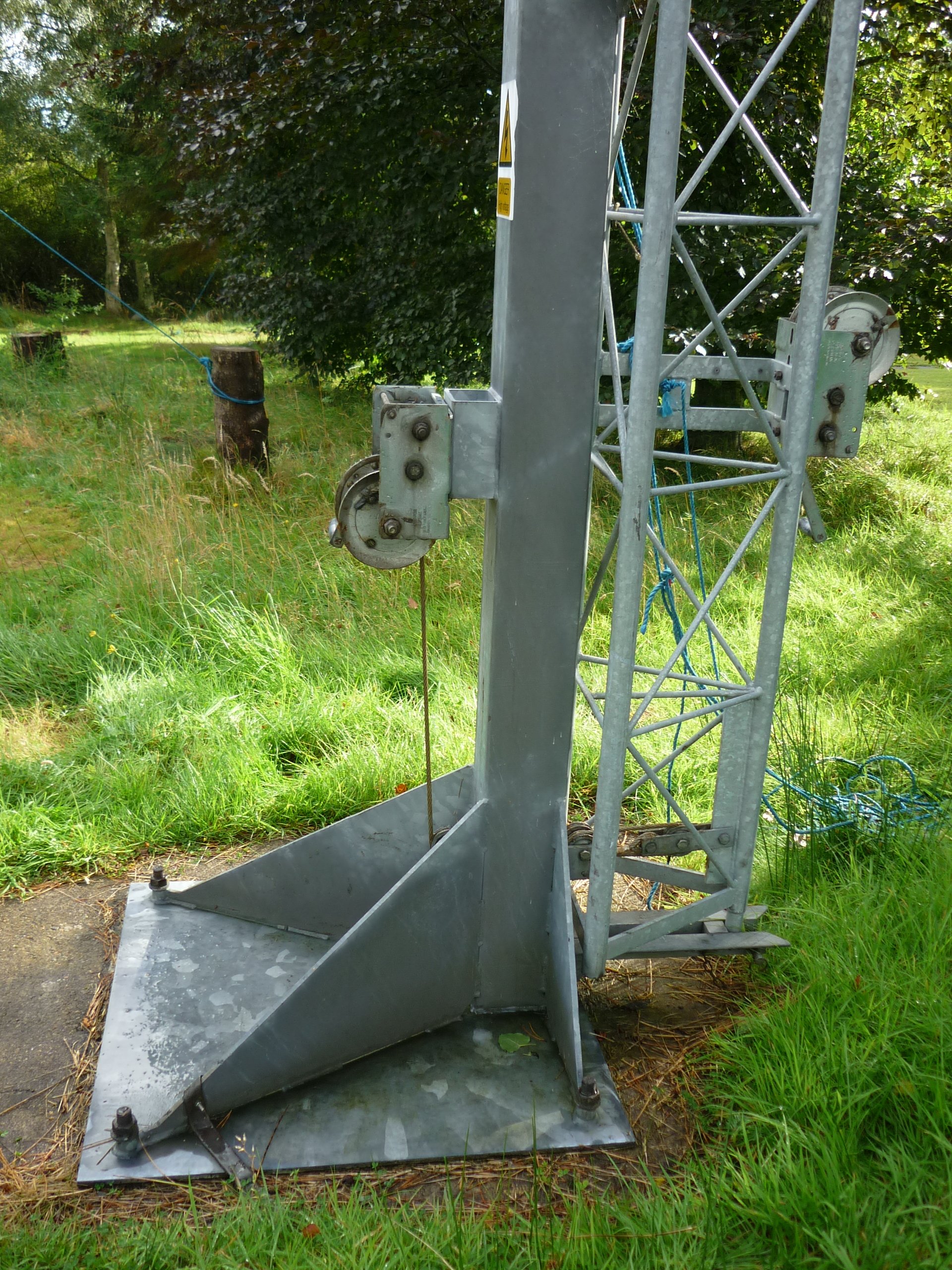

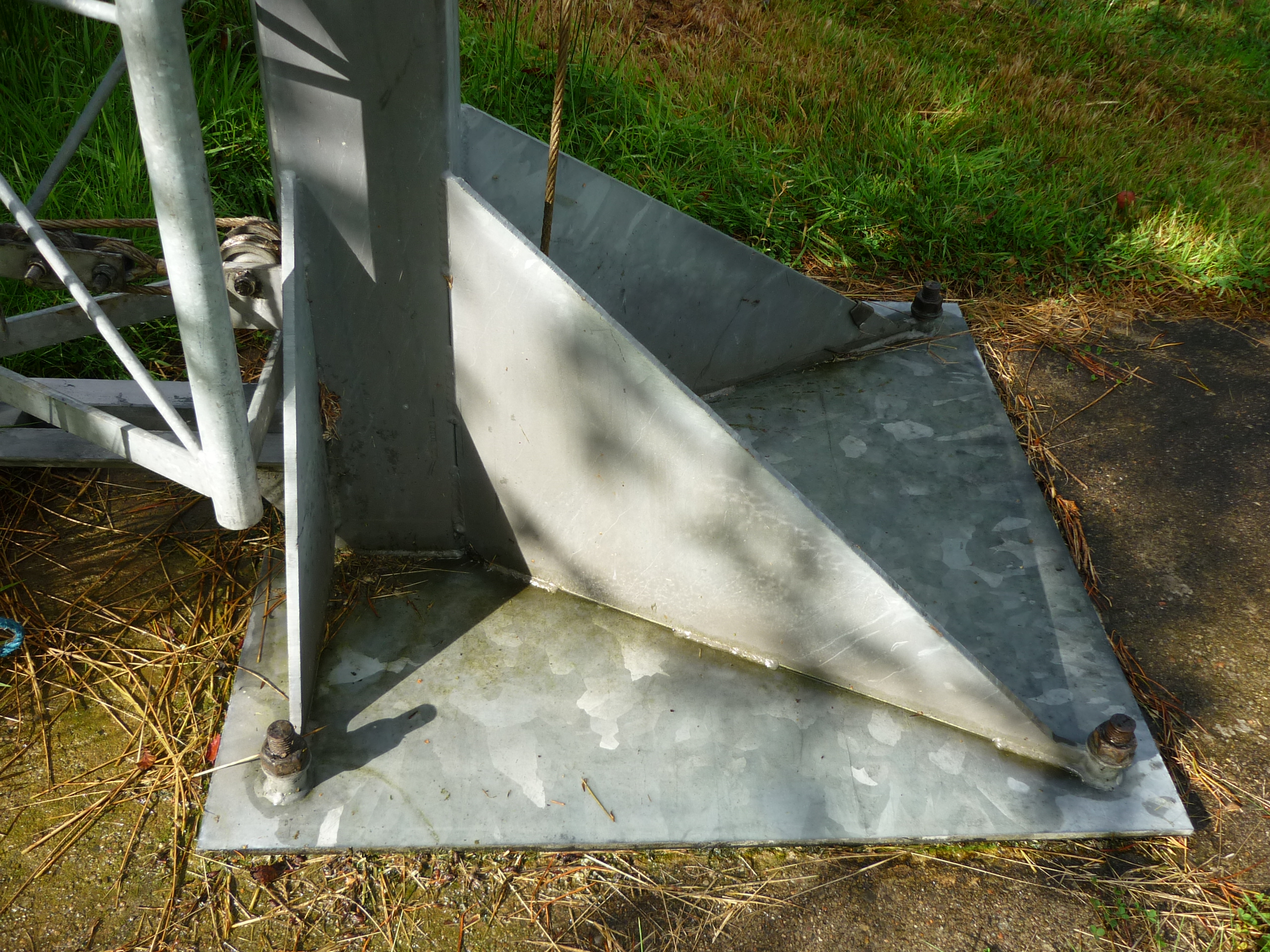

Photos of 6BP6 HD Baseplate - click on any photos for close-up (= 2.5MB approx)
