GB3PT - the new TV repeater for Southampton



Latest news!

Feb 2003 - No license yet ...but on Monday 24th February Giles, G1MFG carried out an evening of tests from the new Thornhill site.  Tony, G3KTU, has compiled a collection of pictures of stations received - take a look here.

Jan 2003 - We are currently awaiting frequency clearance from the primary user on 23cms.  Keep watching http://www.coldal.org.uk/vetting.htm for the latest news.

July 9th - Letter from RSGB stating RA had acknowledged receipt of application - the clock starts ticking NOW!

June 2002 - Application submitted in June 2002 batch to RA

28th May 2002  - G8CKN has confirmed that all the paperwork has been completed and the GB3PT application has been sent off to the RSGB.



Thornhill

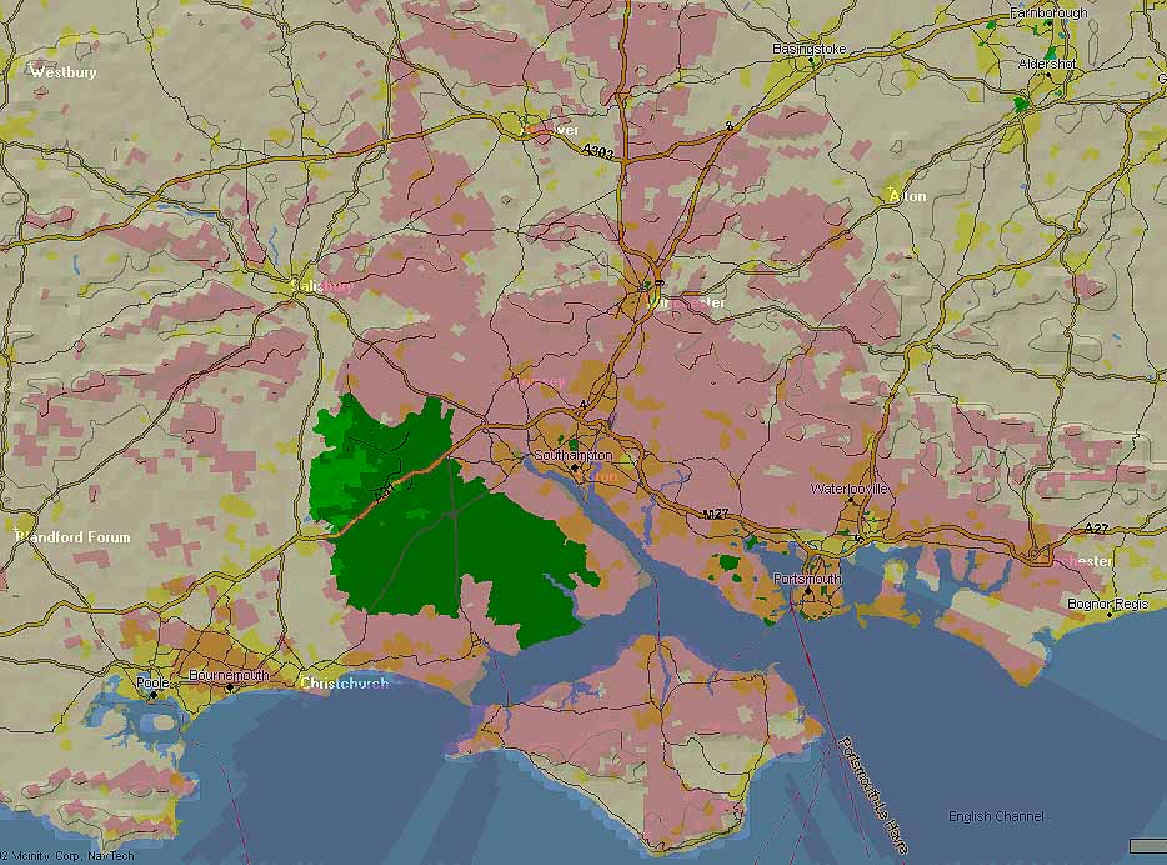

SCART has applied to site a new 23cms TV repeater (GB3PT) at the BT microwave mast at Thornhill (click for exact location) near Hedge end, Southampton.  The anticipated coverage is seen below.


We have been offered space on the north leg of the mast at 37 metres but will have a very long feeder run at approximately 100 metres of FHJ 550 giving 5db attenuation.


Unfortunately we will only have one feeder and will either have to down convert to UHF at the top of the mast or suffer the loss on the receive signal.

We are currently undertaking a series of tests before committing ourselves to the expense of the aerial installation etc but results look good.  These tests are being done using an Alford Slot with a gain of about 5db - the final aerials will have more gain - on 1284 MHz.

Results so far are as follows:

Callsign

 Received from site

Received at site

G8LES P5 P5
G0GMK P5 P5
G0LFI P3.5 P3
G7PNW P1 Syncs
G8CKN P5 P5
M1BAI P1 Not seen
G7GNA Not seen* Not seen*
G0API P3.5 P3
G3KTU P2 P1.5
G0SBV P5 No Tx
G1APD P5 P5
G0LPP Not seen* Not seen*
M0JTT P5
G3NZL P3 P2.5

* Possible equipment problems.

We will be publishing further test schedules by email.
