SSTV / FAX



SSTV IS STILL ALIVE AND WELL ON THE HAM RADIO BANDS AND THERES BEEN SO MANY SOFTWARE PACKAGES DEVELOPED OVER THE YEARS ITS DIIFICULT TO KEEP UP WITH THEM ALL. A LOT OF WHAT YOU WILL SEE ON YOUR SCREEN   WILL BE MODES CALLED MARTIN 1 OR SCOTTIE. THERE ARE NEW  DIGITAL MODES TO BE CONSIDER ALSO. A GOOD PLACE TO LOOK FOR SSTV IS ON 14.230 MHZ GIVE OR TAKE A FEW KHZ - CHECK THIS PAGE OUT TO SEE WHAT SSTV SOUNDS LIKE

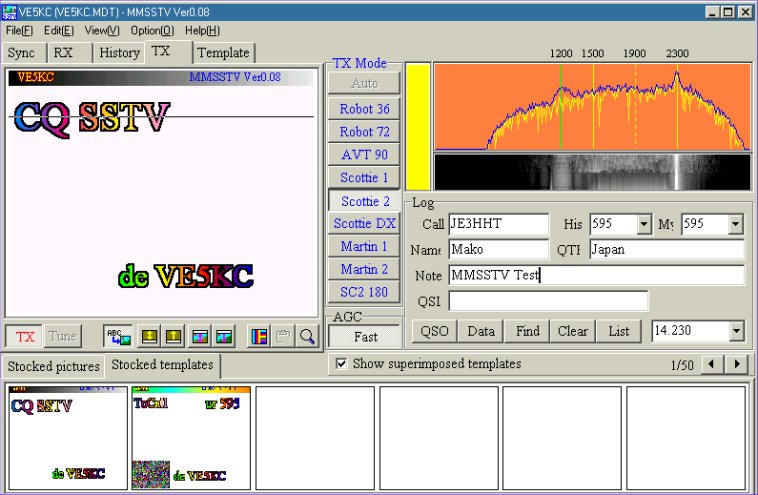

HERES A SCREEN SHOT OF MMSSTV TAKEN FROM THE  MMSSTV SLOW SCAN TELEVISION DOWNLOAD SITE

TO CONTROL YOUR TRANSMIITER TOU WILL NEED AN INTERFACE OF SOME KIND FOR PTT / AUDIO OUT FROM THE COMPUTER  TO THE TCVR MICROPHONE / AUDIO INTO THE COMPUTER SOUND CARD.  THE ONE'S MADE BY BUXCOMMS ARE VERY GOOD BECAUSE YOU CAN ORDER THE CABLE APPLICABLE TO YOUR TRANSCEIVER.YOU COULD MAKE ONE YOURSELF CHECK MY CIRCUITS PAGE OUT   BUT YOU WILL HAVE TO MAKE THE LEAD UP YOURSELF IF YOU WANT TO BUY ONE FROM BUXCOMM'S CHECK IN THE LINKS TABLE



MARINE FAX STATION



HAMBURG , GERMANY

DDH

3.855 MHZ

7.880 MHZ

13.882.5 MHZ

-

-

-

NORTHWOOD. UK

GYA

2.618.5 MHZ

4.610 MHZ

8.040 MHZ

11.086.5 MHZ

KYDO NEWS, JAPAN

JJC

4.316 MHZ

8.467.5 MHZ

12.745.5 MHZ

16.971 MHZ

17.069.6 MHZ

22.542 MHZ

   HERE IS A COLLECTION OF RECEIVED SSTV IMAGES

   EXAMPLE OF FAX IMAGES

  SEATTY DOWNLOAD WILL  DECODE FAX IMAGES / RTTY / NAVTEX

   MULTIPSK A DECODER FOR FAX IMAGES / RTTY / NAVTEX / SSTV AND MUCH MORE

   MMSSTV SLOW SCAN TELEVISION

  RASCAL INTERFACE MADE BY BUXCOMM'S

RASPBERRY PI

THE ONLY SSTV PROGRAM THAT I KNOW OF FOR RASPBERRY PI  IS THE ONE WRITTEN BY 0N4QZ WHICH IS CALLED QSSTV, WHICH I HAVE USED AND WORKS FINE BUT I HAVE ONLY USED IT ON A RASPBERRY PI 3

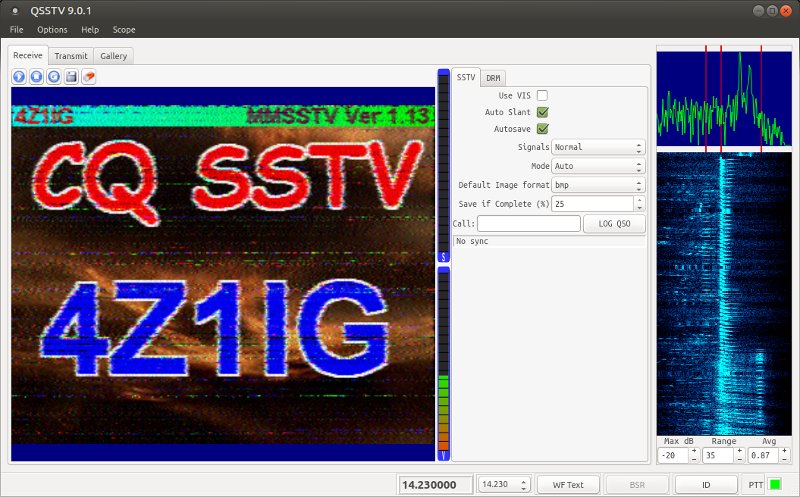

THE ABOVE IMAGE  ( TAKEN FROM THE QSSTV MANUAL ) SHOWS THE RECEIVE SCREEN



THE IMAGE SHOWS THE TRANSMIT SCREEN OF QSSTV

 QSSTV FROM ON4QZ WHICH CAN BE DOWNLOADED FROM HERE

  INSTALLATION INSTRUCTIONS AND PREREQUISITES REQUIRED ( NEEDED BEFORE INSTALLATION )



LE SITE EST ENCORE EN CONSTRUCTION - MAIS TOUS LES LIENS TRAVAILLERONT
