2320 MHz
Rig: Elecraft K2 on 28MHz, Homebrew Transverters to 144MHz and then 2320MHz. Preamp with 2 x ATF-54143, NF 0.77dB
PA: MRF21120 LDMOS PA 120W output.
TX Feeder: 15m LDF4/50 + 2m FSJ4/50
Antenna: Offset fed 60cm satellite dish, with EIA dual dipole feed mounted next to 10GHz feedhorn. 30cm of H100 cable to the preamp. The pictures show the feeds with and without radomes.

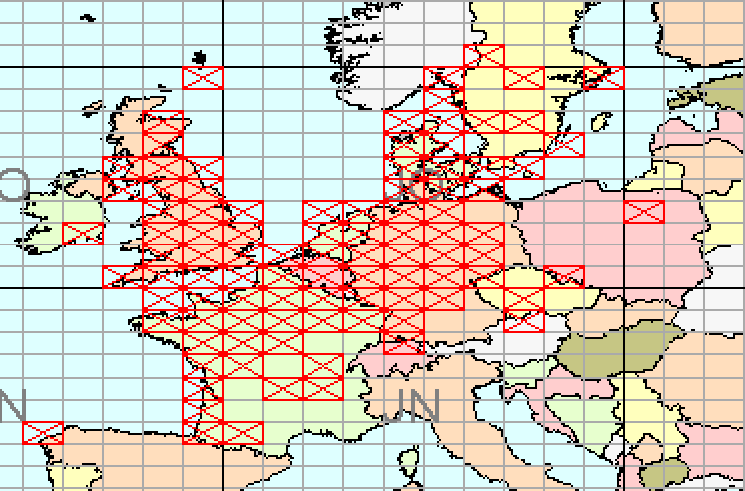

Squares worked: 72
DXCC worked: 14
Best DX: SM0SBI in JO99CF, 1325km
