G3WZT 100W, 50MHz, Single Ended Solid State Linear Power Amplifier

Shown on the following pages is a design for a single stage bi-polar 100-150W Linear Power Amplifier for the 6M band. It was originally published in in "RadCom" June 1986. This PA is a simple, single transistor BLW96 design running from a 48V supply. I am able to supply the BLW96 at a very competitive rate for anyone interested in replicating the design. Unfortunately I cannot supply the circuit board.

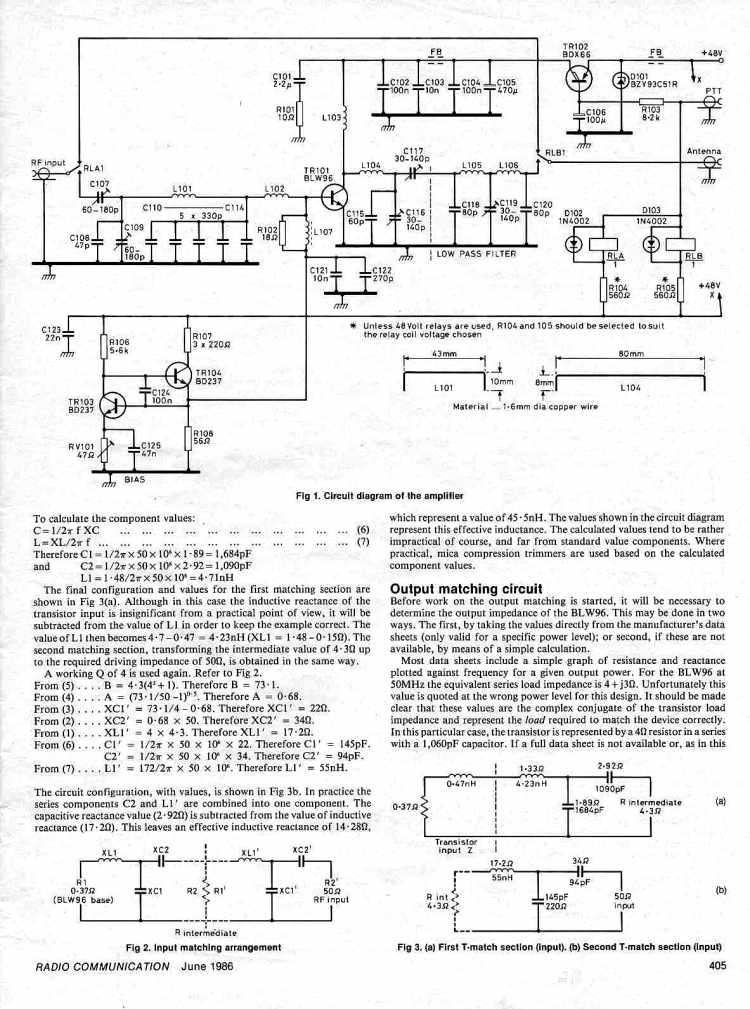

If you would like to download the complete 5 page article as a single zip file then select the button below. Each individual page within the zip is a jpg file and the total zip is approximately 0.5MB. Alternatively you may look at the individual pages starting below.

Go to Pages 3 & 4 of this document
