CABLEADO DE TNCs A DIFERENTES EQUIPOS DE RADIO

En la lista de abajo, estan los esquemas de las diferentes marcas de equipos.

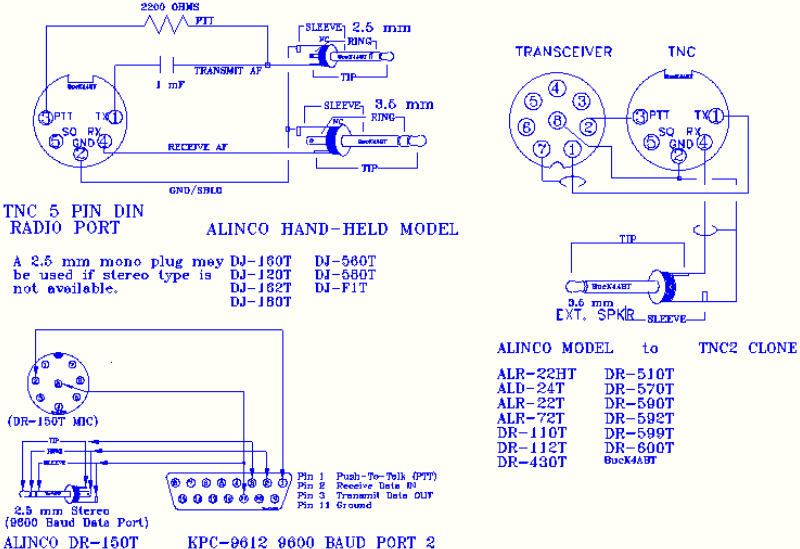

    ALINCO transceivers a varias TNC

  1. ALINCO DJ 120 to MFJ or PacComm (TNC2)

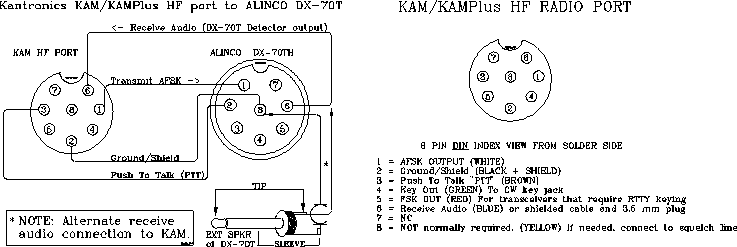

  2. The Kantronics (HF port), KAM/Plus, to the ALINCO DX-70TH.
  3. The Kantronics (9 pin VHF port), KAM/Plus, KPC3, KPC9612 to the ALINCO DR-150
  4. ALINCO 8 PIN MIC connectors to TNC2 Interface
  5. AEA PK-232 to ALINCO DR-590 Twin-Band
  6. Alinco DR-590 to AEA PK-232

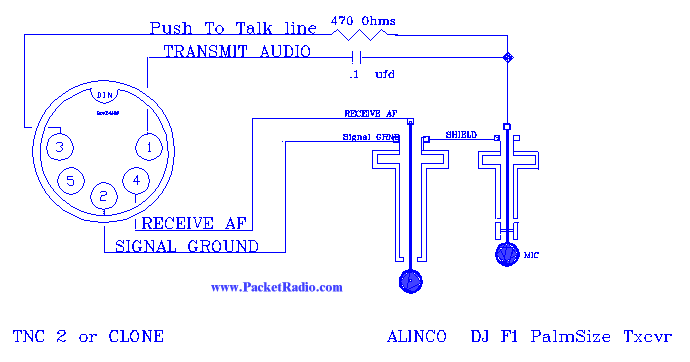

  7. Alinco DJ-F1 HandHeld to MFJ-1270B/C, AEA PK-900 or PacComm Tiny2

    AZDEN transceivers a varias TNC

  8. AZDEN 4000, 5000, 6000, and early 7000 TNC Interface

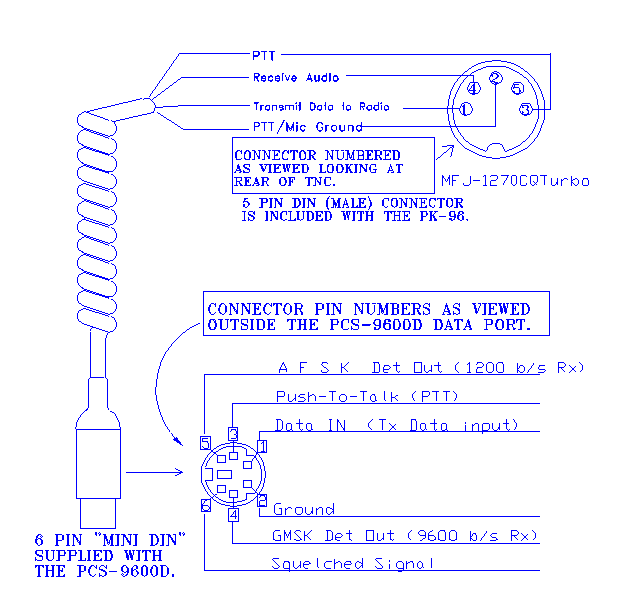

  9. AZDEN PCS-9600D to MFJ-1270CQ/Turbo TNC. This combo operates both 1200 and 9600 bauds.

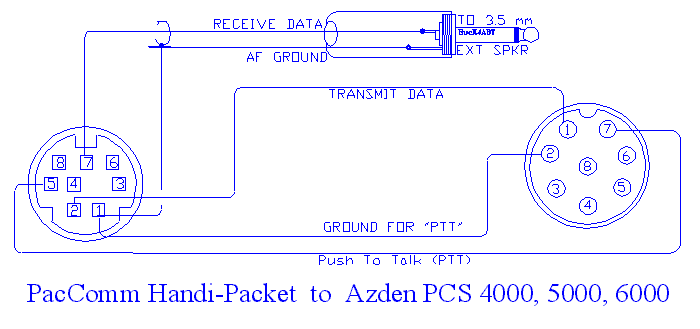

  10. Azden 4000 interfaced to the PacComm "Handi-Packet" TNC.

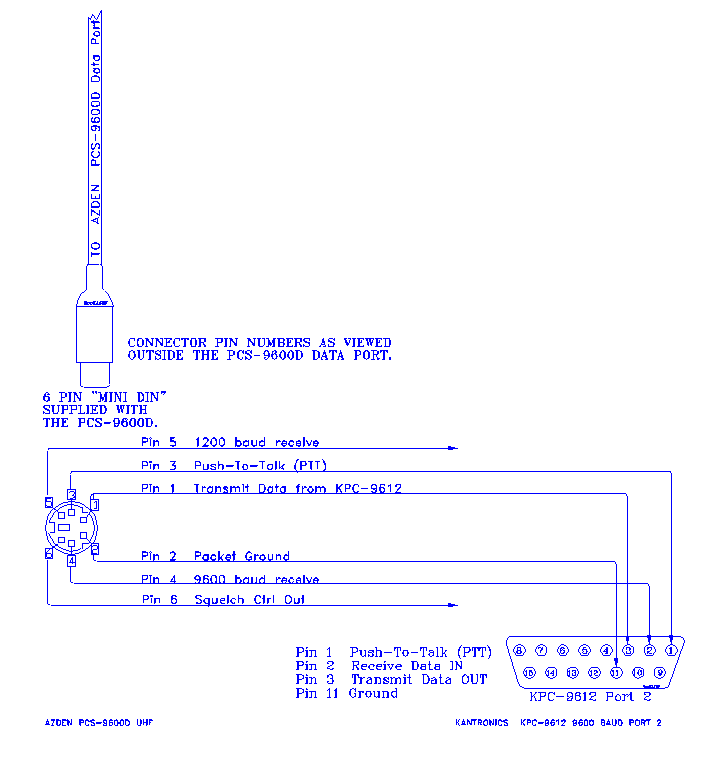

  11. AZDEN UHF 9600 Baud-Ready PCS-9600D interfaced to the Kantronics KPC-9612 TNC

    ERICSSON/GE transceivers a varias TNC

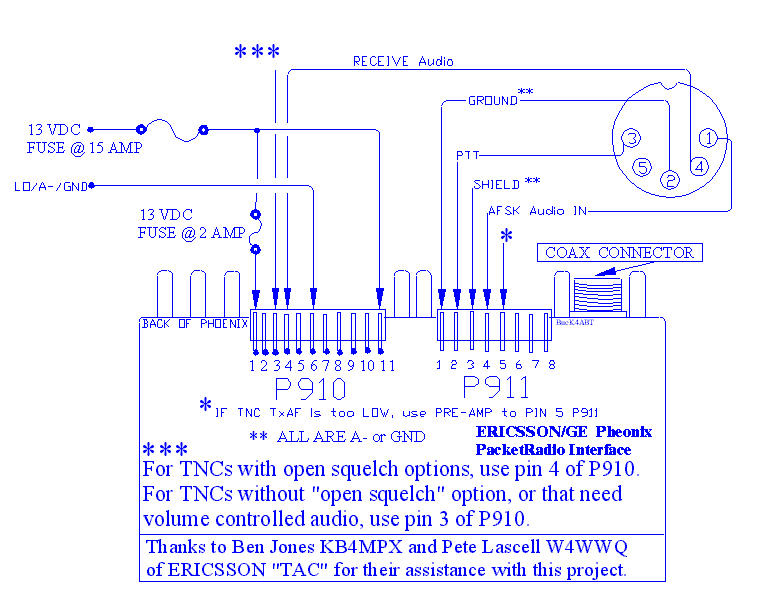

  12. ERICSSON/GE Phoenix to MFJ-1270CQ/Turbo TNC

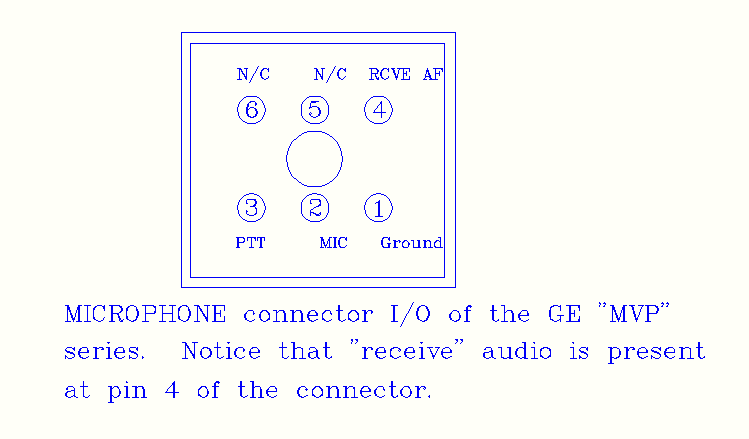

  13. ERICSSON/GE MVP to TNC Interface
    ICOM transceivers a varias TNC

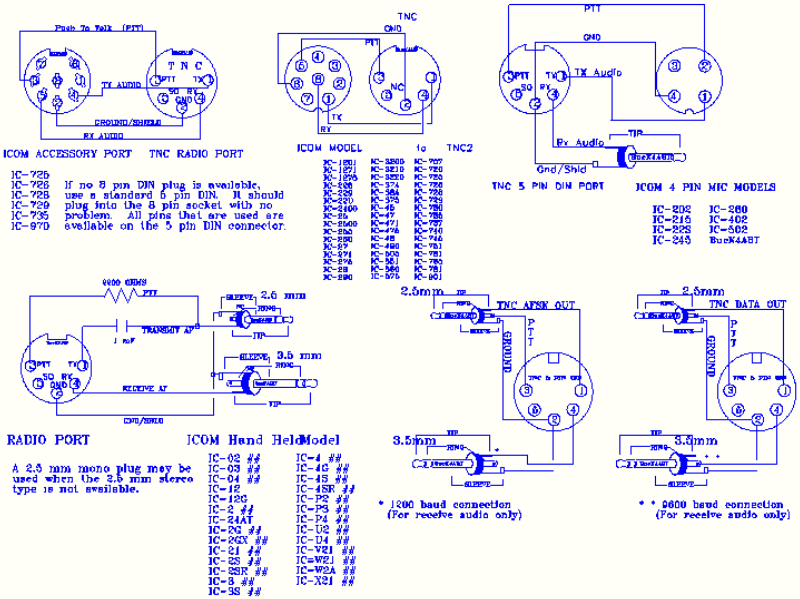

  14. ICOM Transceivers and Hand-Held to TNCees

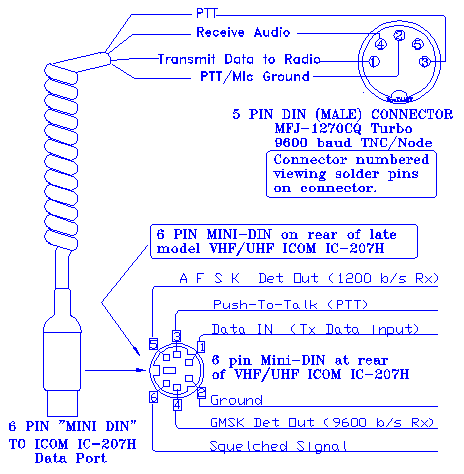

  15. ICOM IC-207 to MFJ-1270CQ Turbo (Both 1200 and 9600 baud port interface).
  16. ICOM IC-746, 756, and 706H's Accessory (ACC1) port (for HF use) to MFJ-1278 MultiMode
  17. ICOM IC-706 to RJ-45 Mic port for 1200 baud operation.
  18. ICOM IC-2100 to MFJ-1270C. 1200 baud I/O.

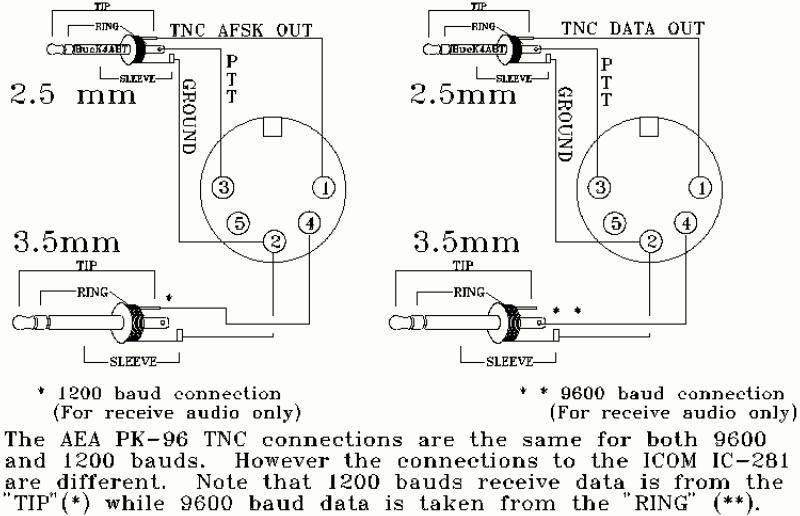

  19. ICOM IC-281 to TimeWave/AEA PK-96 (two ports, 1200 and 9600 baud)

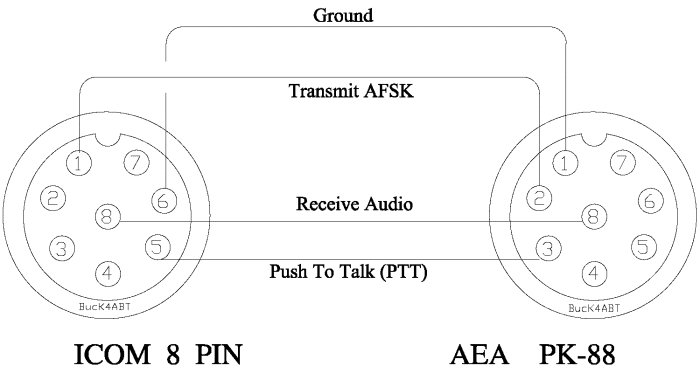

  20. PK-88 (8 pin) to ICOM 8 PIN MIC

    KDK transceivers a varias TNC

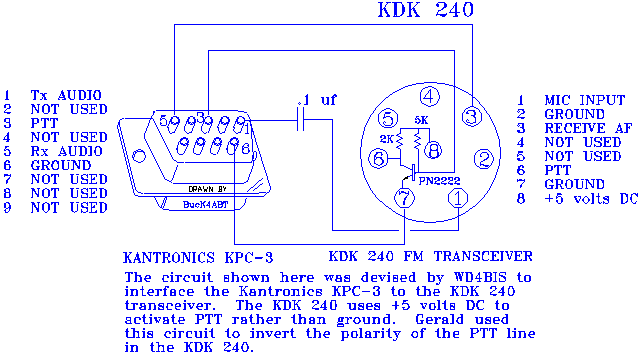

  21. Special PTT circuit for the KDK-240.

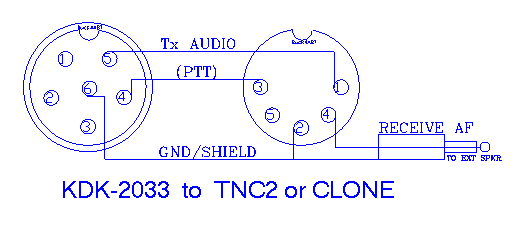

  22. PacComm, MFJ-1270,74,78, or the AEA PK-96 TNC to KDK-2033

    KENWOOD transceivers a varias TNC

  23. Once upon a time, there was a TAPR TNC"1"... and I interfaced it to a Kenwood 4 pin (7400).
  24. Kenwood 8 pin Mic/Radios and Hand-Helds to TNC
  25. Kenwood RJ-45 Mic connector to TNC Interface
  26. HF Kenwood ACCY2 to Kantronics All Mode
  27. SIX (6) Pin Kenwood Mics to Kantronics Packet Communicators (KPC) DE9 connectors.
  28. Kenwood TM-251, Six (6) pin "MINI DIN" 733, and V7A to MFJ-1270CQ Turbo.
  29. KENWOOD TS-450, 950, and KW ACCY2 to AEA PK-900
  30. KENWOOD 2700 series (8 pin) to DRSI PacketAdaptor *PCA

    MIDLAND transceivers a varias TNC

  31. Midland transceivers (13-510, etc) with 4 Pin Mic connections to TNC

    MoToRoLa transceivers a varias TNC

  32. MICOR to TNC Interface box is a quick and easy
    RadioShack transceivers a varias TNC

  33. Radio Shack RJ-45 to Kantronics KPCs & KAM
  34. Radio Shack hand-held transceivers to TNC Interface
  35. RJ-45 MIC I/O of the Radio Shack VHF Mobile to TNC Interface

    Ten-Tec transceivers a varias TNC

  36. Ten-Tec transceivers with 4 Pin Mic connectors to TNC Interface
  37. Ten-Tec transceivers with quarter inch (1/4") Mic connectors TNC Interface

    STANDARD transceivers a varias TNC

  38. STANDARD HandHeld transceiver to TNC Interface

    UNIDEN transceivers a varias TNC

  39. UNIDEN HR-2510 to TNC2 Interface (1200 Baud is legal above 28 MHz).


    REGENCY transceivers a varias TNC

  40. TNC to Regency HR2A/B (An oldie, but goodie)

    KACHINA transceivers a varias TNC

  41. KACHINA 505-DSP, HF Transceiver to MFJ-1278"B"

    Kantronics transceivers a varias TNC

  42. Kantronics KPC-9612 Plus to Kantronics D-410 transceiver.
  43. Kantronics DVR 2-2 transceiver DataPort and Mic I/O.

    YAESU transceivers a varias TNC

  44. YAESU 8 pin mic connections to TNC
  45. TNC Interface to YAESU hand-held transceivers
  46. YAESU mobile transceivers to TNC Interface
  47. YAESU 757 to AEA/TimeWave DSP-2232 MultiMode DSP Controller
  48. YAESU FT-10 and FT-20 VHF and UHF Hand-Held transceivers to 5 pin DIN TNC.
  49. YAESU FT-2500 2 Meter transceiver RJ-45 MIC port to 5 pin DIN TNC
  50. YAESU FT-3000M 1200 and 9600 baud interface to MFJ-1270CQ Turbo, 5 pin DIN TNC.
  51. YAESU FT-51R Dual Band HandHeld transceiver to 5 pin DIN TNC.
  52. YAESU FT-8000R Dual Band Mobile transceiver 1200 and 9600 baud interface to MFJ-1270CQ Turbo.
  53. YAESU FT-8100R Dual Band Mobile transceiver 1200 and 9600 baud interface to MFJ-1270CQ Turbo.
  54. YAESU VX-1R "Ultra-Compact" Dual-Band HandHeld transceiver to 5 pin DIN TNC.
  55. YAESU FT-847 HF/VHF/UHF multimode (1200 & 9600 baud) transceiver to the MFJ-1278B MultiMode data controller.
  56. YAESU FT-920 HF - 56 MHz transceiver to TNC with 5 pin DIN port.

Mira en esta tabla los conectores, con sus correspondientes pins.

Transceiver
Mfg
Radio
Connector
TX AFSK
Pin 1
Ground/Shield
Pin 2
Push-To-Talk
Pin 3
Receive AF
Pin 4
Ext CD
Pin 5
ADI 8PIN Pin 1 Pin 8 Pin 2 Ext Spkr
Alinco 8 PIN PIN 1 PIN 8 PIN 2 Ext Spkr
Azden 6 PIN mini DIN PIN 1 PIN 2 PIN 3 PIN 5 Ext CD PIN 6
Azden 8 PIN PIN 1 PIN 2 PIN 7 Ext Spkr
Drake 4 PIN PIN 1 PIN 3 / 4 PIN 2 Ext Spkr
ERICSSON/GE MVP 4 PIN PIN 2 PIN 1 PIN 3 PIN 4
Icom 4 PIN PIN 1 PIN 4 PIN 2 Ext Spkr
Icom 8 PIN PIN 1 PIN 6 PIN 5 PIN 8
Icom RJ-45 PIN 6 PIN 7 PIN 4 PIN 3
Icom 8 PIN DIN (Acc) PIN 4 PIN 2 PIN 3 PIN 5 Ext CD PIN 6
Icom 13 PIN DIN (Acc) Pin 11 Pin 2 Pin 3 Pin 12 Ext CD PIN 13
Kachina 505 DB25/ACC1 PIN 17 PIN 14 PIN 18 PIN 16
KDK 6 PIN PIN 5 PIN 6 PIN 4 Ext Spkr
Kenwood 4 PIN PIN 1 PIN 4 PIN 2 Ext Spkr
Kenwood 6 PIN PIN 1 PIN 6 PIN 2 Ext Spkr
Kenwood 6 PIN mini DIN PIN 1 PIN 2 PIN 3 PIN 5 Ext CD PIN 6
Kenwood 8 PIN PIN 1 PIN 8 / 7 PIN 2 Ext Spkr
Kenwood RJ-45 PIN 3 PIN 6 PIN 5 Pin 2
Kenwood 13 PIN DIN PIN 11 PIN 4 PIN 9 Pin 3
Midland 4 PIN PIN 1 PIN 2 PIN 4 Ext Spkr
Radio Shack RJ-45 PIN 5 PIN 2 PIN 6 Ext Spkr
Regency HR-2 1/4" Stereo Tip Sleeve Ring Ext Spkr
Ten-Tec 1/4" Stereo Ring Sleeve Tip Ext Spkr
Ten-Tec 4 PIN PIN 1 PIN 2 PIN 3 Ext Spkr
Uniden 5 PIN PIN 1 PIN 2 PIN 3 Ext Spkr
Yaesu 5 PIN DIN PIN 1 PIN 2 PIN 3 PIN 4 Ext CD PIN 5
Yaesu 6 PIN mini DIN PIN 1 PIN 2 PIN 3 PIN 5 Ext CD PIN 6
Yaesu 8 PIN PIN 8 PIN 7 PIN 6 Ext Spkr

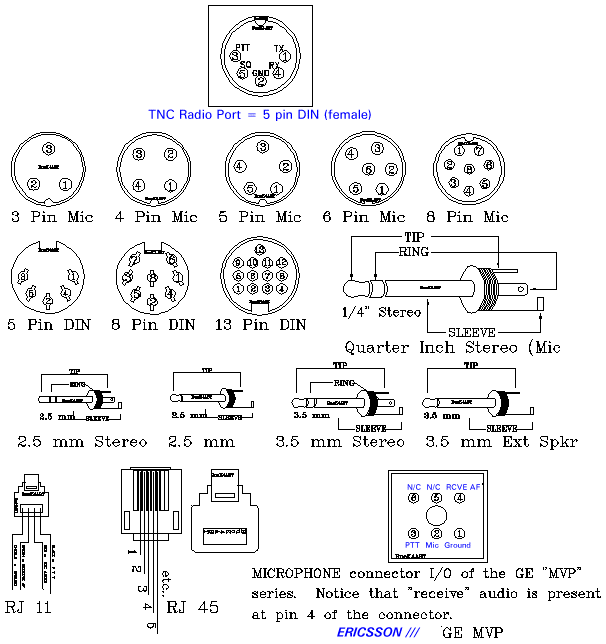

INDICE DE CONECTORES
(TEN CUIDADO, algunos conectores puede que tengan los pins de diferente manera).
