EA3EMG - 1296MHz/10GHz (RX) - QRP EME Log

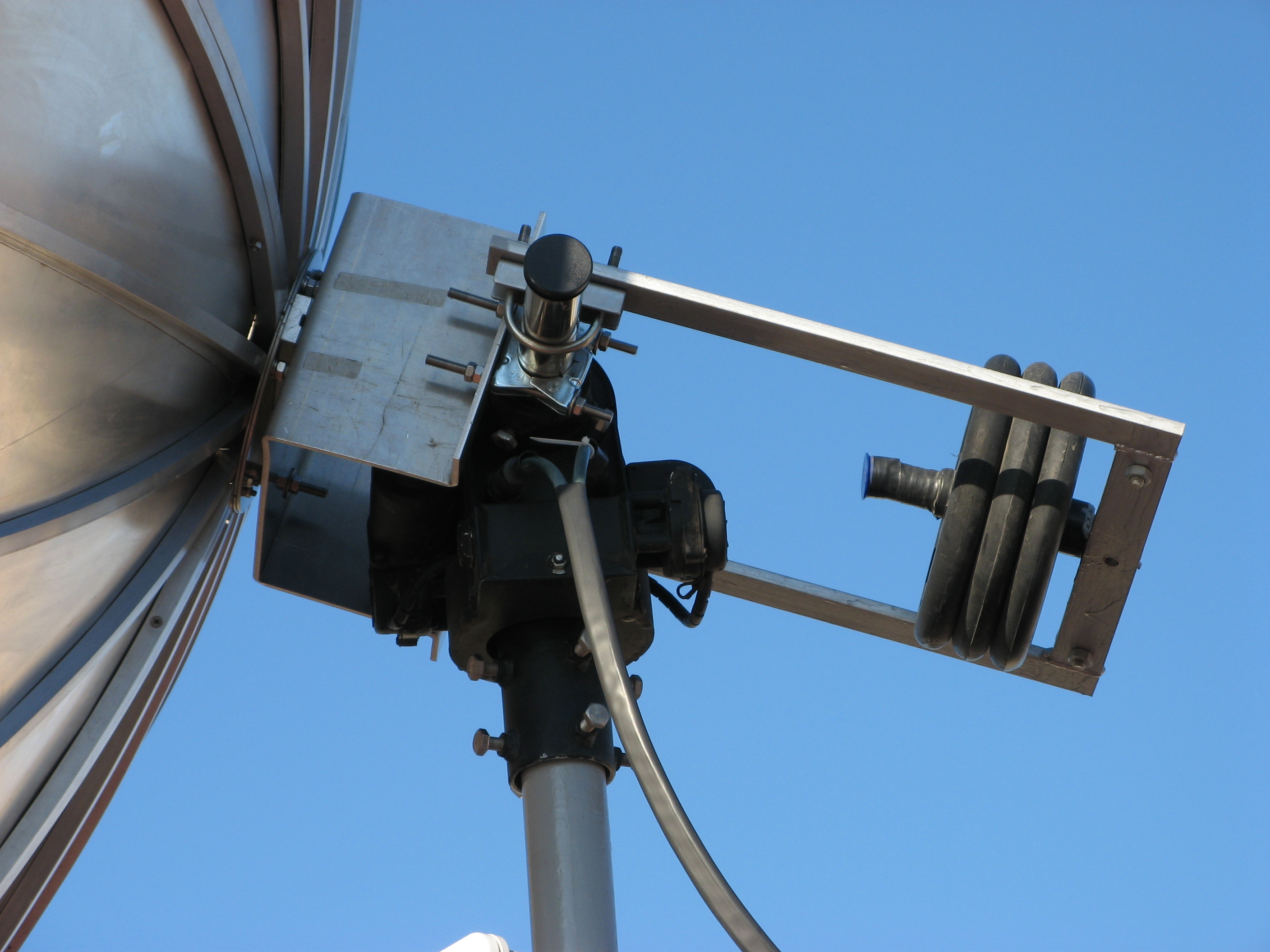

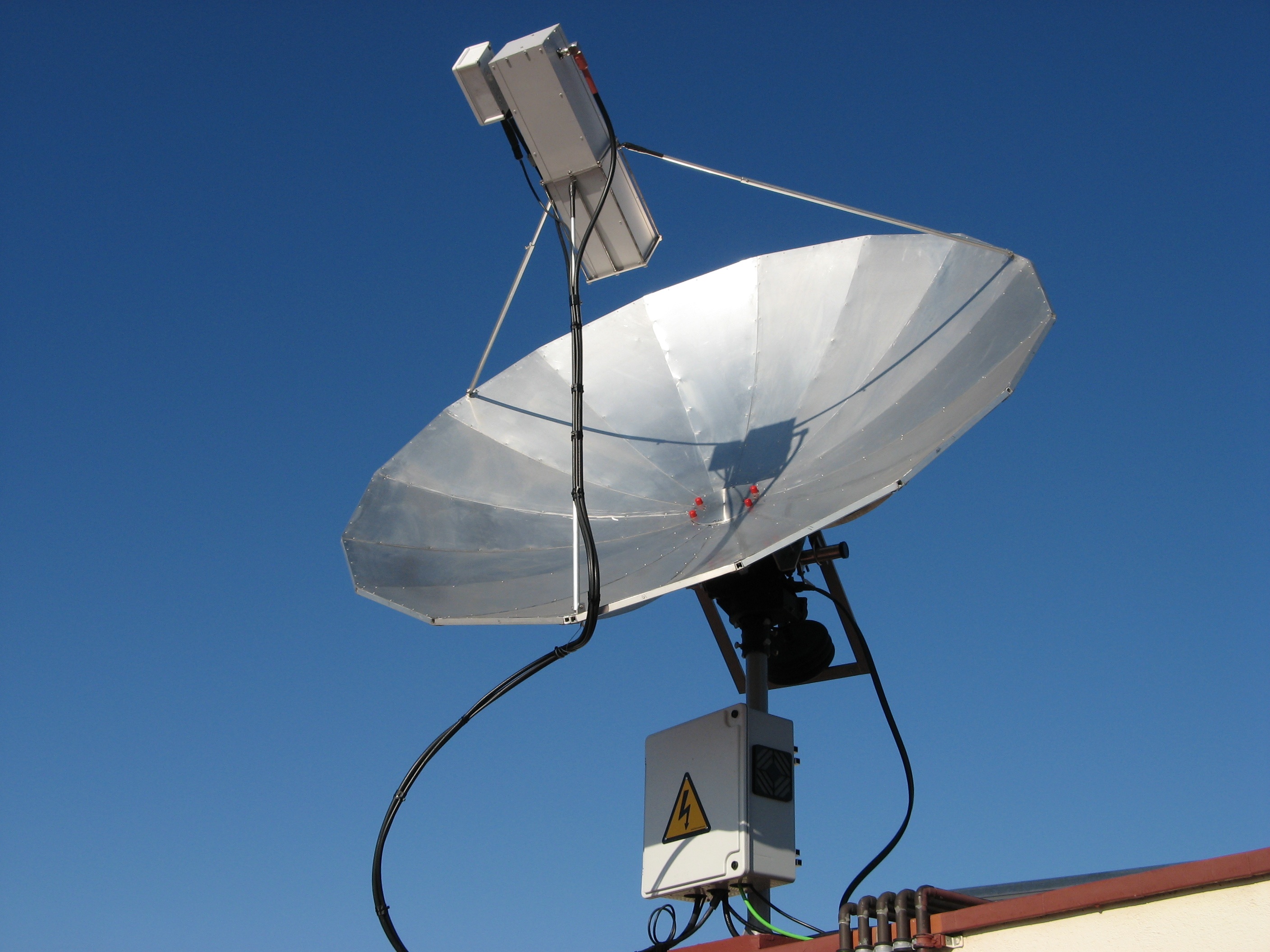

2mts solid dish 0.38 f/D - Septum feed OK1DFC + LNA 30dB 0,50 NF
TRX: Kuhne MKU 13G328 - HPSDR Hermes DUC/DDC + GPSDO
Lat: 41º 57´ 37´´ Long: 2º 02´ 63´´ - Locator: JN11an
|
|
|
|

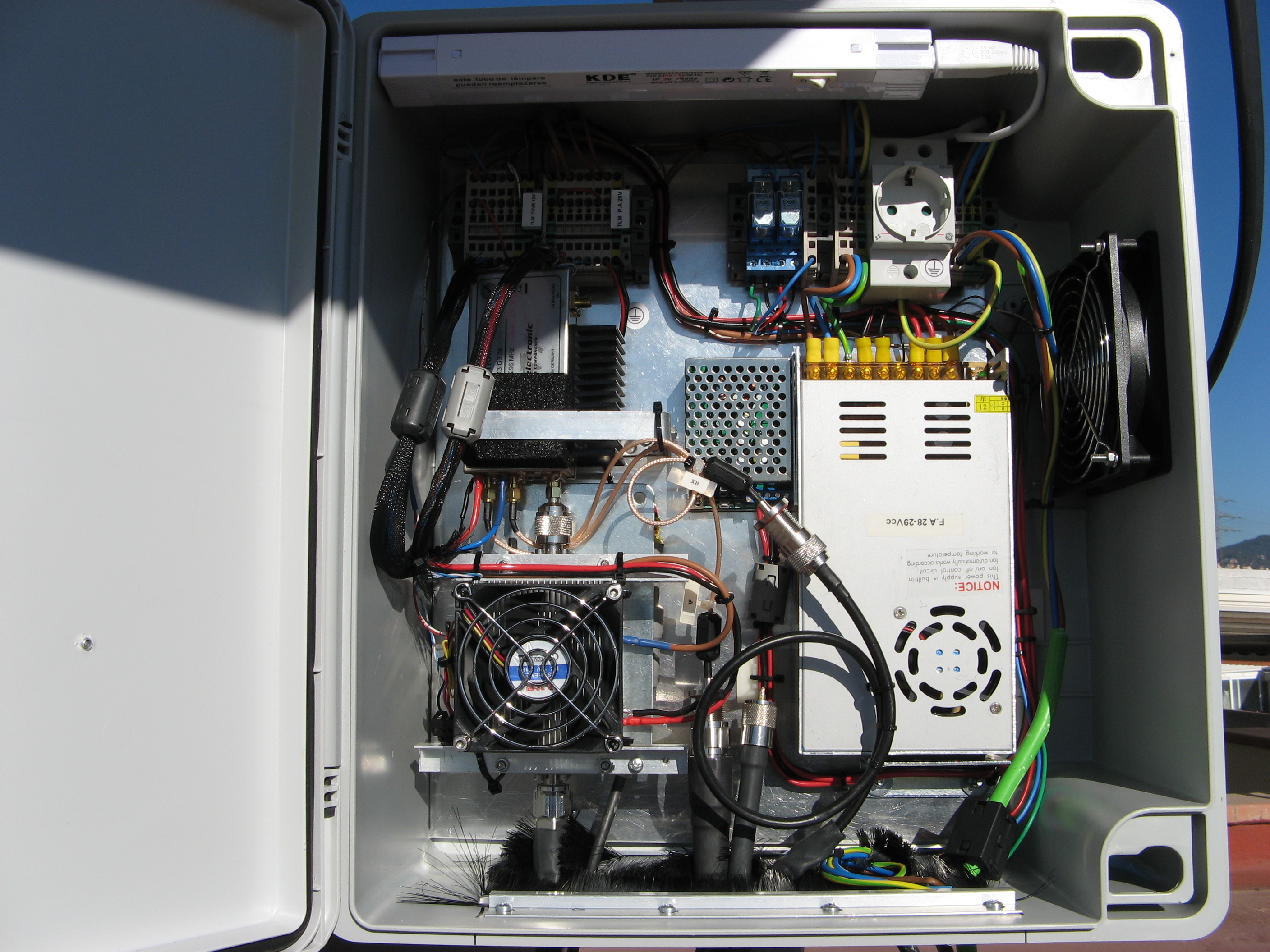

2015 - 1296MHz EME - Actual sistema

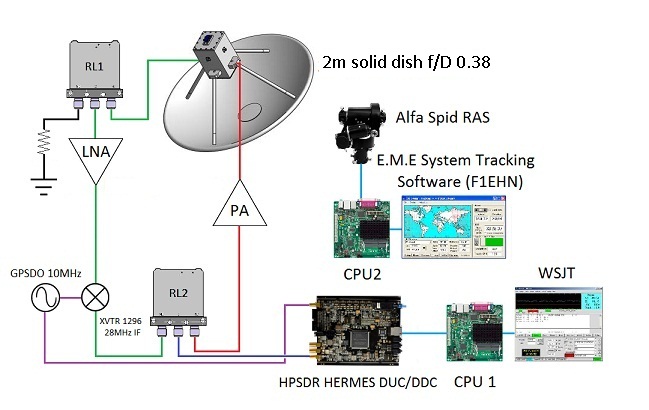

2015 - 1296MHz EME - Esquema funcional de la estación
2015 - Medición ruido solar - SFI 146 - Azimut 165º Elevación 25º

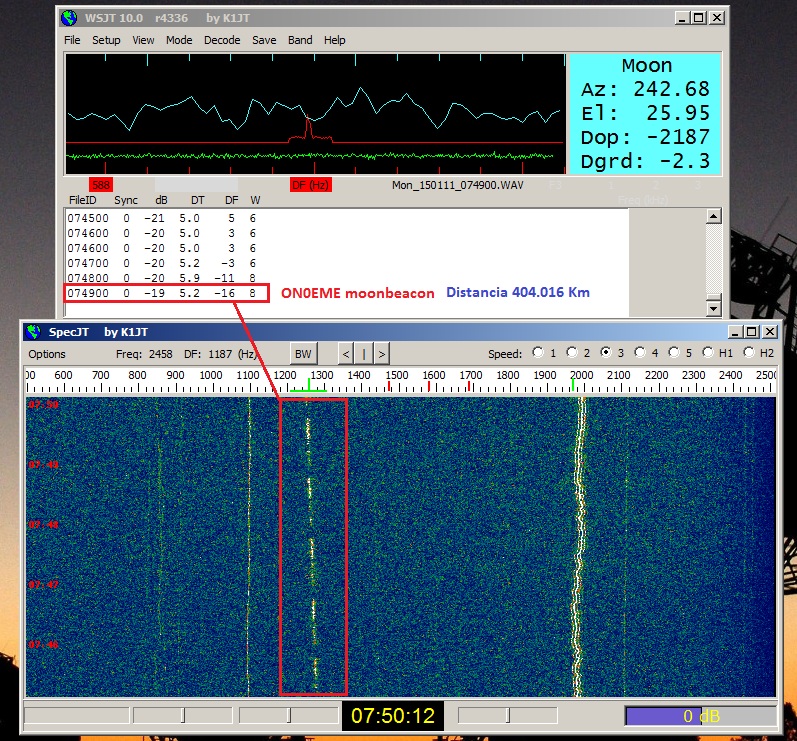

ON0EME 1296MHz moonbeacon
2015 - 1296MHz EME log - modo JT65C
| QSO nº | Fecha | UTC | QRG | Modo | Indicativo | RST IN/ OUT | Locator | Comentarios |
| 29 | 21/02/2015 | 12:32 | 1296 | JT65C | YL2GD | -20dB/-18dB | KO37ml | 6m dish 100W |
| 30 | 21/02/2015 | 13:58 | 1296 | JT65C | PE1LWT | -20dB/-22dB | JO22va | 3m dish 180W |
| 31 | 21/02/2015 | 14:07 | 1296 | JT65C | PE1CHQ | -24dB/-23dB | JO22xg | 3.8m dish 220W |
| 32 | 21/02/2015 | 14:16 | 1296 | JT65C | YO2BCT | -26dB/-24dB | KN05ps | 3m dish 200W |
2014 - 1296MHz EME log - modo JT65C
| QSO nº | Fecha | UTC | QRG | Modo | Indicativo | RST IN/ OUT | Locator | Comentarios |
| 20 | 05/04/2014 | 19:20 | 1296 | JT65C | I1NDP | -17dB/-20dB | JN45al | 10m dish 100W |
| 21 | 06/04/2014 | 14:13 | 1296 | JT65C | JA6AHB | -20dB/-21dB | PM53cp | 7m dish 400W |
| 22 | 06/04/2014 | 16:40 | 1296 | JT65C | PA3CQE | -25dB/-28dB | JO21pl | 3m dish 250W |
| 23 | 13/04/2014 | 19:21 | 1296 | JT65C | YL2GD | -20dB/ | KO37ml | 6m dish 100W |
| 24 | 13/04/2014 | 20:16 | 1296 | JT65C | IK3COJ | -19dB/-24dB | JN65bn | 4.15m dish 300W |
| 25 | 13/04/2014 | 20:25 | 1296 | JT65C | UA4HTS | -19dB/-21dB | LO43mo | 6m dish 700W |
| 26 | 19/10/2014 | 07:06 | 1296 | JT65C | IN1NDP | -19dB/-17dB | JN45al | 10m dish 100W |
| 27 | 19/10/2014 | 10:34 | 1296 | JT65C | NC1I | -26dB/-17dB | FN32ob | 4.5m dish 1500W |
| 28 | 03/11/2014 | 17:58 | 1296 | JT65C | DC9UP | -26dB/-22dB | JN39qn | 3.2m dish 700W |
2013 - 1296MHz EME log - modo JT65C
| QSO nº | Fecha | UTC | QRG | Modo | Indicativo | RST IN/ OUT | Locator | Comentarios |
| 1 | 14/07/2013 | 17:18 | 1296 | JT65C | SK6OSO | -15dB | JO57xj | 25.6m dish |
| 2 | 14/07/2013 | 17.46 | 1296 | JT65C | OK1DFC | -26dB/-22dB | JN79gw | 10m dish 1.2Kw |
| 3 | 15/09/2013 | 17:50 | 1296 | JT65C | UA3PTW | -20dB | KO93bs | 4.5m dish 250W |
| 4 | 15/09/2013 | 19:37 | 1296 | JT65C | G4CCH | -19dB/-22dB | IO93ql | 5.4m dish 600W |
| 5 | 15/09/2013 | 19:49 | 1296 | JT65C | PY2BS | -22dB/-15dB | GG66pj | 5.1m dish 600W |
| 6 | 24/09/2013 | 04:37 | 1296 | JT65C | K2UYH | -20dB/-29dB | FN20qg | 8m dish 400W |
| 7 | 26/09/2013 | 03:49 | 1296 | JT65C | OK1CS | -24dB/-24dB | JO70fd | 4.5m dish 350W |
| 8 | 27/09/2013 | 07:25 | 1296 | JT65C | I1NDP | -13dB/-18dB | JN45al | 10m dish 100W |
| 9 | 28/09/2013 | 07:30 | 1296 | JT65C | PA3FXB | -25dB/-27dB | JO33kc | 2.9m dish 300W |
| 10 | 13/10/2013 | 17:00 | 1296 | JT65C | DF3RU | -23dB/-26dB | JN59ul | 6m dish 300W |
| 11 | 13/10/2013 | 17:10 | 1296 | JT65C | DL6SH | -18dB/ | JN48sw | 6.5m dish 270W |
| 12 | 13/10/2013 | 17:23 | 1296 | JT65C | LZ1DX | -27dB/-26dB | KN22ts | 5m dish 200W |
| 13 | 26/10/2013 | 02:17 | 1296 | JT65C | HB9Q | -14dB/-13dB | JN47cg | 10m dish 400W |
| 14 | 26/10/2013 | 08:52 | 1296 | JT65C | OK1KIR | -18dB/-26dB | JN79dw | 4.5m dish 1Kw |
| 15 | 27/10/2013 | 08:12 | 1296 | JT65C | RN3A | -22dB/-29dB | KO85nv | 3.8m dish 600W |
| 16 | 27/10/2013 | 09:22 | 1296 | JT65C | OK2DL | -17dB/-25dB | JN79wl | 6m dish 200W |
| 17 | 22/12/2013 | 07:55 | 1296 | JT65C | DF3RU | -23dB/-28dB | JN59ul | 6m dish 300W |
| 18 | 22/12/2013 | 08:03 | 1296 | JT65C | PA3DZL | -23dB/-28dB | JO21hm | 3.7m dish 400W |
| 19 | 28/12/2013 | 06:37 | 1296 | JT65C | UA4HTS | -21dB/-21dB | LO43mo | 6m dish 700W |
EME QSLs Recibidas
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
