DL1SAN


136 kHz Equipment at Home

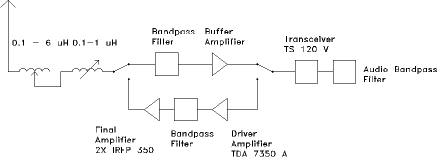

Station

Description :
Transmitter :
TS120V, Transverter 136 kHz <-> 28MHz, Driver Amplifier TDA 7350A, Final Amplifier 2x IRFP350
Receiver :
TS120V 800Hz + Audio Filter, Transverter 136 kHz <-> 28MHz, 2 X Switched Bandpass, Preamplifier BFG96
Antenna Tuning :
Switched Inductor 1-4 mH + Variometer 0.4-1.2 mH
