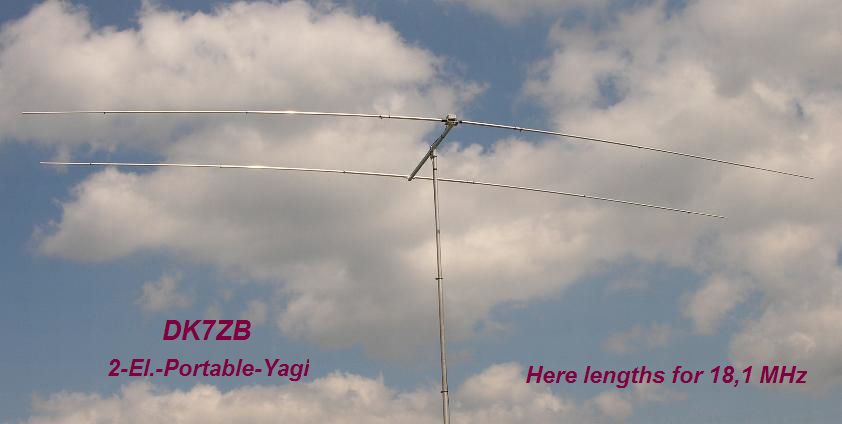

2ElementPortableYagi with 25 Ohm,
dismantable, for 10 m20 m (by DK7ZB)
This Yagi has a constant elementdistance of 1,50 m. You must only correct the lengths of the elements for QSY, see table down. For the bands 10 m and 12 m the Yagi is working as a reflectorradiatorYagi, for 15 m and 17 m as a beam with radiator and director. All parts are not longer than 1,55 m and fit in a fishing bag for the transportation. The Yagis are a highgain beams with small bandwidth. The dipole must be mounted insulated with two halfs, spacing 20 mm.
For tuning you can shift the end pieces of the radiator, the other element should not be changed.
Short data for the 4 bands (free space)

10m
12m
15m
17m
Gain
4,8dBd
4,6dBd
4,6dBd
4,5dBd
F/B
6dB
9dB
12dB
16dB
Needed aluminium parts for the beam
Dimension
Use
1 piece 30x30x2mmsquareAlu, 155cm
Boom
2 pieces
round tube 25x2mm, 150cm
inner
pieces rad + ref/dir
4 pieces round tube 20x1,5mm, 150cm
middle pieces for the elements
4 pieces round tube 16x1,5mm, 150cm

2 pieces round tube 12x1,0mm, 85cm+60cm
outer
pieces for the elements

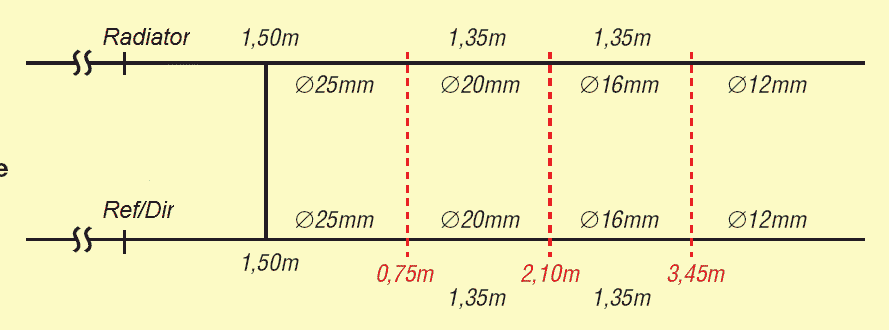

The schematic picture of the beam (one element half)
The Balun The impedance for all bands is 25Ohm, so we use a homemade balun 1:2 for the matching 25Ohm balanced to 50Ohm unbalanced. The balun has two sections on the same core and the principle is shown in the picture right.
The first part is a trifilar RuthtroffUnUn 50 Ohm to 28 Ohm with the windings 16 (1,0 mm isolated copperwire). The second Guanellatransformer is a 25OhmBalun UnBal, made with two parallel coaxcables RG174U. AB is the outer braid of the two cables, CD are the inner conductors. The mismatch 25/28 Ohm does not cause any problems. Both parts are wound on the same core, an Amidon FT24077. With RG174 the max. power is 200 Watts, with Tefloncoax RG188 about 500 Watts. Peter, HB9PJT, has tested the FT24061 as a better choice. He found that 3 trifilar windings for the balun 2:1 gave the best results of nearly 1:1 with this core. Look for the pictures of HB9PJT below!
The table shows that the balun has an inductive part +j which can be compensated by shortening the radiator halves.
Band
6m
10m
12m
15m
17m
20m
30m
Impedance
38+j15 Ohm
51+j20 Ohm
58+j19
Ohm
66+j13
Ohm
68+j9
Ohm
67+j3
Ohm
64+j5
Ohm
SWR
50 Ohm
1,5
1,4
1,4
1,4
1,4
1,3
1,2

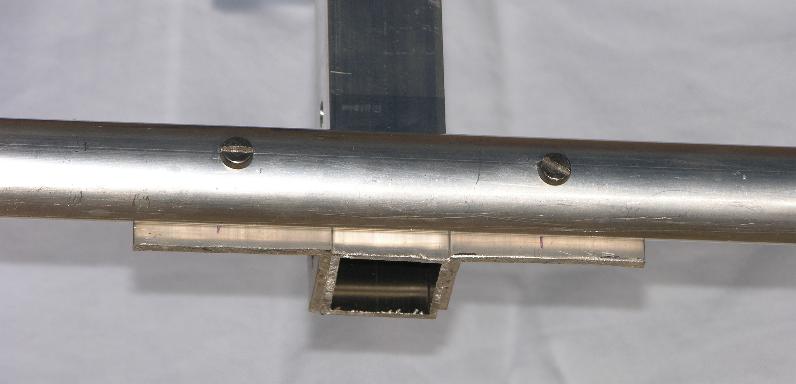

The director/reflector is mounted with two 5mmscrews and nuts (Inox steel)

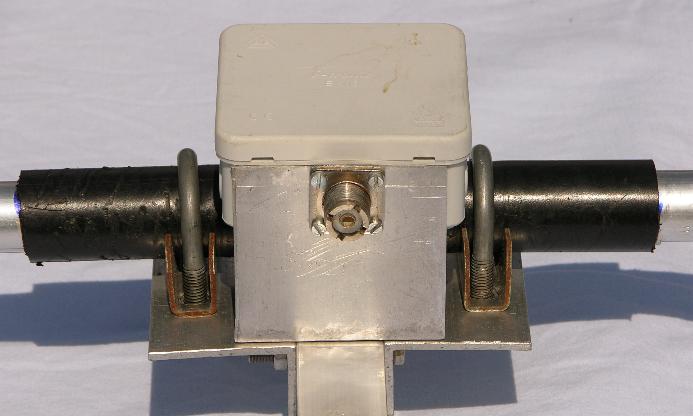

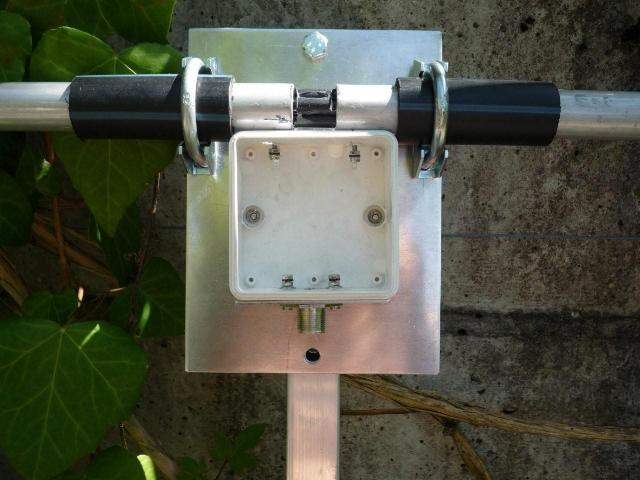

The middle part of the radiator

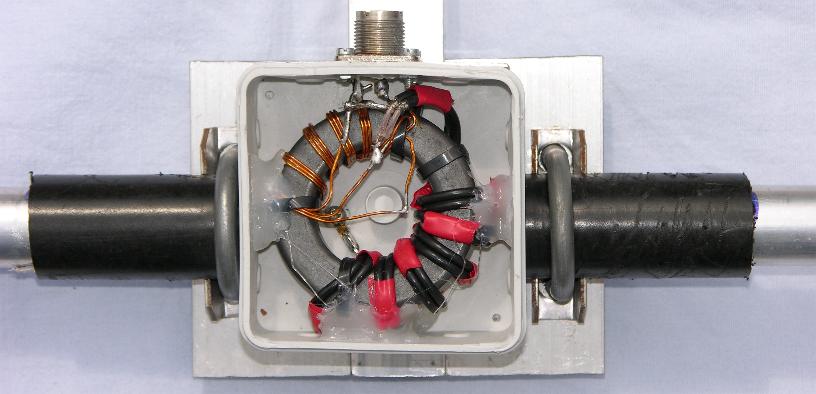

The box with the balun

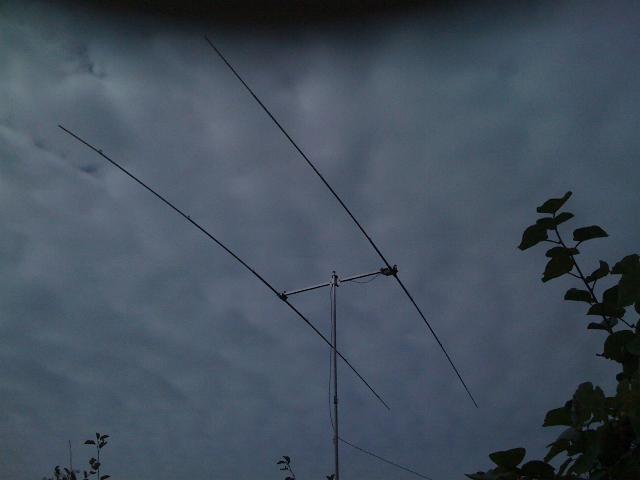

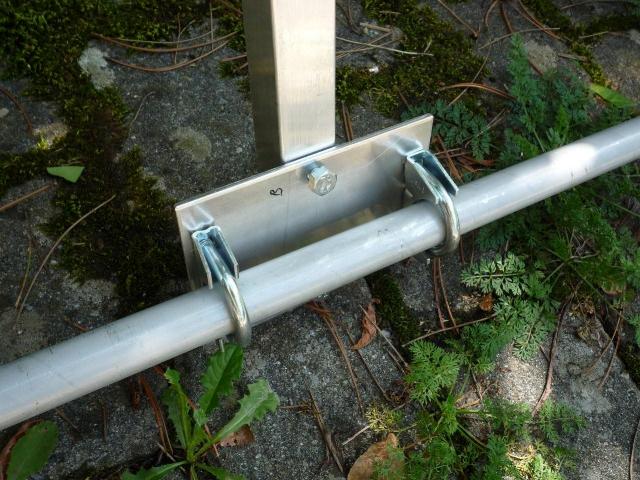

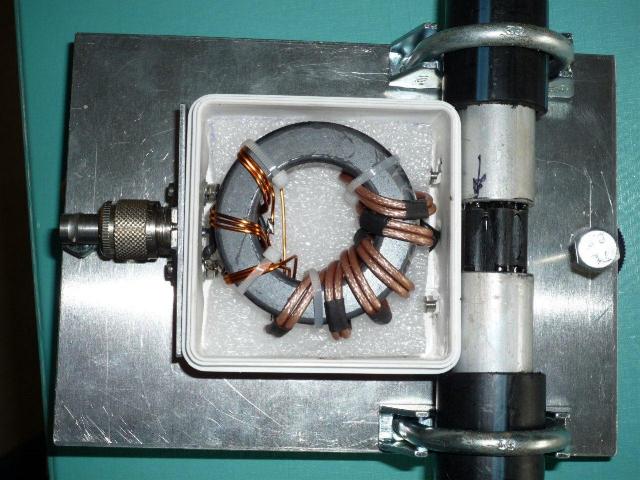

The Beam, built by Peter, HB9PJT. Click on the thumbnails for greater pictures!
Table 1: Lengths for the
10mBand (RadiatorReflector), one
half
Tubes
25x2mm
20x1,5mm
16x1,5mm
(CW)
16x1,5mm
(SSB)
Reflector
75cm
135cm
51cm
47cm
Radiator
75cm
135cm
40cm
37,5cm
Table 2: Lengths for the
12mBand (RadiatorReflector), one
half
Tubes
25x2
mm
20x1,5
mm
16x1,5
mm
Reflector
75
cm
135
cm
92
cm
Radiator
75
cm
135
cm
73,5
cm
Table 3: Lengths for the
15mBand (RadiatorDirector), one
half
Tubes
25x2
mm
20x1,5
mm
16x1,5
mm

12x1
mm

Radiator
75
cm
135
cm
135
cm
9
cm
Director
75
cm
135
cm
123,5
cm

Table 4: Lengths for the
17mBand (RadiatorDirector), one
half
Tubes
25x2
mm
20x1,5mm
16x1,5
mm

12x1
mm
Radiator
75
cm
135
cm
135
cm
74
cm
Director
75
cm
135
cm
135
cm
50
cm
It is possible to use the Yagi for 20m with reduced gain of 3,6 dBd. We must decide if we use the CW or the SSBBand. Try it with the following tubes:
Table 5: Lengths for the
20mBand (RadiatorDirector), one
half
Rohre
25x2
mm
20x1,5
mm
16x1,5
mm

12x1
mm
10x1
mm
(CW)
10x1mm (SSB)
Radiator
75
cm
135
cm
135
cm
135
cm
73
cm
65 cm
Director
75
cm
135
cm
135
cm
135
cm
34
cm
29 cm
