Pictures of DK7ZB-designed Yagis
|
|
4x12-Ele.-28Ohm-Yagis 4 Yagis with 8m-Boom, Gain 20dBd
Yagis built by Pascal, DM2PG |
Sunset at Clubstation OK1KVK/OL7C 8x7-El.-28-Ohm-2m-Yagi, 20dBd Gain
Yagis built by OK1 GP
Foto by OK1WMR (tnx!) |
|
|
|
Two stacked 12-Element-28Ohm-Yagis for 70cm, built by Wolf, DK1IP
Foto: DK1IP
Professionell measuring by Wolf, DK1IP (Spectrumanalyser with Trackinggenerator Advantest R3361C and R&S SWR-Bridge ZRB2) gives SWR <1,04 at 15m-Aircell-7 low-loss cable for a single Yagi. |
5-Element-6m-Yagi (18-Ohm-Technology) built by Manfred, DL8FBC. Boomlength 6m, Gain 9,3dBd, Front/Rear >33dB. Bandwidth at SWR <1.5 more than 700KHz. Above is a 7-Ele-DK7ZB for 2m. |
|
|
|

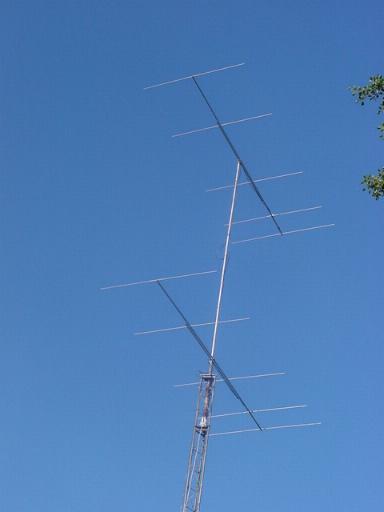

6m-Yagis at DK3EE 2x5-Element-6m-Yagi in 12,5-Ohm-Technology, built by Tom, DK3EE, Boomlength 6m, Gain 12,3dBd, Front/Rear >28dB, Bandwidth at SWR <1,5 about 500KHz
Baubeschreibung "50MHz-Yagis in 12,5Ohm-Technik" im FUNKAMATEUR 5/98
|
|
The same 5-Element-6m-Yagi in 12,5-Ohm-Technology built bei Heinz, DJ4IC
|
|
|
|
4x14-Element-Yagigroup (28-Ohm-Technology) at DF0RW (OV R 17) for contests and EME, Boom 9,90m, gain of a single antenna 15dBd at Front/Rear >30dB! Gain of the group : Baubeschreibung "Hochleistungsyagis für das 2m-Band in 28Ohm-Technik" im FUNKAMATEUR 1/97
|
|
5-Element-10m-Yagi 7,50m-Boom, gain 8,2dBd Built by Gernot, DH9FAB Baubeschreibung "Selbstbau-Yagis für das 10m-Band" in Heft 1/97 funk |
|
 |
4-El.-6m-Yagi, based on a FUBA-channel-4-TV-antenna with DK7ZB. 6.4dBd gain, F/R 18dB Now used by DL8FAJ
Baubeschreibung "4-Element-Kurzyagi für das 6m-Band" in funk Heft 5/98
|
|
|
2x7-El.-2m-Yagi in 28-Ohm-Design stacked, built by Pascal, DM2PG Baubeschreibung "Kurze Yagis für das 2m-Band in bewährter 28-Ohm-Technik" in FUNKAMATEUR Heft 2/00
|
|
4x4-El.-2m-28Ohm- Yagis Contest- Crew OL1F, built by Milan, OK1VWK Fixed position to DL |
|
|
|
|
4x21-El.-70cm-EME-group in 28-Ohm-Design, built by Gerhard, DL1DWI He made his first EME-QSO with 100Wtts output! |
DK7ZB/p in JO41WE, 730m ASL 1. Place Thueringen-Contest 21-Sept-2002 1. Place Thueringen-Contest 23-Sept-2003 2x8-El.-2m-Yagi, Report in cq-DL 7/2001 |
|
|

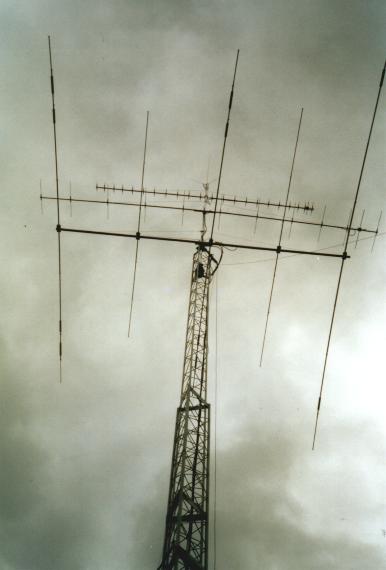

12-El.-28-Ohm-Yagi for 2m 23-El.-28Ohm-Yagi for 70cm
Antennas built by Graeme, VK3GOM |
|
,, |
10-El.-2m-Yagi in 28-Ohm-Design, built by Burghard, DG9YIF Baubeschreibung "Hochleistungsyagis für das 2m-Band " in FUNKAMATEUR Heft 1/97
|
|
|

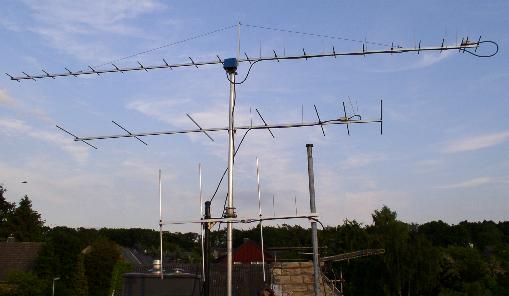

DK7ZB-Yagis, built by Ingo, DL5KCI 3-El.-Vert.-2m-Yagi 7-El.-Yagi 2m 21-El.-Yagi 70cm |
