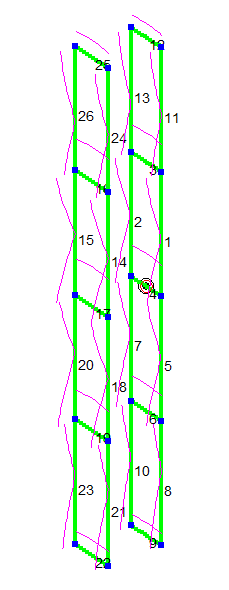

Quadruple-Quadlong  for the 2-m-Band

The left picture shows the stacked array of the 2x quadruple Quadlong at DF0MU.

Antennas built

by Andreas, DL6YEH



DF0MU is the winner of the

UKW-Contest-Pokal 2011 in Germany. Congratulation!

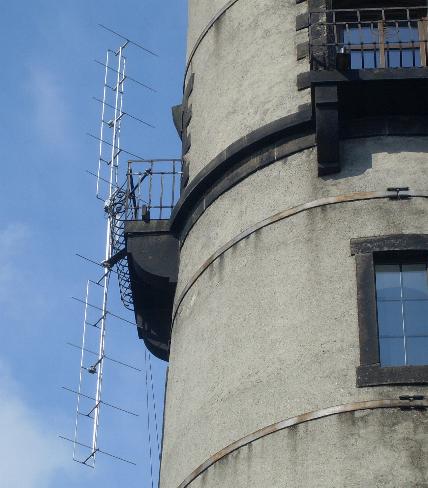

The stacked Quadlongs built by

Gunter, DL2DRG



The QTH is in JO70IT



A second hybrid version see down!

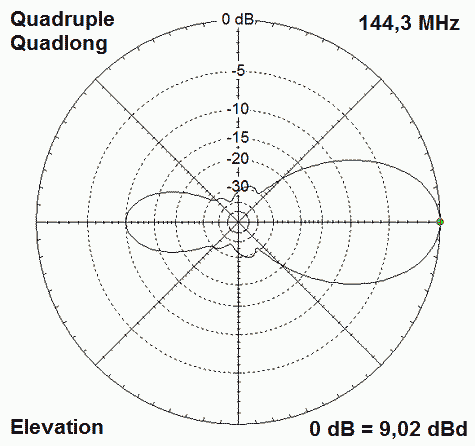

Gain 9,0 dBd

F/B 10 dB

3-dB-angle hor. 75,0°

3-dB-angle ver. 36,2°



Feedpoint

50 Ohm

Height

2,85 m

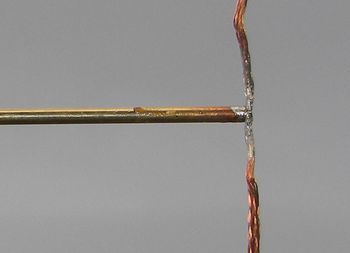

The horizontal parts are made with 4x1-mm brass tubes, the vertical parts are made with flexible copper-wire (2,5 mm diameter).

Big azimuth-angle for contest- and portable-operation. The whole antenna can be folded to a small package.



Parts

Material

Length



Reflector- distance

320 mm

Radiator

horizontal

4x1-mm brass tube

258 mm

vertikal

2-mm-flexible copper wire

715 mm

Reflector

horizontal

4x1-mm brass tube

280 mm

vertical

2-mm-flexible copper wire

715 mm

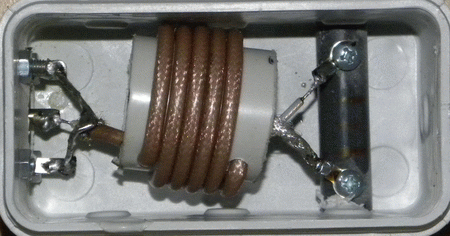

The 50-Ohm-Choke for the symmetrical feeding:

5 turns of PTFE-coax on  a 25-mm-PVC-tube

You can handle 250 Wtts RF

The boom parts with a PVC-square-tube

The DK7ZB-Quadruple-Hybrid-Quadlong  for the 2-m-Band

Gain 9,2 dBd

F/B 20 dB

3-dB-angle hor. 72,4°

3-dB-angle ver. 36,0°



Feedpoint

50 Ohm

Height

2,85 m







Parts

Material

Length



Reflector- distance

 320 mm

Radiator

horizontal

4x1-mm brass tube

276 mm

vertical

2-mm flexible copper wire

715 mm



Reflectors



horizontal

3,2-mm aluminium

1050 mm

4-mm aluminium 1049 mm
6-mm aluminium 1048 m

The clamp for the mounting of the boom
