13-Element-28Ohm-DK7ZB-Yagi for 432MHz

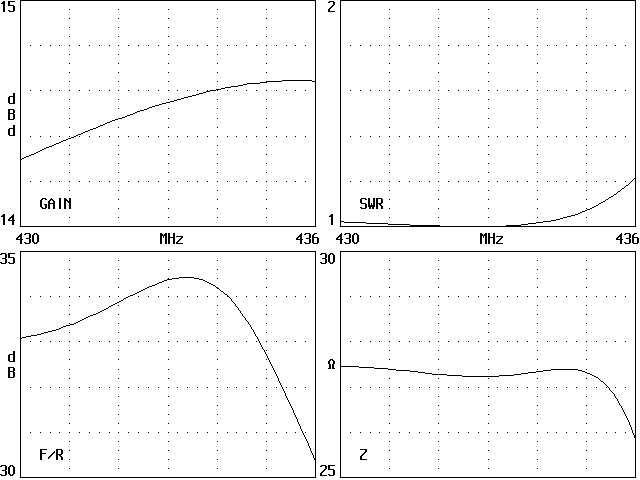

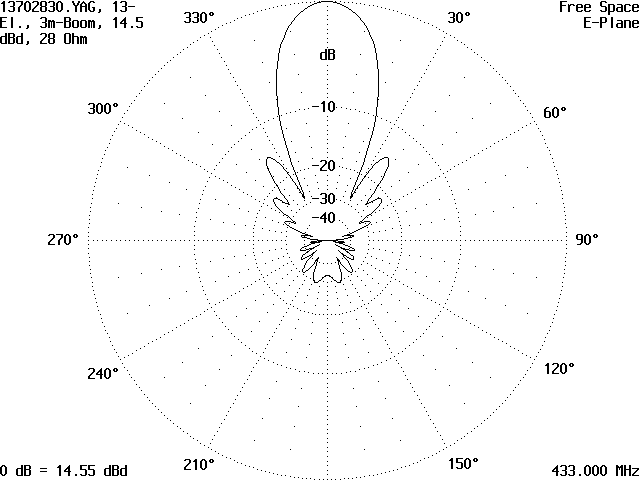

13-El.-28-Ohm Yagi for 430-436 MHz Gain 14,5dBd, F/B 30dB Boom 3,00m 3dB-angles: hor=27,0° ver=28,2° Stacking distance: 1,45m vertical

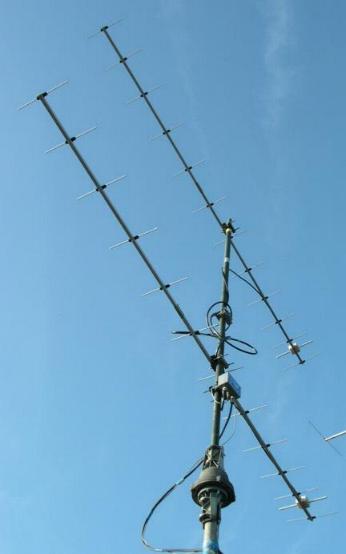

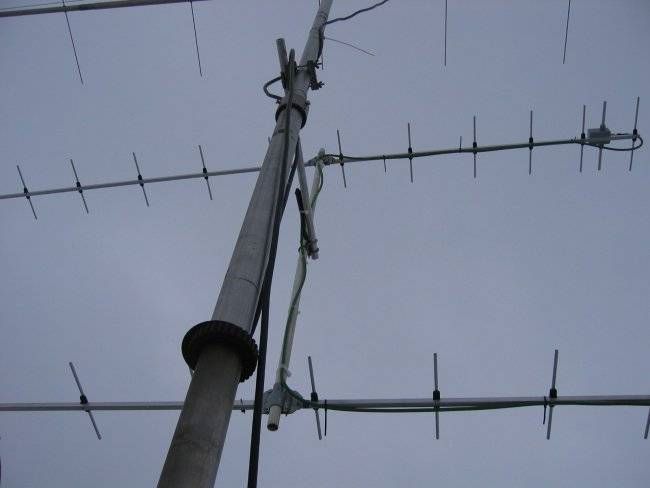

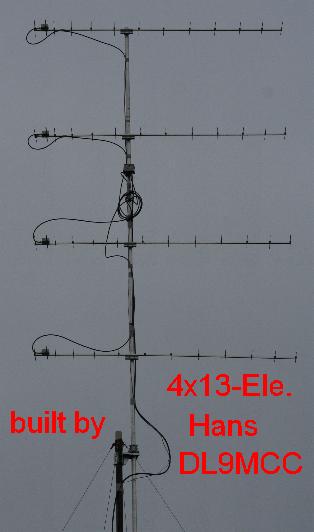

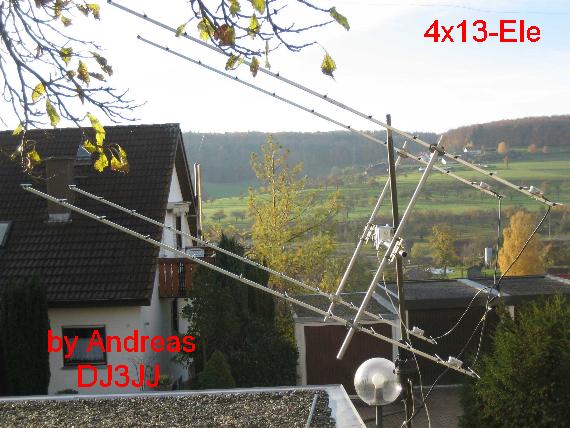

2x13 Element stacked Antennas built by Toralf, DJ8MS |
|
|
Element |
Element-Position |
Element-Length (8mm) | Element-Length (6mm) |
Ref |
0mm | 333mm | 334mm |
|
Rad |
135mm | 312mm (12mm) | |
|
D1 |
235mm | 303mm | 306mm |
|
D2 |
440mm | 291mm | 294mm |
|
D3 |
680mm | 283mm | 286mm |
|
D4 |
960mm | 277mm | 280mm |
|
D5 |
1260mm | 273mm | 276mm |
|
D6 |
1560mm | 271mm | 274mm |
|
D7 |
1875mm | 269mm | 272mm |
|
D8 |
2180mm | 271mm | 274mm |
|
D9 |
2480mm | 275mm | 278mm |
|
D10 |
2745mm | 280mm | 283mm |
|
D11 |
2980mm | 272mm | 275mm |
