4-El.-50-Ohm-Yagi (0,76m-Boom)

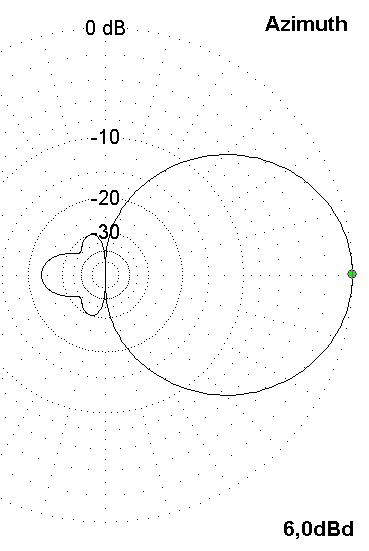

 Gain 6,0dBd           F/B >20dB

Extreme broadband version

Elementlengths

Diameter Reflector  Radiator  Director 1  Director 2
6mm 1040mm 1028mm 960mm 891mm
8mm 1034mm 1032mm 952mm 874mm
10mm 1030mm 1030mm 944mm 864mm

Elementpositions

Reflector Radiator Director 1 Director 2
0 250 345 755

The 50-Ohm choke for feeding:

34,5cm RG-174 for 100Watt

37,0cm RG-188-Teflon for 200Watt

on a PVC-tube

Grounded coax-socket!
