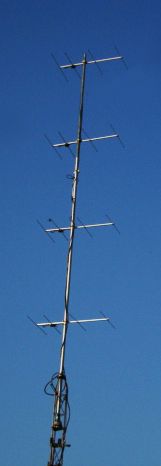

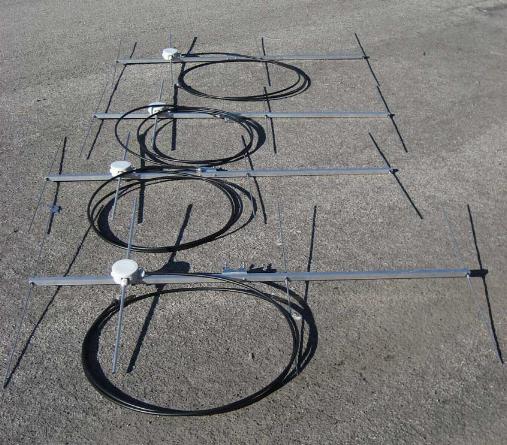

4-Element-12.5-Ohm-2m-Yagi for SSB/CW
Boom 1,50m
F/B > 20dB, stacking distance 2,10m
| Gain | 3dB hor | 3dB ver | |
| 1x4 El | 8,8dBd | 50,0° | 62,2° |
| 2x4 El | 11,7dBd | 50,6° | 26,4° |
| 4x4 El | 14,8dBd | 51,2° | 12,8° |
| Construction | 2-Element | 3-Element | 4-Element (1m) | 4-Element (1,5m) | 5-Element | 6-Element |
|
4-Element-12.5-Ohm-2m-Yagi for SSB/CW Boom 1,50m F/B > 20dB, stacking distance 2,10m
|
Element-Positions
| Ref | Rad | D1 | D2 |
| 0mm | 320mm | 860mm | 1480mm |
Element-Lengths
| Diameter | Ref | Rad (10mm) | D1 | D2 |
| 4mm | 1020mm | 949mm | 942mm | 922mm |
| 6mm | 1016mm | 950mm | 931mm | 912mm |
| 8mm | 1014mm | 950mm | 923mm | 904mm |
|

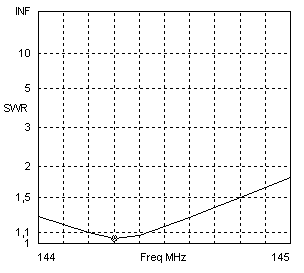

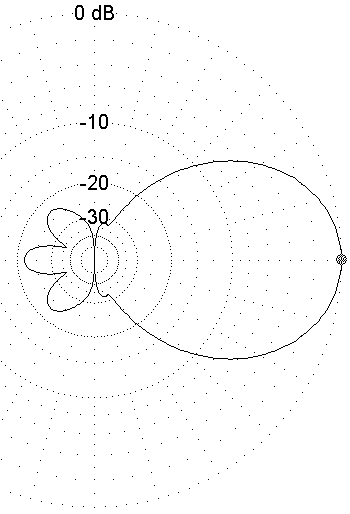

Single Yagi, horizontal pattern, 0dB = 8,81dBd |

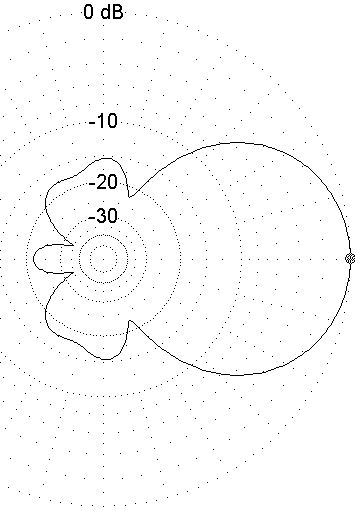

Single Yagi, vertical pattern, 0dB = 8,81dBd |
|

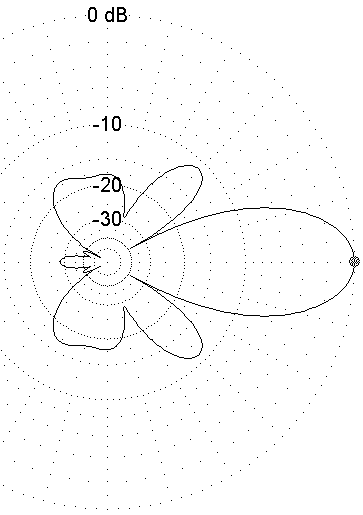

2xYagi, vertical pattern, 0dB = 11,77dBd |

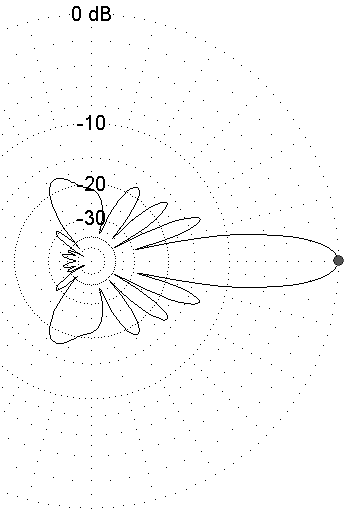

4xYagi, vertical pattern, 0dB = 14,81dBd |
