My station is very dynamic. The current status is (last update 20.May 2012):

Band

Trx

PWR / PA

Preamp

Koax

Ant (Rotators are Kenpro KR-400 (AZ) and KR-500 (EL))

2200m (137KHz)

Tx:

Ropex 1st or

DD7PC homemade LF Transverter

Rx:

Yaesu FT857+G0MRF 136KHz Preamp or

Präcitronic  MV62 Pegelmesser

150W - Ropex

250W - G0MRF Mosfet-PA

G0MRF 137KHz Preamp when using FT857 as RX

/

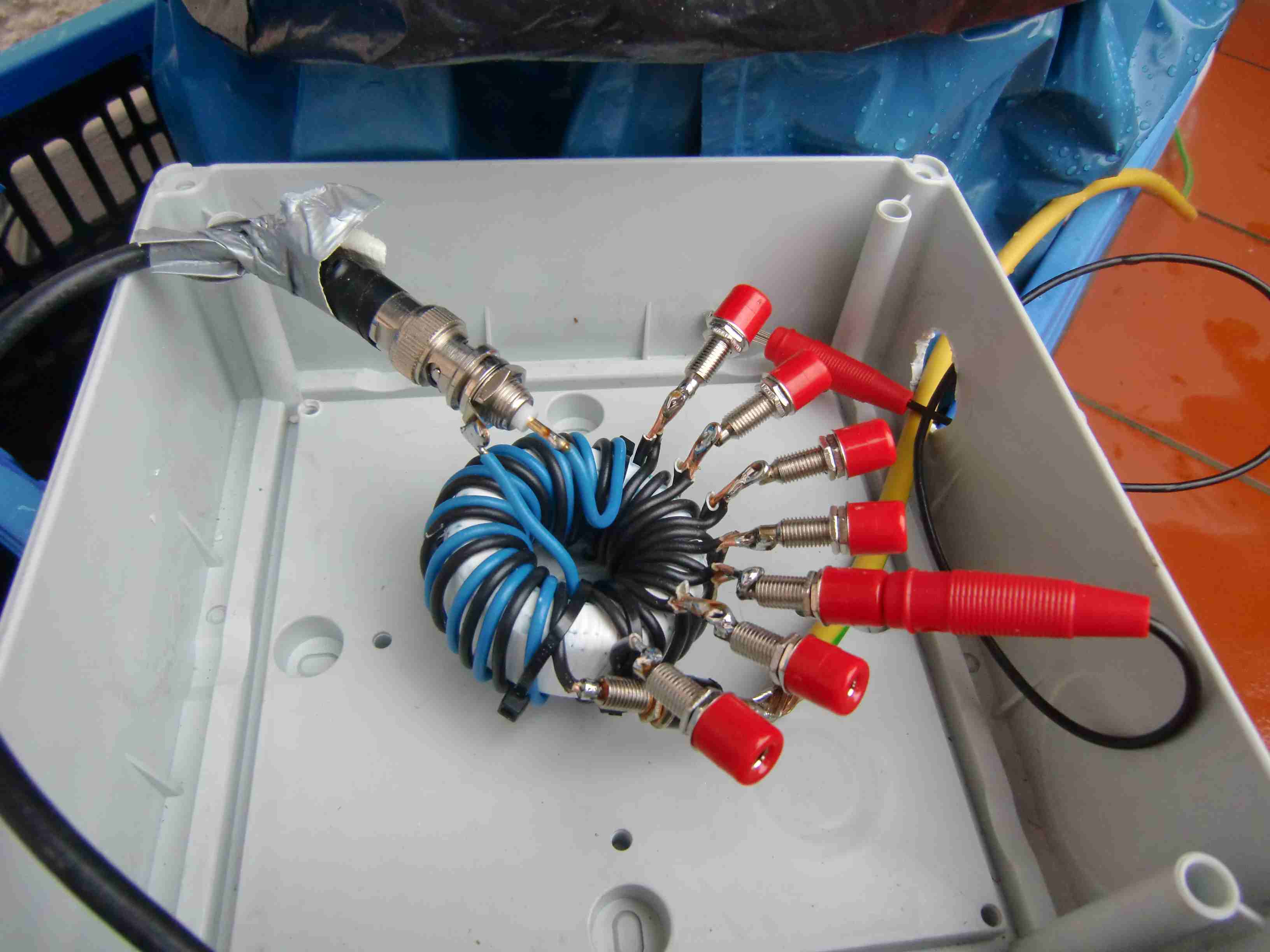

TX-Ant.: LC+Variometer+30m antenna wire

RX-Ant.: PA0DRT Mini-Whip

160-10m

Yaesu FT-857D

100W

SB-200

/

RG-213

FD-4 (wire replaced by eaves gutter ("Dach-/Regenrinne")!

6m (50MHz)

FT-857D (100W)

/

SP-6

RG-213

ZX6-2 - 2-el. Yagi (actual just a simple dipol)

4m (70MHz)

Spectrum Communications TRC-42s 70/145MHz Transverter

RX Converter Spectrum Comm. + Dipol ant. – so prepared for X-Band 6/4m…

TPL Communications PA2-1AD, 50W PA

/

H-2000

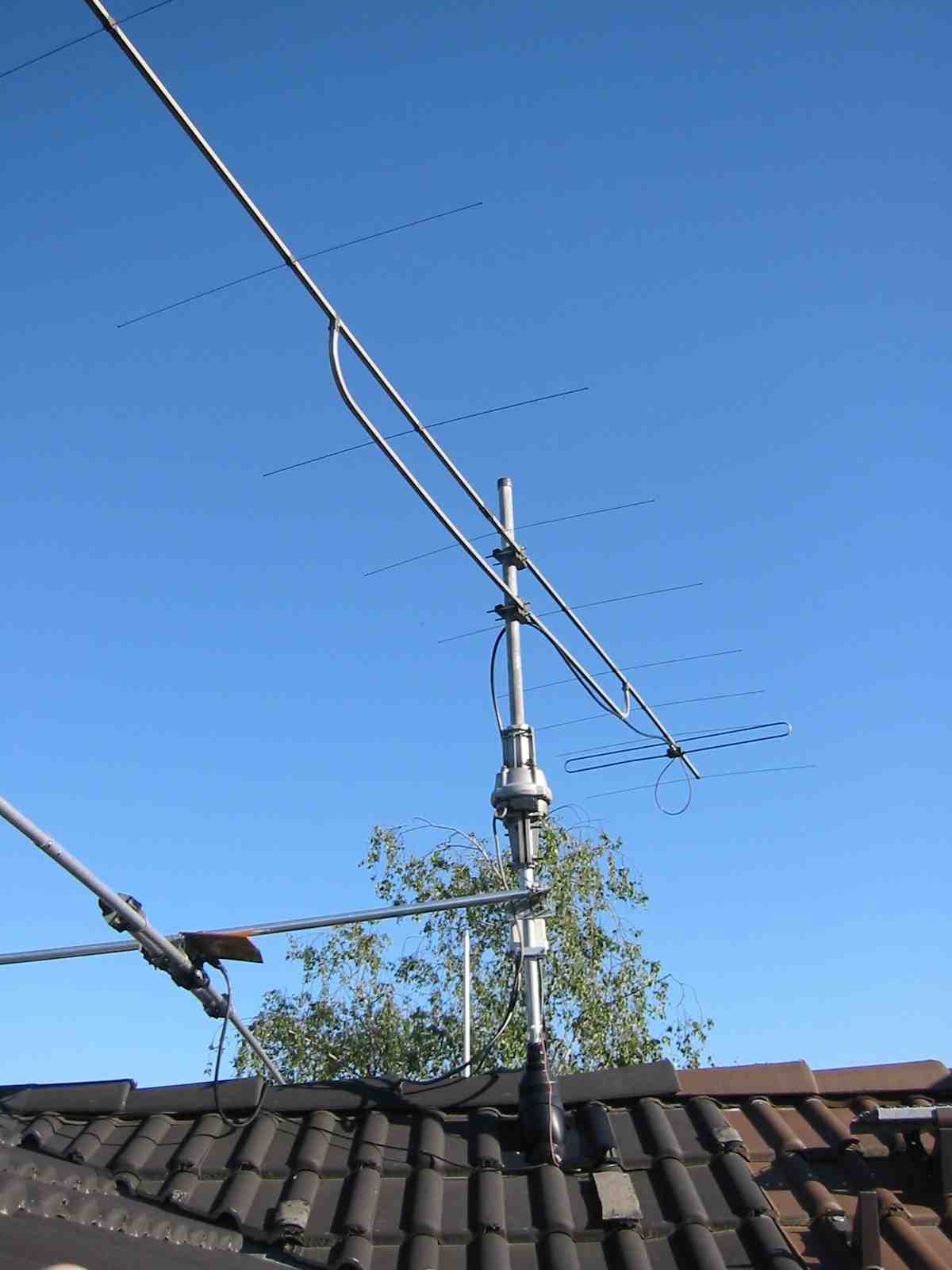

YU7EF 4-el. Yagi

2m (144MHz)

FT-857D or IC-202

HA8UG UG2: 100/1500

500-750W

SHF-144

H-2000

11-el. Flexa Yagi (8-el. LFA Yagi already bought & under construction)



70cm (432MHz)

FT-857D

220W – Ericsson 9000

HA1YA ME750U

SHF MVV-432

H-2000

15-el. (15 dbd) Typ DL1RG-15

23cm (1296MHz)

DB6NT Trv MKU13G2

1.5W +  =35W

100W PA Modul by DJ6JJ

/

3m coax FSJ4-50b

mast-mounted

55-el. Tonna Yagi (19.4 dbd)

13cm (2320MHz)

DD9DU Trv(0.8W)

3xMRF21120 (350W)

SP-13

H-2000

WIMO SHF 1367 (20 dbd)

9cm (3400MHz)

DB6NT Trv MKU34G2

Pout 200mW

MKU PA 341A, 5W

/

mast-mounted

1x76-elem. Loop Yagi 976LY (21.8dbd)

Directive Systems

10GHz

DB6NT Trv MKU10G3 (+10MHz GPSO by G3RUH)

5W DB6NT PA

/

mast-mounted

Procom 48cm dish (27 dbd) (actually QRV with just HL-Schlitzantenne)

Upgrade to 80cm dish with OZ8AFC feed + Preamp in progress -> see hr my 1st tests

24GHz

Transverter 1: DB6NT Trv MKU24GA

Transverter 2: DC0DA Trv

Trv 1 : DB6NT PA, MKU243CS2 (10mW)

Trv 2: 3W PA DB6NT MKU2403A

DB6NT VV

MKU243CS2

 2.5dB NF

mast-mounted

Andrew dish 32cm, 35db

47GHz

Rx: DB6NT 47GHz Mixer, 8db DSB

CW-Tx: 2x Doppler DB6NT

20mW

/

mast-mounted

2xProcom 25cm dish (36dBd)

!noch ein besonderer Dank an Fritz, DM2BLE für das Erstellen der BEMFV-Selbsterklärung!



Due limited space on top of my house, i'm not able to mount all antennas together. So i'm only QRV on 1 or 2 VHF/UHF or SHF bands at the same time.

Here the actual status on which band i’m QRV:



2200m(137KHz)

*

160-10m



6m (50MHz)



4m(70MHz)

**

2m (144MHz)

***

70cm (432MHz)



23cm (1296MHz)



13cm (2320MHz)



9cm (3400MHz)



3cm (10GHz)



1.4cm (24GHz)



47GHz







  == QRV



 == under construction (new setup)



  == antenna actually dismounted



  == QRT

* anytime QRV for sked, please send mail…

** temp permission as DI2AX to TX on 69.9950MHz (expired)

*** sometimes QRV from QTH of my brother DF8PC (LOC JO44QS) and using his new powerful 144MHz station (2 stacked Yagi’s).



planned activities for rest of 2009:

·        4m activation as DI2AX -> see also http://www.qsl.net/dd7pc/DI2AX.htm

·        Active 2.+3.May 09 in Microwave contest on 70 + 9cm from my home QTH (JN49ax)

·        Active in July 09 Microwave contest on 9, 3 and 1.4cm from QTH of DF8PC (JO44QS)
