Gain 4,0 dBd, F/B 10db Boom 37 cm, Yagi with Reflector
Dimensions for a single Yagi
|
| Details | 2-El.-2m | 3-El.-2m | 4-El.-2m | 5-El.-2m | 6-El.-2m |
| 7-El.-2m | 7-El.-70cm | 9-El.-70cm | 10-El.-70cm | 12-El.-70cm | 14-El.-70cm |
| Stacked 5-El-2m 25-Ohm new | 7-El.-2m 25+28-Ohm new | 8-El.-2m 28-Ohm new | 10-El.-70cm 28-Ohm new |

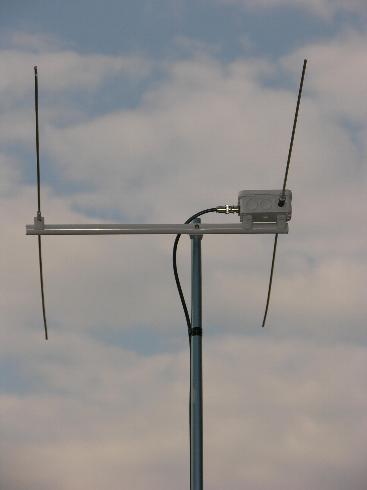

The 2-Element-2m-Yagi, Boom 37cm
|
|

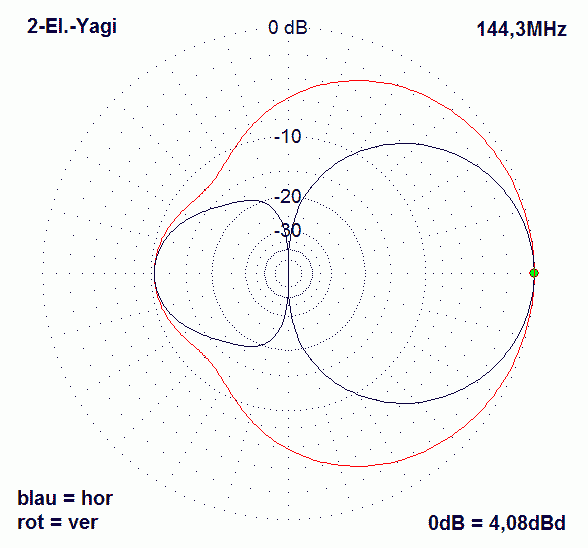

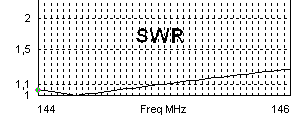

Gain 4,0 dBd, F/B 10db Boom 37 cm, Yagi with Reflector
Dimensions for a single Yagi
|
|
|

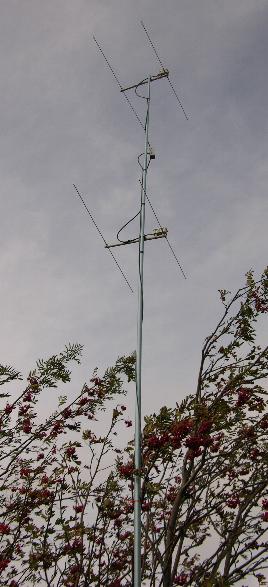

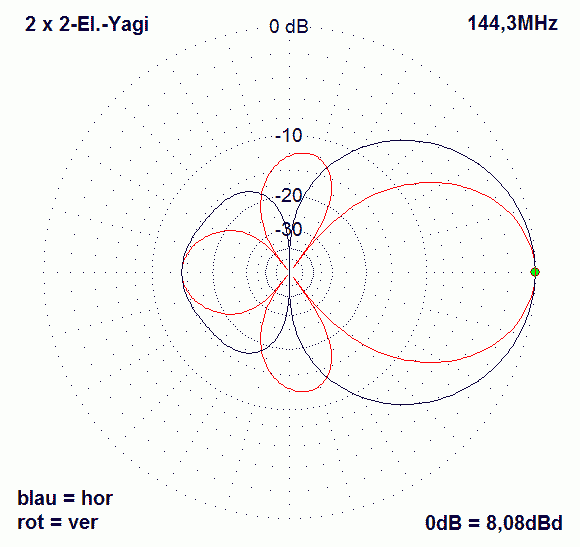

The picture shows the two Yagis mounted on a fishing rod for portable use in JO41WE, Hoher Meißner, 720m high. For stacking the Yagis must have other lengths for the elements! The impedance is influenced by the stacking, therefore new lengths are to be calculated. The stacking distance is exactly 1,30 m for a good matching with the given dimensions. The stacked array 2 over 2 has a gain of 7,8 dBd including the stacking losses. The stacking cable is 2x 3/4-lambda RG59 (2x 1,00 m)
Dimensions for the stacked 2-El.-Yagi
|
