19-Element-28Ohm- DK7ZB-Yagi for 432MHz
|
|

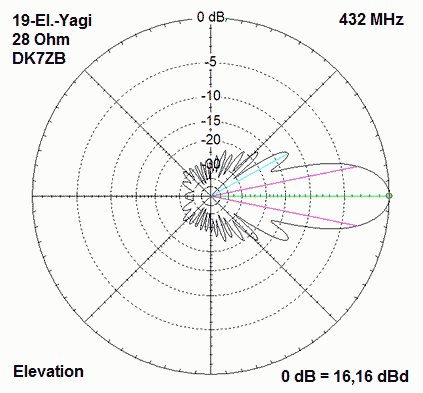

Gain 16,1 dBd F/B > 30dB Stacking vert. 1,80 m, hor 1,85 m |
|

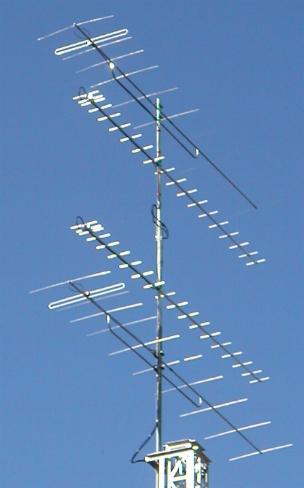

2x19-El. stacked, Yagis built by Wolf, DK1IP Stacking distance 1,80m |
|

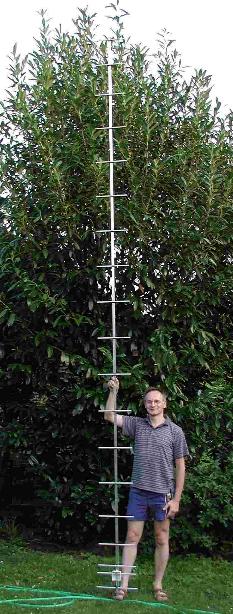

Yagi built by Manfred, DL5BCX
|
Elementlengths updated for more bandwidth, especially for Cross-Yagi-construction (10-May-2010)
Element |
Element-Position |
Element-Length (10mm) |
Element-Length (8mm) |
Ref |
0mm |
336mm |
338mm |
Rad |
115mm |
328mm (12mm) |
|
|
D1 |
175mm |
305mm |
310mm |
|
D2 |
345mm |
290mm |
295mm |
|
D3 |
570mm |
280mm |
286mm |
|
D4 |
840mm |
274mm |
280mm |
|
D5 |
1125mm |
268mm |
274mm |
|
D6 |
1425mm |
266mm |
272mm |
|
D7 |
1725mm |
266mm |
272mm |
|
D8 |
2025mm |
264mm |
270mm |
|
D9 |
2325mm |
264mm |
270mm |
|
D10 |
2625mm |
264mm |
270mm |
|
D11 |
2925mm |
262mm |
268mm |
|
D12 |
3225mm |
258mm |
264mm |
|
D13 |
3525mm |
260mm |
266mm |
|
D14 |
3825mm |
260mm |
266mm |
|
D15 |
4125mm |
258mm |
264mm |
|
D16 |
4395mm |
258mm |
264mm |
|
D17 |
4620mm |
256mm |
262mm |
 |
|
