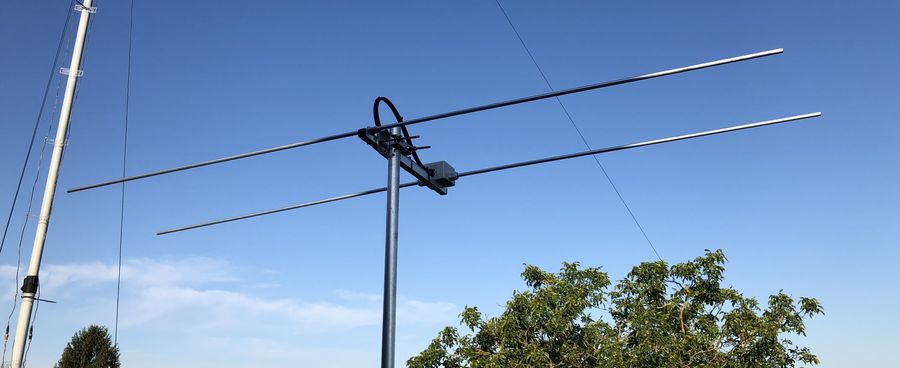

Pictures from Uwe, DH0GSU |
| Details | 2-El.-4m-Yagi | 3-El.-4m-Yagi | 4-El.-4m-Yagi (12.5+50 Ohm) |
| 5-El.-4m-Yagi (28 +50 Ohm) | 6-El.-4m-Yagi | 7-El.-4m-Yagi (28+50 Ohm) | 9-El.-4m-Yagi |
2-El.-28-Ohm-DK7ZB-Yagi, 70MHz
Gain 4.4dBd, F/B 15.5dB, Boom 45cm
|

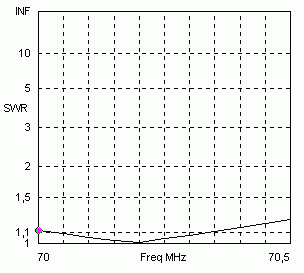

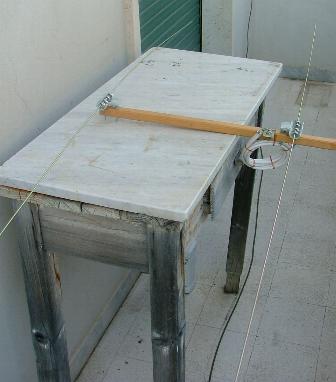

The picture left shows a modified version of the Yagi by Alex, I0SSK More details about his 70MHz-plans on the link |
|
|

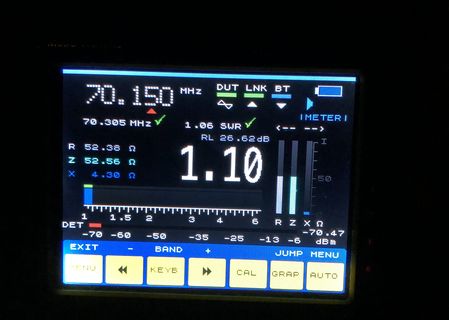

Pictures from Uwe, DH0GSU |
|
Element |
Element-position |
Element-length (10mm) |
Element-length (12mm) |
|
Radiator |
0 mm |
2092 mm |
2088 mm |
|
Director |
430 mm |
1938 mm |
1928 mm |
